Advance GWS49.54 Marine Gearbox Parts

Nov 3, 2022 | GWS, GWS Under 5000kW | 0 comments

The speed input range of the Advance GWS49.54 marine gearbox is 400-1200 RPM, with engine input power from 1130 kW to 3390 kW. the reduction ratio range is 1.97-3.95 the transmission capacity is 2.825 kW/RPM, the rated propeller thrust is 290 KN, and the input shaft is in the train Opposite to the output shaft.

Advance GWS49.54 marine gearbox is composed of transmission shaft, output coupling, input coupling, oil pressure gauge, oil Filter, control system, oil pump and other important components.

Advance GWS49.54 marine gearboxes provides two types of control system which are electric control and pneumatic control for customers to choose. To meet the different requirement of coupling with different engine brand and models, Advance GWS49.54 marine gearboxes available in engine flywheel sizes.

All of our Advance GWS series marine gearbox can provide CCS classification certificate, some of series can provide international classifications with extra costs which mainly including French BV, British LR, American ABS, Japanese NK , Norway DNV-GL, Russia RS, South Korea KR, Italy RINA and other classification societies.

Advantages Of Advance GWS49.54 Marine Gearbox Parts

  • Gearbox novel structure, so that its use becomes very reliable. The excellent design makes the gearbox and engine arrangement more soft and smooth.

  • It can be matched with high-speed diesel engines at home and abroad, and can be arranged in vertical, horizontal and inclination according to the needs of users.

  • The gearbox have adapted to combined design, and all running parts have been carefully designed and machined to the highest standards for less wasted fuel, smooth operation which can be fitted to most engine models.

  • 2-stage deceleration, the input and output are at the same center, and when the running direction is the same, it has the function of reverse clutch deceleration.

  • Professional gearbox specialists and after-sales service, spare parts directly available from stock.

Technical Specifications

Gearbox Model:GWS49.54
Input Speed:400-1200 r / min
Power:N/A
Center Distance:N/A
Trans.Capacity:2.825 kw/r/min
Reduction Ratio:1.97-3.95
Rated Thrust:290 kN
Dimension:N/A
Net Weight:7900 kg
Lead Time:15-30 Working Days
Payment Terms:T/T ,L/C
Advance GWS49.54 Gearbox Video

Coming soon



Search by Part No. or Part Name



Click Kit Name to Check Part List

No.

Parts No.

Description

Qty

Remarks

1GWS49.61 – 05 – 100Oil shroud assembly1\
2GB/T32.1 – 1988Bolt M10×164\
3GB/T343 – 94Wire fuse Φ1.62\
4GWS49.54 – 05 – 001housing1\
5Q20 – 01Plug screw M48×23\
6Q20 – 03AWasher 483\
7GWS49.61 – 05 – 002Cover1\
8GB/T32.1 – 1988Bolt M30×1306\
9GB/T343 – 94Wire fuse Φ2.52\
10GB/T118 – 2000Pin 30×1302\
11GWS49.61 – 05 – 003Front cover1\
12GB/T5783 – 2000Bolt M20×458\
13\Packing 9.5×9.5×4901\
14Q25 – 06Rotation indicator1\
15GB/T827 – 1986Rivet 2×52\
16GWS49.54 – 05 – 002Sealing cover1\
17GB/T5783 – 2000Bolt M20×558\
18GB/T5782 – 2000Bolt M8×402\
19GB/T6170 – 2000Nut M82\
20GB/T117 – 2000Pin 10×1402\
21GWS49.54 – 05 – 003Input rear cover1\
22GB/T5783 – 2000Bolt M16×508\
23Q20 – 01Plug screw M14×1.51\
24Q20 – 03AWasher 141\
25GB/T5783 – 2000Bolt M12×4510\
26GB/T6170 – 2000Nut M1210\
27GB/T117 – 2000Pin 10×302\
28GWS39.46 – 05 – 004Small gland1\
29GB/T5783 – 2000Bolt M10×306\
30GWS39.46 – 05 – 006Spacer bush1\
31GWS49.54 – 05 – 004Sealing cover1\
32GB/T5783 – 2000Bolt M20×458\
33GB/T5783 – 2000Bolt M12×452\
34GB/T6170 – 2000Nut M122\
35GB/T879 – 2000Pin 12×302\
36\Packing 15.9×15.9×9261\
37GWS49.54 – 05 – 005Inlet endcover1\
38GB/T5783 – 2000Bolt M20×558\
39GWC49.54 – 05 – 143Inlet small gland1\
40GB/T5783 – 2000Bolt M8×205\
41SGW30.32 – 06 – 033Inlet sleeve1\
42GB/T5782 – 2000Bolt M16×752\
43GB/T6170 – 2000Nut M162\
44GB/T5783 – 2000Bolt M16×5514\
45GB/T117 – 2000Pin 25×702\
46GB/T5782 – 2000Bolt M24×1902\
47GB/T6170 – 2000Nut M242\
48GB/T5782 – 2000Bolt M24×1204\
49Q25 – 01 – 04Nameplate1\
50GB/T827 – 1986Rivet 3×104\
51GB/T5783 – 2000Bolt M16×254\
52GB/T5782 – 2000Bolt M30×4502\
53GWS49.61 – 05 – 008Inspection cover1\
54GWS49.61 – 05 – 009Paper Gasket2\
55GB/T5783 – 2000Bolt M8×2028\
56Q29 – 06Breathing cap group1\
57Q20 – 03ACopper washer1\
582/0930/0644/Connection plate1GWC – 155
59GB/T770.1 – 1985Socket cap screw M10×554\
60GB/T5782 – 2000Bolt M30×2854\
61GB/T5783 – 2000Bolt M16×456\
62Q25 – 13 – 02AHC emblem mark2\
63GB/T827 – 1986Rivet 3×108\
64GWS49.61 – 05 – 010Inspection cover1\
65GWS49.61 – 05 – 011Paper Gasket1\
66GB/T5783 – 2000Bolt M8×2012\
67GWS49.61 – 05 – 200Inspection group1\
68GWC – 78Oil filler1\
69GWS49.61 – 05 – 300Dipstick assembly1\
70GB/T79 – 2000Screw M24×1004\
71GB/T5782 – 2000Bolt M20×6013\
72GB/T5782 – 2000Bolt M30×1451\
73GB/T5782 – 2000Bolt M30×2301\
74GB/T6170 – 2000Nut M301\
75GB/T877 – 86Pin 16×802\
76GB/T5782 – 2000Bolt M20×8013\
77GB/T6170 – 2000Nut M2013\
78GB/T5782 – 2000Bolt M24×2251\
79GB/T6170 – 2000Nut M241\
80GB/T5782 – 2000Bolt M24×1351\
81GB/T5782 – 2000Bolt M24×1351\
——END——

GWC36

No.

Parts No.

Description

Qty

Remarks

14/0405/1504/0Output shaft gland1GWC49.54 – 221
2GB/T70.1 – 1985Screw M24×706\
3GB/T5859 – 94Bearing 29436E2\
4GB2089 – 80Spring 2.5×12.5×828\
54/0409/0132/0Pan1GWC49.54 – 230
6GB/T283 – 1994bearing NU2481GWC49.54 – 231
7Q20 – 04Snap ring 4401\
84/0400/5061/0Spacer ring1GWC49.54 – 233
9GWS49.54 – 04 – 001/83Output gear1\
104/0400/5080/0Spacer ring1GWC49.54 – 234
11Q20 – 04Snap ring 4801\
12GB/T283 – 1994bearing NU2521\
13GB/T3452.1 – 2005“O”-ring Φ270×61\
14GWC49.54 – 04 – 240TOutput shaft1\
15GWC49.54 – 04 – 241TOutput flange1\
——END——

GWC36

No.

Parts No.

Description

Qty

Remarks

1GB/T3452.1 – 2005“O”-ring 17×2.654\
2GWS49.61 – 01 – 101ASpline shaft1借用 GWS49.61
3GB/T894.1 – 1986Backing ring 502\
4GB/T276 – 1994Bearing 62102\
5300 – 01 – 016Sealing ring2\
6GB/T3452.1 – 2005“O”-ring 100×3.552\
7GWS49.54 – 01 – 101Bearing seat1\
8GWS49.61 – 01 – 102Oil – in sleeve1借用 GWS49.61
——END——

GWC36

No.

Parts No.

Description

Qty

Remarks

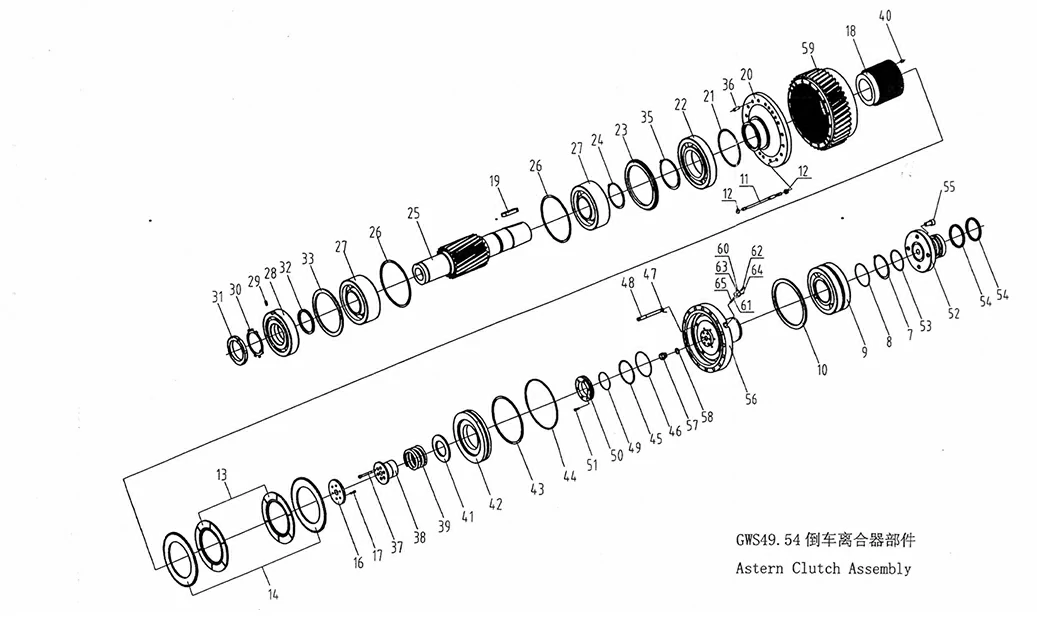

7GB/T894.1 – 86Back ring 1601\
84/0400/3904/0Spacer ring1GWC49.54 – 171
9GB/T288 – 1994Bearing 22332/C3W331\
104/0402/0173/0Regulating ring1GWC49.54 – 173
11GWC49.54 – 02 – 176Stud16\
12DIN6915Nut M1632GWC49.54 – 177
133/0539/0059/2Inner disc10GWC49.54 – 180
143/0530/0047/0Outer disc11GWC49.54 – 181
164/0903/0079/0Gland with hole1GWC49.54 – 194
17GB/T70.1 – 1985Screw M10×206\
182/0335/0169/1Disc carrier1GWC49.54 – 182
19GB/T1096 – 2003Key 36×1251\
202/0582/0949/0Clutch casing flange1GWC49.54 – 204
21Q20 – 04Snap ring for hole 3601\
22GB/T283 – 1994Bearing NU240/C31\
234/0401/3481/0Spacer ring1GWC49.54 – 208
24GB/T894.1 – 86Back ring 1501\
25GWS49.54 – 01 – 003/21Shaft gear Z=211\
26Q20 – 04Snap ring for hole 3201\
27GB/T283 – 1994Bearing NU2330/C32\
28GB/T294 – 1994Bearing QJ330N21\
294/0220/0559/0Pin1GWC49.54 – 218
30GB/T858 – 1988Washer 1501\
31GB/T812 – 1988Nut M150×21\
——END——

GWC36

No.

Parts No.

Description

Qty

Remarks

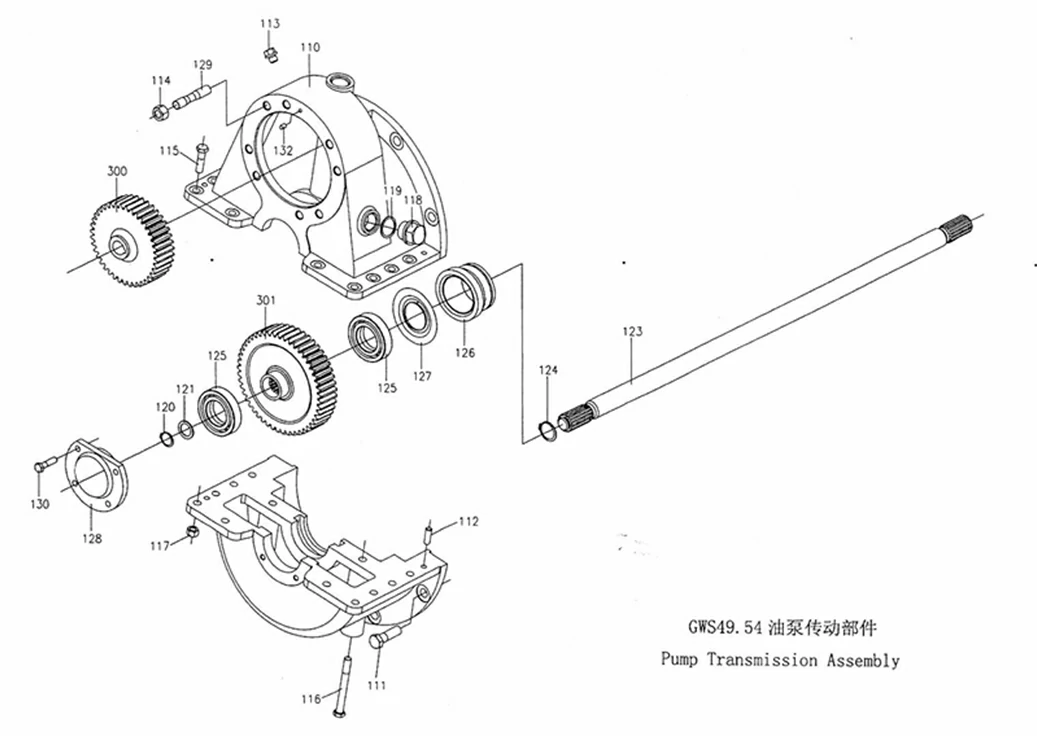

110GWC49.54 – 06 – 110Pump inlet casing1\
111GB/T5782 – 2000Hex. head bolt M16×408\
112GB/T117 – 2000Taper pin A10×302Close the box
113Q20 – 01Plug screw M14×1.51（JB1000 – 77）
114GB/T6170 – 2000Hexagon nut M164\
115GB/T5782 – 2000Hex. head bolt M12×4510Close the box
116GB/T5782 – 2000Hex. head bolt M12×1752Close the box
117GB/T6170 – 2000Hexagon nut M1210Close the box
118Q20 – 01Plug screw M33×21（JB1000 – 77）
119Q20 – 03ACopper washer 331\
120GB/T894.1 – 1986Sprag for shaft Φ251\
12135×25×2 DIN988Washer1\
1233/0250/5012/1Pump transmission shaft1GWC49.54 – 123
124GB/T894.1 – 1986Sprag for shaft Φ341\
125GB/T276 – 1994Bearing 6210250×90×20
1264/0333/0468/0Bushing1GWC49.54 – 126
1274/0985/0664/0Nilos ring1GWC49.54 – 127
1283/0438/0902/1Endcover1GWC49.54 – 128
129GB/T898 – 1988Hex. head bolt M16×554\
130GB/T5782 – 2000Hex. head bolt M10×304\
132Q21 – 14Plug Φ71\
3003/0301/2271/0Pump gear1GWC49.54 – 300
3012/0301/5125/0Pump gear1GWC49.54 – 301
——END——

GWC36

No.

Parts No.

Description

Qty

Remarks

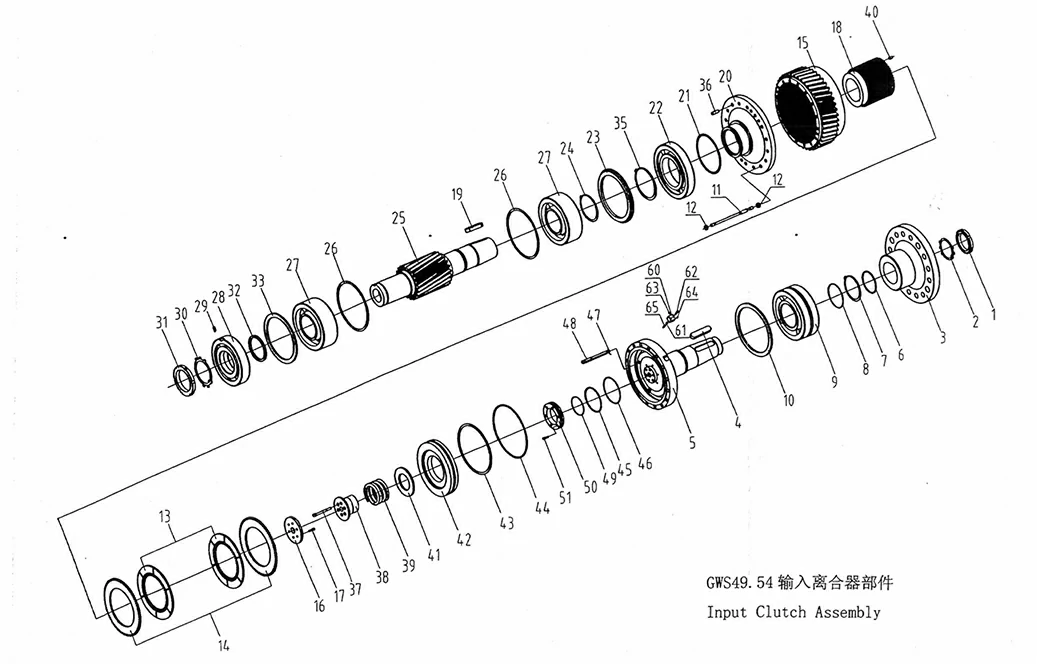

1GB/T812 – 1988Nut M120×21\
2GB/T858 – 1988Washer 1201\
3GWS49.54 – 01 – 001TInput flange1\
4GB/T1096 – 2003Key 36×1601\
5GWS49.54 – 01 – 002Input shaft cylinder1\
6GB1235 – 76“O”-ring 139.2×5.71\
7GB/T894.1 – 86Back ring 1601\
84/0400/3904/0Spacer ring1GWC49.54 – 171
9GB/T288 – 1994Bearing 22332/C3W331\
104/0402/0173/0Regulating ring1GWC49.54 – 173
11GWC49.54 – 02 – 176Stud16\
12DIN6915Nut M1632\
133/0539/0059/2Inner disc10GWC49.54 – 180
143/0530/0047/0Outer disc11GWC49.54 – 181
151/0335/0218/1Clutch housing1GWC49.54 – 178
164/0903/0079/0Gland with hole1GWC49.54 – 194
17GB/T70.1 – 1985Screw M10×206\
182/0335/0169/1Disc carrier1GWC49.54 – 182
19GB/T1096 – 2003Key 36×1251\
202/0582/0949/0Clutch casing flange1GWC49.54 – 204
21Q20 – 04Snap ring for hole 3601\
22GB/T283 – 1994Bearing NU240/C31\
234/0401/3481/0Spacer ring1GWC49.54 – 208
24GB/T894.1 – 86Back ring 1501\
25GWS49.54 – 01 – 003/21Shaft gear Z=211\
26Q20 – 04Snap ring for hole 3201\
27GB/T283 – 1994Bearing NU2330/C32\
28GB/T294 – 1994Bearing QJ330N21\
294/0220/0559/0Pin1GWC49.54 – 218
30GB/T858 – 1988Washer 1501\
31GB/T812 – 1988Nut M150×21\
32GWC49.54 – 02 – 214Spacer1\
334/0401/3482/0Spacer1GWC49.54 – 213
35GB/T894.1 – 86Back ring 2001\
36GB/T120 – 2000Pin A16×502\
37GB/T70.1 – 2000Screw M10×1206\
383/0333/5013/0Spline hushing1GWC49.54 – 190
394/0991/0289/1Spring1GWC49.54 – 189
40Q21 – 41Plug Φ73\
414/0409/0124/0Spring shroud1GWC49.54 – 188
42GWC49.54 – 02 – 183Clutch piston1\
43S52029 – 456Back ring1GWC49.54 – 187
444456“X”-ring1GWC49.54 – 186
45S52029 – 439ABack ring1GWC49.54 – 185
464439A“X”-ring1GWC49.54 – 184
47\Wire fuse Φ2.52\
484/0224/5098/0Astern emergency screw4GWC49.54 – 174
49GB/T3452.1 – 2005“O”-ring 160×3011\
50GWC49.54 – 02 – 239Guide ring1\
51GB/T70.1 – 1985Screw M8×306\
603/0931/0118/0Drain valve body2GWC – 198
614/0903/0079/0Piston2GWC – 199
62GB/T5782 – 2000Bolt M6×404\
63GB/T71 – 1985Screw M6×84\
64GB/T71 – 1985Screw M5×102\
650.5×4×31Spring2\
——END——

GWC36

No.

Parts No.

Description

Qty

Remarks

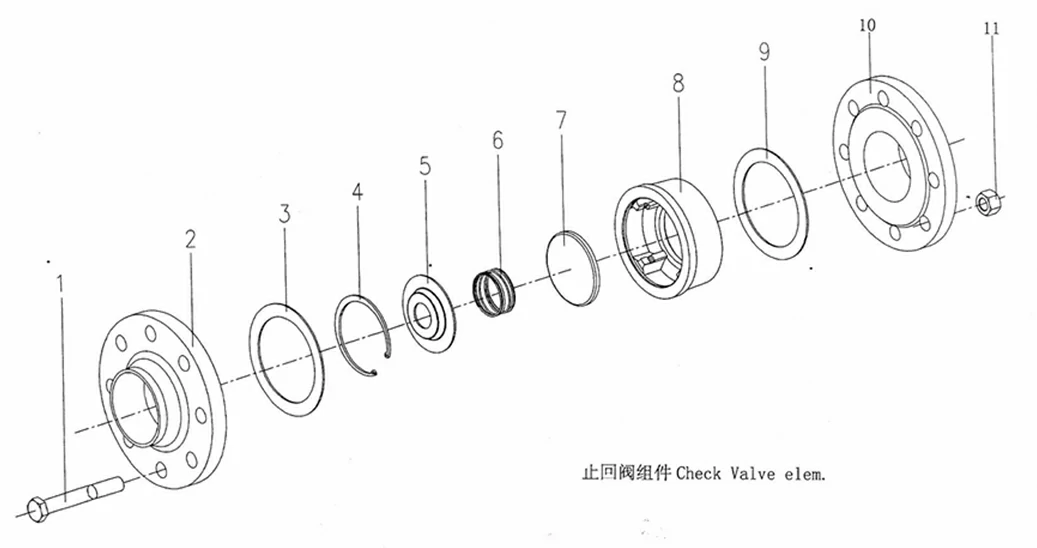

1GB21 – 76Hex. head bolt M6×1108\
2RK46 – NW80 – 06Till flange1\
3RK46 – NW80 – 01Gasket1\
4GB893 – 76Sprag for hole 901\
5RK46 – NW80 – 03Spring disc1\
6RK46 – NW80 – 05Till valve spring1\
7RK46 – NW80 – 04Valve1\
8RK46 – NW80 – 02Till return valve1\
9RK46 – NW80 – 07Washer1\
10DIN2633Flange C80×891\
11GB51 – 76Nut M168\
——END——

GWC36

No.

Parts No.

Description

Qty

Remarks

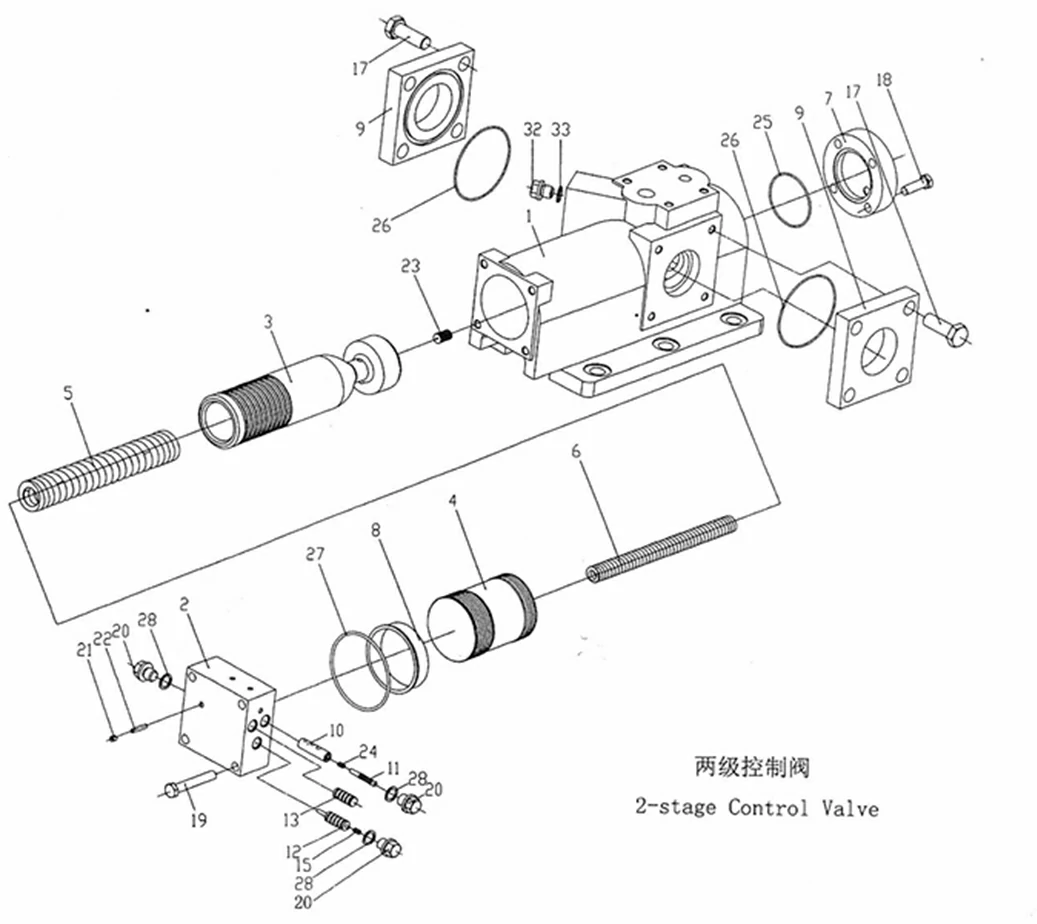

1GWS45.49 – 152 – 1Valve1\
23/0901/0046/0Front valve1GWC49.54 – 152 – 2
33/0903/0076/0Piston1GWC49.54 – 152 – 3
44/0903/0075/0Piston1GWC49.54 – 152 – 4
54/0991/0293/1(outer)Pressure spring1GWC49.54 – 152 – 5
64/0991/0294/1(inner)Pressure spring1GWC49.54 – 152 – 6
73/0439/0443/0Cover1GWC49.54 – 152 – 7
84/0401/3589/2Spacer1GWC49.54 – 152 – 8
94/0583/2027/0Flange cover2GWC49.54 – 152 – 9
104/0901/0040/1Valve1GWC49.54 – 152 – 10
114/0224/1031/2Mix screw1GWC49.54 – 152 – 11
124/0903/0052/0Feeding valve1GWC49.54 – 152 – 12
134/0903/0053/0Screw plug1GWC49.54 – 152 – 13
15DIN2098 0.8×10×30Pressure spring1\
17GB/T5783 – 2000Hex. Head bolt M16×488\
18GB/T5783 – 2000Hex. Head bolt M10×354\
19GB/T5783 – 2000Hex. Head bolt M10×654\
20Q20 – 01Screw plug3\
21GB/T71 – 85Setting screw4\
22GB/T119 – 2000Pin1\
23LSN6248021Screw plug1\
24LSN60239Screw thread piece1\
25GB/T3452.1 – 2005“O”-ring Φ62×21\
26GB/T3452.1 – 2005“O”-ring Φ90×42\
27GB/T3452.1 – 2005“O”-ring Φ85×31\
28Q20 – 03Copper washer 143\
32Q20 – 01Screw plug M14×1.51\
33Q20 – 03Copper washer 221\
——END——

GWC36

No.

Parts No.

Description

Qty

Remarks

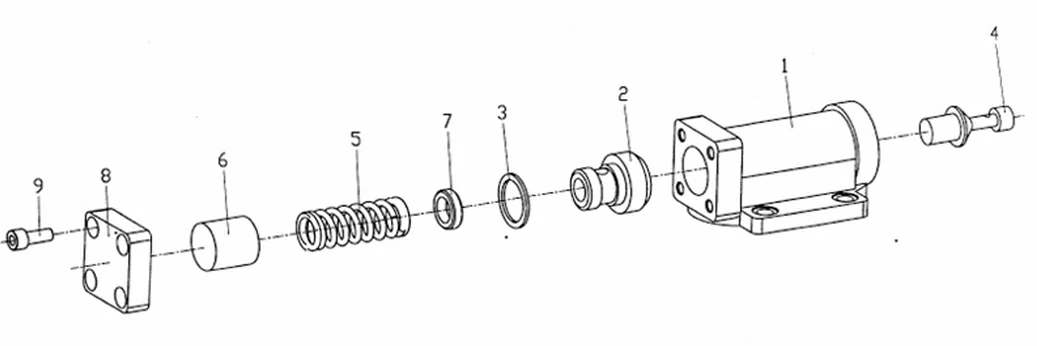

1P – 25B – 01Valve seat1\
2P – 25B – 02Valve sleeve1\
3Q20 – 03ACopper washer 271\
4P – 25B – 03Valve plug1\
5Q06 – 01A – 14Spring1\
6Q06 – 01A – 13Control piston1\
7P – 25B – 04Adjusting gasket1\
8P – 25B – 05Valve end cover1\
9GB/T70.1 – 1985Screw M8×204\
——END——

GWC36

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.

The picture of Sale Manual showing the accessories and scopes of supply.

Engine Sale Manual

The picture of Installation Drawing showing the accessories and scopes of supply.

Installation Drawing

The picture of Installation Manual showing the accessories and scopes of supply.

Installation Manual

The picture of Operation Manual showing the accessories and scopes of supply.

Operation Manual

The picture of Engine Parts Catalogue showing the accessories and scopes of supply.

Parts Catalogue

The picture of Test Report and Certifcate showing the accessories and scopes of supply.

Report & Certifcate

Tags:

Other Models in this Series

Global Activity

SinoMac’s Presence at the 2025 Kazakhstan International Mining, Exploration & Coal Processing Exhibition

As one of the most influential mining exhibitions in Central Asia, the Kazakhstan International Mining, Exploration and Coal Processing Exhibition (Mining Week) was grandly held in Karaganda, Kazakhstan from June 24 to 26, 2025. Focused on the entire mining process, this exhibition showcased a concentrated display of technological innovations, equipment upgrades and green solutions-catering to the industry’s full-chain demands and serving as a premier platform for global mining players to showcase technologies, exchange experience and explore partnerships.

SinoMac Makes Its Mark at Global Maritime Event—A Look Back at Marintec China 2025

Hailed as the "Olympics" of the global maritime industry, Marintec China 2025 took place from December 2 to 5, 2025, at the Shanghai New International Expo Centre. Centered on the theme “Innovation and Cooperation for Sustainable Maritime Development,” this edition showcased cutting-edge technologies, innovative achievements, and sustainable pathways across the global maritime sector. It attracted over 2,000 exhibiting companies and tens of thousands of professional visitors from more than 100 countries and regions, highlighting China's pivotal influence and open-cooperative stance within the global maritime industry.

Review of SeaMac 2025 Vietnam International Maritime Ship Exhibition:Deeply connecting with the cutting-edge of the global maritime industry

Recently, the highly anticipated 2025 Vietnam International Maritime and Shipbuilding Exhibition concluded successfully at the Adora Convention Center in Ho Chi Minh City. As Vietnam’s largest and most specialized event in shipbuilding and maritime technology, the exhibition gathered top shipbuilders, maritime service providers, and marine equipment manufacturers from around the world. SeaMac actively participated, comprehensively showcasing its innovative achievements and integrated capabilities in ship solutions and high-efficiency propulsion systems. The company engaged in extensive and in-depth exchanges with industry partners, achieving fruitful outcomes from its participation.

Attending a Global Maritime Extravaganza, SinoMac will be showcasing at Marintec China 2025

Marintec China 2025, hailed as a "global trendsetter for the maritime industry," will be held from December 2nd to 5th, 2025, at the Shanghai New International Expo Centre. The theme of this year's exhibition is "Innovation and Cooperation for Sustainable Development of the Maritime Industry," and the theme of the High-Level Maritime Forum is "Intelligent Navigation, Green Coexistence, Integration, and Innovation," reflecting expectations for the industry's future. Global Maritime, SinoMac SinoMac, Global Maritime

Review SAUDI RAIL 2025 ：SinoMac Exhibition Highlights

SinoMac successfully participated in SAUDI RAIL 2025, the annual industry event held in Riyadh, Saudi Arabia, from October 19th to 20th, 2025. At the exhibition, SinoMac showcased its strong capabilities in railway technology, innovative solutions, and full lifecycle services, and engaged in in-depth exchanges with industry partners, customers, and experts from around the world to jointly explore future opportunities for rail transit development in the Middle East. Global Exhibition, SinoMac SinoMac, Global Exhibition

Deeply Cultivate the International Market, Empowering the Future of Rail ——Focus [PRO//Motion Expo 2025]: SinoMac Exhibition Highlights Review

From August 28 to 31, 2025, the highly anticipated PRO//Motion Expo 2025 (Russian International Railway and Motion Exhibition) grandly opened at the Russian Railway Museum in St. Petersburg. PRO//Motion Expo is currently the largest railway and transportation exhibition in Russia and the Commonwealth of Independent States (CIS), attracting extensive participation from railway companies from CIS countries and around the world. Over the four-day exhibition, exhibitors showcased cutting-edge technologies and innovative achievements in the railway transportation industry.

Focus on marine industry event, start a new chapter of marine development together–SinoMac Group Limited to exhibit at Marine & Offshore Vietnam 2025

Against the backdrop of the booming development of the global shipping and maritime industry, Vietnam International Maritime Expo 2025 (Marine & Offshore Vietnam) will be held in Ho Chi Minh City, Vietnam from 19th to 21st November. As one of the most influential maritime events in Southeast Asia, this exhibition brings together top enterprises and innovations in the fields of global shipbuilding, offshore engineering, port equipment, new energy ship technology, etc., and provides an international platform for industry colleagues to exchange and co-operate and explore the market.

SinoMac Group Limited made its debut at the 2025 Indonesia International Construction Machinery, Mining and Concrete Exhibition.

The International Exhibition of Engineering Machinery, Mining, and Concrete (Mining Indonesia) will be held in Jakarta, Indonesia, from September 17 to 20, 2025. As one of the most influential mining exhibitions in Southeast Asia, Mining Indonesia provides a professional platform for enterprises, experts, and practitioners in the global mining sector to showcase cutting-edge technologies, exchange industry insights, and explore collaborative opportunities.

2025 Russian International Railway and Rail Transit Exhibition: SinoMac invites you to join the industry feast

From August 28 to 31, 2025, the highly anticipated biennial Russian International Railway and Rail Transit Exhibition (PRO/Motion Expo) will be held in St. Petersburg. The exhibition is the largest and most professional railway and transportation exhibition in Eastern Europe and Central Asia. PRO/Motion Expo brings together industry elites, corporate representatives and professional visitors from all over the world to witness the latest development achievements and cutting-edge trends in the railway and rail transit industry. Here, many internationally renowned companies will showcase their latest technologies, products and solutions, covering railway infrastructure construction, train manufacturing, communication and signal systems, intelligent transportation and other fields. From advanced train design and manufacturing technology to efficient railway operation and management solutions; from innovative rail material research and development to intelligent railway communication and control systems, various cutting-edge technologies and innovative achievements will be presented one by one, bringing a wonderful industry feast to the participants.

SinoMac actively participated in the International Railway and Rail Transit Exhibition in Berlin, Germany, to explore the new future of the industry

From September 22 to 25, 2026, the highly anticipated biennial Berlin International Railway and Rail Transit Exhibition (InnoTrans Berlin) opened grandly in Berlin, Germany. As the largest and most influential event in the global railway and rail transit field, InnoTrans Berlin brings together industry elites, corporate representatives and professional visitors from all over the world to witness the latest development achievements and cutting-edge trends in the railway and rail transit industry. The exhibition covers a number of key areas such as bridges and tunnels, public transportation, and comprehensively displays innovative technologies, advanced equipment and comprehensive solutions in the railway and rail transit industry. From infrastructure construction to operation management, from vehicle manufacturing to intelligent system applications, the exhibition content is rich and diverse, providing participants inside and outside the industry with an excellent platform for a comprehensive understanding of industry dynamics, exchanges and cooperation.

WhatsApp Online logo

Sales Team

Marine - SeaMacWhatApp-Icon

Marine Parts - PartMacWhatApp-Icon

EV System - EVMacWhatApp-Icon

Sales Manager - Mrs. Wendy Fu

Sales Director - Mr. Jasper Lee WhatApp-Icon

Shipping Service

Contact EMAC Now!

Pin It on Pinterest
