Advance 300 Marine Gearbox Parts

Oct 26, 2022 | 300 Series, 300 500-1000kW | 0 comments

The speed input range of the Advance 300 marine gearbox is 750-2500 RPM, with engine input power from 262.5 kW to 539.7 kW. the center distance is 264 mm, the reduction ratio range is 1.87-5.44, the transmission capacity range is 0.125-0.257 kW/RPM, the rated propeller thrust is 50 KN, and the input shaft is in the train Opposite to the output shaft.

Advance 300 marine gearbox is composed of transmission shaft, output coupling, input coupling, oil pressure gauge, oil Filter, control system, oil pump and other important components. Advance 300 marine gearboxes provides three types of control system which are push-pull flexible shaft, electric control and pneumatic control for customers to choose. To meet the different requirement of coupling with different engine brand and models, Advance 300 marine gearboxes provide different SAE size coupling and housing including SAE 0 1, flywheel SAE 18 16 14 is available……

All of our Advance 300 series marine gearbox can provide CCS classification certificate, some of series can provide international classifications with extra costs which mainly including French BV, British LR, American ABS, Japanese NK , Norway DNV-GL, Russia RS, South Korea KR, Italy RINA and other classification societies.

After over 60 years accumulation, Advance growth into a world-recoginized marine gearbox brand, which has been exported to over 50 countries and regions. As official marine power pack packager of Advance, SeaMac is the sub-brand of EMAC that committed to providing reliable premium propulsion system and power system for all kinds of ships around the world, SeaMac is a sub-brand of EMAC group that focused on maritime application.

SeaMac’s ranges of products mainly inclduing marine main engine, marine gearbox, marine propellers, marine control lever system, marine auxiliary engine, marine generator set and emergency generator set.

For more details about Advance gearbox and SeaMac’s products and services, you are welcome to visit our homepage: www.seamac.com or contact our sales team to get latest accurate information.

Advantages Of Advance 300 Marine Gearbox Parts

Advanced design and sophisticated manufacturing to adapt to various harsh working conditions! High-strength parts, strong ability to work under heavy loads.
Cylinder block and cylinder head adopt integrated design. The occurrence of engine water leakage and oil leakage is prevented, and the parts are about 40% less than other similar engines. The failure rate is greatly reduced.
Using forged steel camshaft and crankshaft, high-strength cylinder block design, multiple parts cast on the cylinder block, high rigidity, high pressure resistance, good reliability, and longer service life.
The cylinder bore adopts a platform mesh honing design. The perfect geometric structure effectively prevents oil leakage, and the use of advanced technology such as new piston ring components and gasket crimping and molding reduces oil loss.
The five key systems of the electronically controlled engine are all developed by DCEC, and have been applied and verified in different fields around the world to ensure the excellent economy and reliability of the product.
By optimizing the control strategy and combining with the actual operating conditions of the equipment, the fuel economy can be further improved.

Technical Specifications

Gearbox Model:	300
Input Speed:	750-2500 RPM
Power:	539.7 kW @ 2100 RPM
Center Distance:	264 mm
Trans.Capacity:	0.257-0.125 kW/RPM
Reduction Ratio:	1.87-5.44
Rated Thrust:	50 kN
Dimension:	786 mm * 930 mm * 864 mm
Net Weight:	740 kg
Lead Time:	15-30 Working Days
Payment Terms:	T/T ,L/C

<span>

</span>

Advance T300 Medium-Low Duty Marine Gearbox

Browser not compatible.

Search by Part No. or Part Name

Click Kit Name to Check Part List

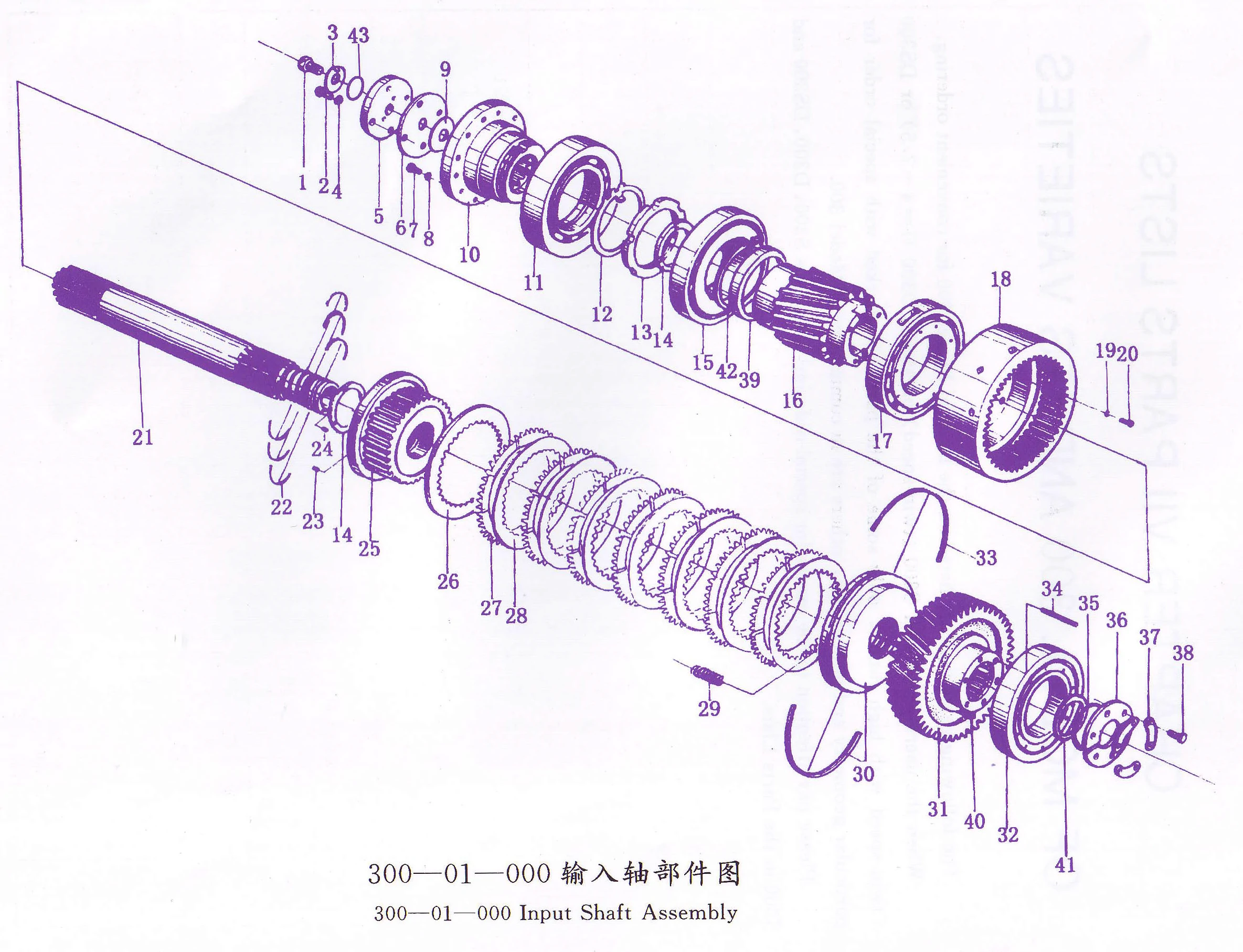

NO.	Part Name	Part No.	Qty.	Remarks
1	Bolt	300—01—026	1	/
2	Bolt	M12×25 GB21—76	4	/
3	Lock washer	300—01—025	1	/
4	Spring washer	12 GB93—76	4	/
5	Plate	300—01—001A	1	/
6	Gasket	300—01—021	1	/
7	Bolt	M14×50 GB21—76	12	/
8	Spring washer	14 GB93—76	12	/
9	Adjusting ring	300—01—002	1	i=6.5~7.5 For i=6.5~7.5
10	Coupling bracket	D300—01A—002	1	i=6.5~7.5 For i=6.5~7.5
11	Coupling bracket	300—01—003	1	i=6.5~7.5 For i=6.5~7.5
12	Coupling bracket	D300—01A—003A	1	i=6.5~7.5 For i=6.5~7.5
13	Bearing	176222 GB294—64	1	/
14	Lock washer	105 GB858—76	1	/
15	Nut	300—01—007	1	/
16	Thrust ring	300—01—004	2	For i=6.5~7.5,Qty.1
17	Thrust ring	MB270—01—015	2	/
18	Bearing	42222 GB283—64	1	/
19	Pinion	300—01—005/1.87	1	mn = 6 Z = 30
20	Pinion	300—01—005/2	1	mn = 6 Z = 28
21	Pinion	300—01—005/2.5	1	mn = 6 Z = 24
22	Pinion	300—01—005/3A	1	mn = 6 Z = 21
23	Pinion	300—01—005/3.53	1	mn = 6 Z = 19
24	Pinion	300—01—005/4A	1	mn = 5 Z = 20
25	Pinion	300—01—005/2.23	1	mn = 6 Z = 26( For S300)
26	Pinion	300—01—005/2.36	1	mn = 6 Z = 25( For S300)
27	Pinion	D300—01A—001/4	1	mn = 6 Z = 23 For D300A
28	Pinion	D300—01A—001/4.5A	1	mn = 6 Z = 21For D300A
29	Pinion	D300—01—001/5A	1	mn = 6 Z = 19For D300A
30	Pinion	D300—01A—001/5.5A	1	mn = 5 Z = 21For D300A
31	Pinion	D300—01—001/6	1	mn = 5 Z = 20For D300A
32	Pinion	D300—01A—001/6.5	1	mn = 5 Z = 18For D300A
33	Pinion	D300—01A—001/7	1	mn = 5 Z = 17For D300A
34	Pinion	D300—01A—001/7.5	1	mn = 5 Z = 16For D300A
35	Bearing	2222GB283—63	1	/
36	Bearing spacer	300-01-023	1	For 300i=4:1
37	Clutch housing	300—01—006	1	/
38	Clutch housing	D300—01A—004	1	For i=6.5~7.5
39	Spring washer	10GB93—73	4	/
40	Socket head cap screw	M10×25 GB70—76	4	/
41	Input shaft	300—01—102A	1	/
42	Input shaft	D300—01A—101B	1	For i=6.5~7.5
43	Sealing	300—01—016	3	/
44	Plug	Q21—14	3	/
45	Plug	Q21—38 φ10	1	/
46	Plug	Q21—45 φ10.2	1	/
47	Clutch bracket	300—01—101	1	/
48	Thrust Plate	300—01—008	1	/
49	External disc	300—01—009A	7	/
50	Internal disc	300—01—010	7	/
51	Return spring	300—01—013A	9	/
52	Piston	300—01—011A	1	/
53	Gear	300—01—019B	1	/
54	Bearing	42221 GB283—81	1	/
55	Piston ring	300—01—012	1	/
56	Emergency pin	300—01—020	3	With gearbox
57	“O”ring	300—01—014	2	For i=6.5~7.5,Qty.1
58	“O”ring	42×3.5 GB1235—76	1	For i=6.5~7.5
59	Positioning plate	300—01—015	2	/
60	Safety piece	300—01—018	3	/
61	Bolt	M10×20 GB21—76	6	/
62	Bearing bush	D300—01A—005	1	For i=6.5~7.5,added
63	Plug	Q21—39 φ5	2	/
64	Ring	300—01—022	1	/
65	Spacer	110 GB894—76	2	For i=6.5~7.5,added
66	“O”ring	GB/T3452.1—2005	1	21.2×2.65
——END——

NO.	Part Name	Part No.	Qty.	Remarks
1	Bolt	“M12×25 GB21—76 M12×30 GB21—76 – 8.8”	4	For i=6.5~7.5,Qty.4
2	Bolt	M20×45 GB21—76	1	For i=6.5~7.5
3	Spring washer	12 GB93—76	8	For i=6.5~7.5,Qty.4
4	Spring washer	20 GB856—76	1	For i=6.5~7.5
5	End plate	300—02—002	1	/
6	End plate	D300—02A—001	1	For i=6.5~7.5
7	Adjusting ring	300—02—001	1	/
8	Adjusting ring	D300—01A—002	1	For i=6.5~7.5
9	Bearing	176222 GB294—64	1	/
10	Bearing seat	300—02—003	1	/
11	Bearing seat	D300—02A—002	1	For i=6.5~7.5
12	Thrust plate	300—01—004	2	For i=6.5~7.5,Qty.1
13	Thrust plate	MB270—01—015	1	For i=6.5~7.5
14	Bearing	42222 GB283—64	1	/
15	Spacer	110 GB894—76	2	For i=6.5~7.5,added
16	Bearingbush	D300—01A—005	1	For i=6.5~7.5,added
17	Pinion	See pictures for details	1	/
18	Bearing	2222 GB283—64	1	/
19	Retainer	300—01—023	1	For 300i=4：1
20	Clutch housing	300-01-006	1	/
21	Clutch housing	D300—01A—004	1	For i=6.5~7.5
22	Washer	10 GB93—73	4	/
23	Bolt	M10×25 GB70—76	4	/
24	Shaft	D300—02A—101B	1	For i=6.5~7.5
25	Shaft	300—02—101A	1	/
26	Sealing	300—01—016	3	/
27	Clutch bracket	300—01—101	1	/
28	Thrust plate	300—01—008	1	/
29	Externa ldise	300—01—009A	7	/
30	Internal	300—01—010	7	/
31	Piston ring	300—01—012	1	/
32	Gear	300—02—004B	1	/
33	Bearing	42221 GB283—64	1	/
34	Positioning plate	300—01—015	2	/
35	Safety piece	300—01—018	3	/
36	Bolt	M10×20 GB21—76	6	/
37	P.T.O.shaft	300—02x—101A	1	Special order
38	Plug	Q21—38 φ10	1	/
39	Plug	Q21—14 φ7	4	/
40	Return spring	300—01—013A	9	/
41	Piston	300—01—011A	1	/
42	Plug	Q21—39	2	/
43	Ring	300—01—022	1	/
44	“O”ring	300—01—014	1	/
——END——

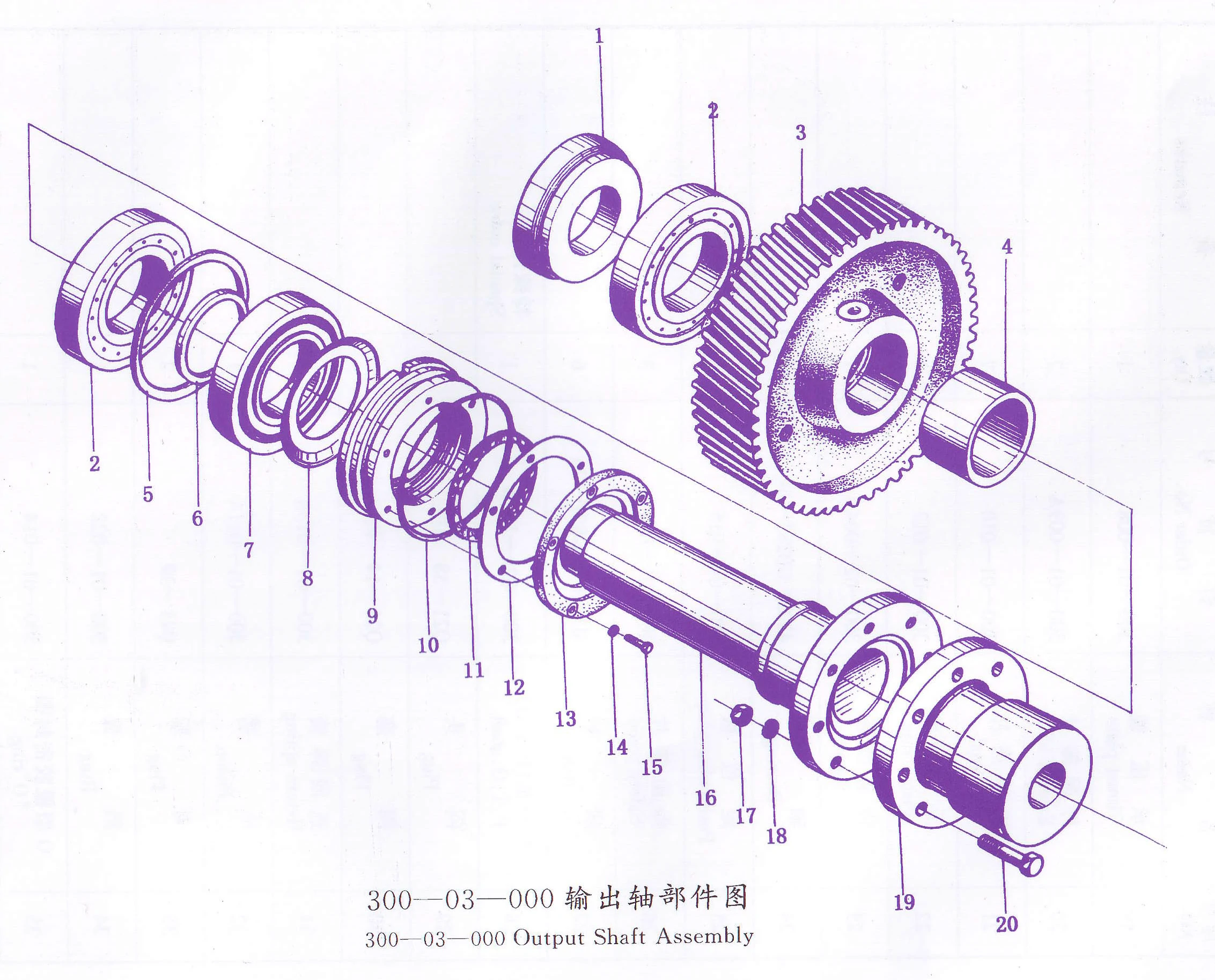

NO.	Part Name	Part No.	Qty.	Remarks
1	Bearing	9069418 GB303—64	1	/
2	Bearing	42222 GB283—64	2	/
3	Bull wheel	See pictures for details	1	/
4	Spacer	300—03—002	1	/
5	Positioning spacer	300—03—003	1	/
6	Bearing spacer	300—03—004	1	/
7	Bearing	46222 GB292—64	1	/
8	Oil baffle plate	300—03—005	1	/
9	Sealing bush	300—03—006A	1	/
10	“O”ring	200×5.7 GB1235—76	1	/
11	Packing	F8×430 YS250	2	/
12	Adjust the pad paper	300—03—010	1	Use when necessary
13	Plate	300—03—009	1	/
14	Spring washer	8 GB93—76	6	/
15	Bolt	M8×25 GB21—76	6	/
16	Output shaft	300—03—007	1	/
17	Nut	M20 GB51—76	8	/
18	Spring washer	20 GB93—76	8	/
19	Coupling	300—03—008X1	1	For 300,S300,Special order
20	Bolt	M20×85 GB27—76	8	/
——END——

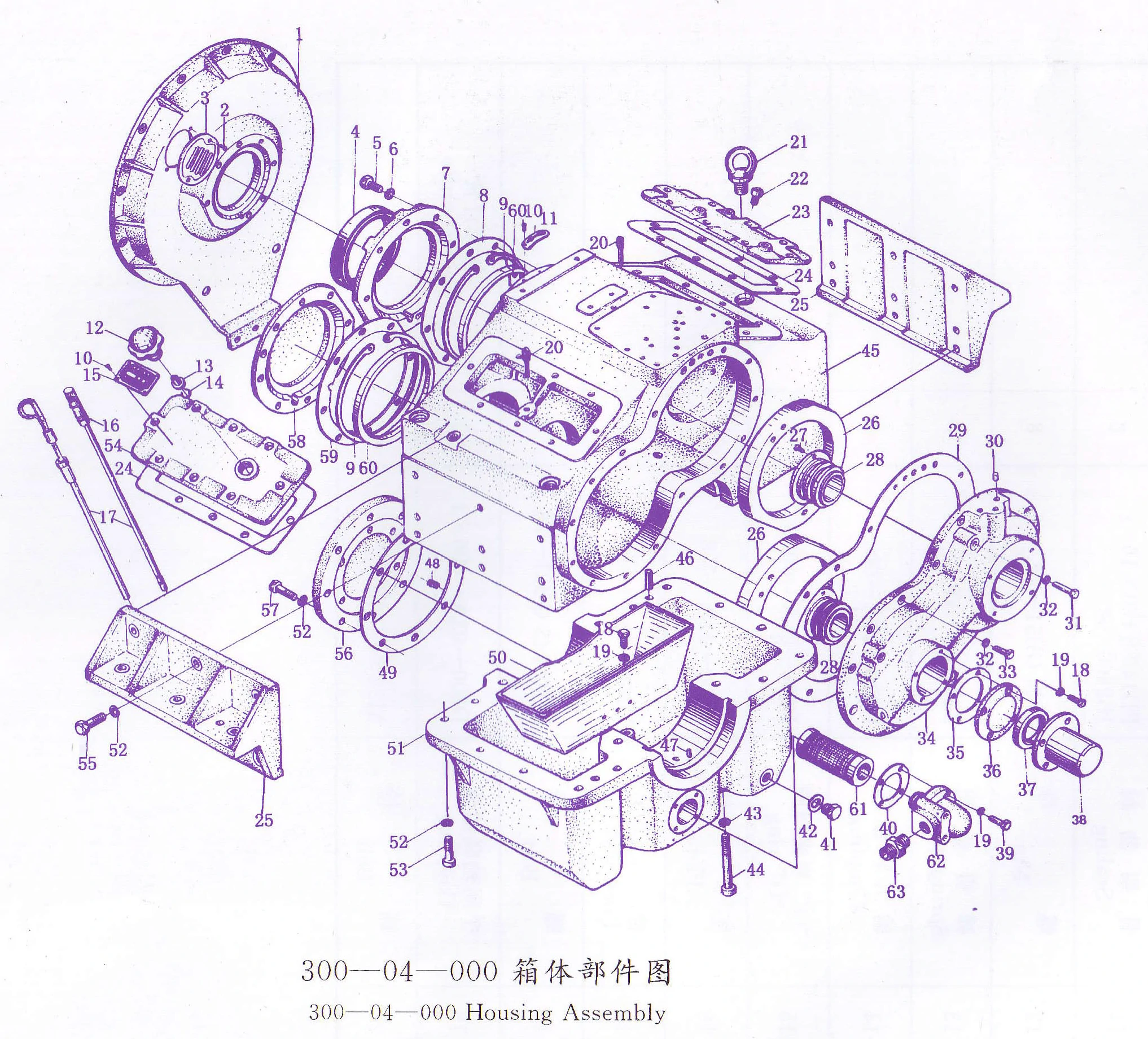

NO.	Part Name	Part No.	Qty.	Remarks
1	Bell housing	300—04—006X₁A	1	For 12V135 Spe.order For 300
2	Bell housing	300—04—006X₂	1	For No.0Spe.order For 300
3	Bell housing	300—04—006X₃	1	E For No.1 Spe.order For 300
4	Bell housing	D300—04—005X₁	1	For 12V135 Spe.order For D300A
5	Bell housing	D300—04—005X₂	1	For No.0 Spe.order D300A
6	Bell housing	D300—04—005X₃	1	For No.1 Spe.order D300A
7	Bolt	M6×10 GB67—76	2	Spe.order for bell housing
8	Cover	1601—0018	1	/
9	Sealing	PG125×160×15 HG4—692—67	1	/
10	Bolt	M12×35 GB21—76	16	/
11	Spring washer	12 GB93—76	16	/
12	Bearing cover	300—04—006	1	/
13	Gasket	300—04—007	1	/
14	Spacer	200 GB893—76	2	/
15	Rivet	2×6 GB827—76	6	/
16	Rotation arrow	7501—012	1	/
17	Breather	Q29—06	1	/
18	Oil shield	Q29—05	1	/
19	Spacer	Q29—04	1	/
20	Name plate	Q25—01—01	1	/
21	“O”ring	16×2.4 GB1235—76	4	5 Pcs for S300,DS300
22	Dipstick element	Q27—01—000 500×450	1	For 300,S300
23	Dipstick element	300—04—300	1	For 300,S300 2:1 speed ratio
24	Dipstick element	D300—04—200	1	For D300A,DS300
25	Bolt	M8×16 GB21—76	4	/
26	Spring washer	8 GB93—76	12	/
27	Special screw	300—04—018	2	3 Pcs for S300,DS300
28	Bolt	M20 GB825—76	3	/
29	Socket head cap screw	M8×16 GB70—76	16	/
30	Upper cover	300—04—019A	1	/
31	Gasket	300—04—002	2	/
32	Bracket	300—04—005	2	For 300,S300
33	Bracket	JD300—04—003	2	For D300A,DS300
34	Bearing bush	300—04—010	2	/
35	Input bearing bush	S300—04—003	1	For S300,DS300
36	Screw	M6×14 GB68—76	2	3 Pcs for S300,DS300
37	Distributor	300—04—009A	2	/
38	Gasket	300—04—004	1	For 300
39	Gasket	S300—04—002	1	For S300
40	Gasket	D300—04—002	1	For D300A,DS300
41	Plug	Q21—38	7	10 Pcs for S300,DS300
42	Bolt	M10×70 GB21—76	4	6 Pcs for S300,DS300
43	Spring washer	10 GB93—76	19	30 Pcs for S300,DS300
44	Bolt	M10×30 GB21—76	15	26 Pcs for S300,DS300
45	Rear end cover	300—04—003	1	For 300
46	Rear end cover	S300—04—001	1	For S300
47	Rear end cover	D300—04—001	1	For D300A,DS300
48	Gasket	300—04—020	1	/
49	Cover	300—04—015	1	/
50	Sealing	PD50×70×12 HG4—492—67	1	Spe.order for P.T.O.
51	Protective cap	300—02X—003	1	Spe.order for P.T.O.
52	Bolt	M8×25 GB21—76	6	/
53	Bolt	M8×60 GB70—76	2	/
54	Coarse filter gasket	300—04—204	1	/
55	Drain plug	M22×1.5 Q21—15	1	/
56	Copper washer	22 Q20—03	1	/
57	Spring washer	20 GB93—76	4	/
58	Bolt	M20×120 GB21—76	4	/
59	Upper housing	300—04—102B	1	For 300
60	Upper housing	S300—04—101	1	For S300
61	Upper housing	D300—04—101	1	For D300A,DS300
62	Taper pin	12×50 GB118—76	2	/
63	Pin	10jc×16 GB119—76	2	/
64	Spring	2×15×19 JB272—60	6	/
65	Gasket	300—04—013	1	/
66	Shroud	300—04—011	1	For 300,S300
67	Shroud	D300—04—004	1	For D300A,DS300
68	Lower housing	300—04—101A	1	For 300,S300
69	Lower housing	D300—04—102A	1	For D300A,DS300
70	Spring washer	16 GB93—76	36	38 Pcs for D300A,DS300
71	Bolt	M16×55 GB21—76	12	16 Pcs for D300A,DS300
72	Upper cover	300—04—001A	1	/
73	Bolt	M16×55 GB21—76	16	18 Pcs for D300A,DS300
74	End cover	300—04—012	1	/
75	Bolt	M16×45 GB21—76	8	/
76	Gasket	300—04—016	1	/
77	Gasket	300—04—017	1	/
78	Bearing spacer	D300—04—006	2	/
79	Filter	300—04—202	1	/
80	Filter flange	300—04—205A	1	/
81	Connector	300—04—207	1	/
——END——

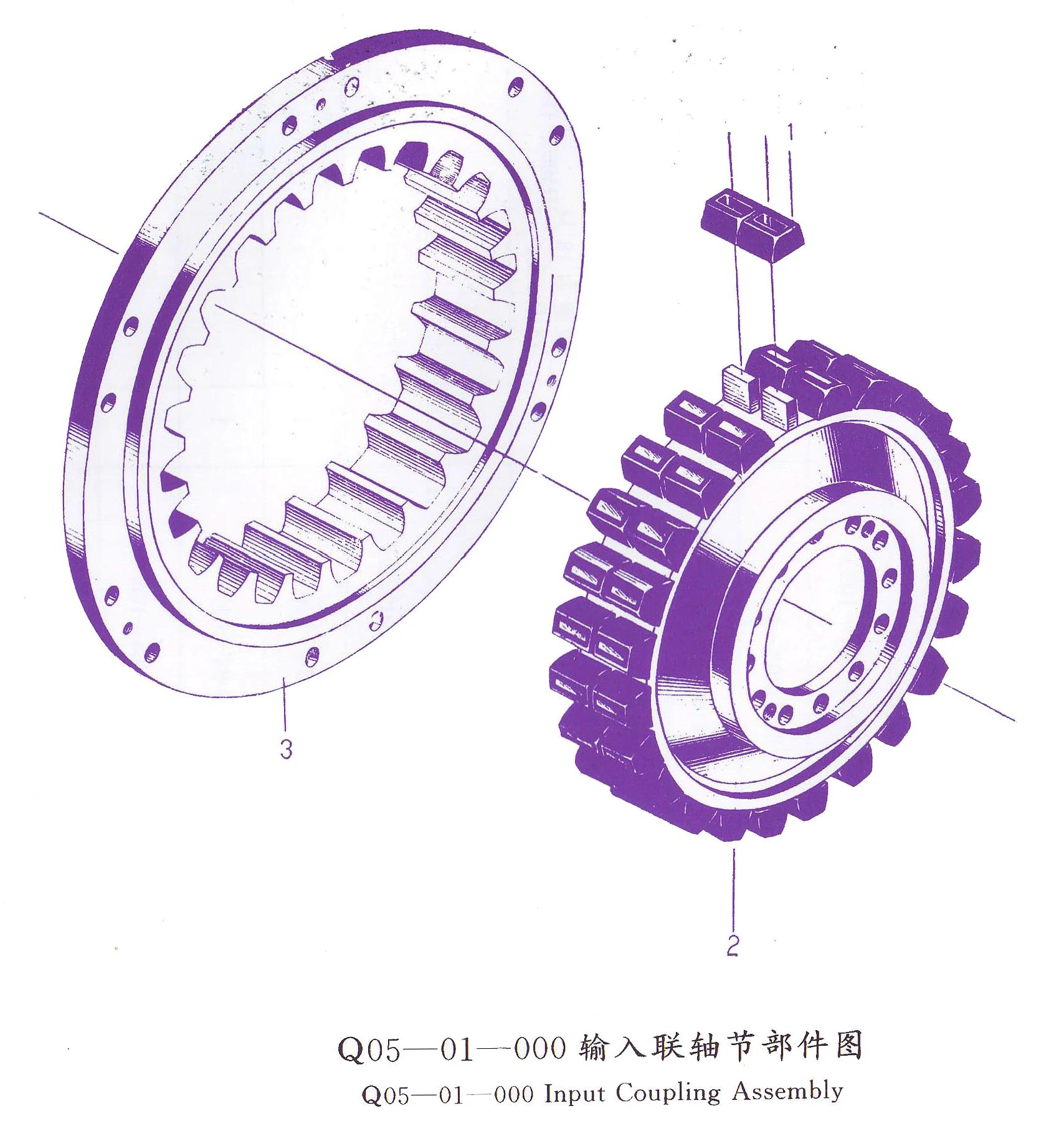

NO.	Part Name	Part No.	Qty.	Remarks
1	Toothed – rubber block	Q26—06—02	48	/
2	External toothed annulus	Q05—01—02A	1	/
3	Internal toothed annulus	Q05—01—03	1	For 12V150, 6160, 6180 flywheel
4	Internal toothed annulus	Q05—01—05	1	For SAE NO.14 flywheel 1# bell housing
5	Internal toothed annulus	Q05—01—05X1	1	For SAE NO.14 flywheel 0# bell housing
6	Internal toothed annulus	Q05—01—06	1	For SAE NO.16 flywheel
7	Internal toothed annulus	Q05—01—07	1	For SAE NO.18 flywheel
——END——

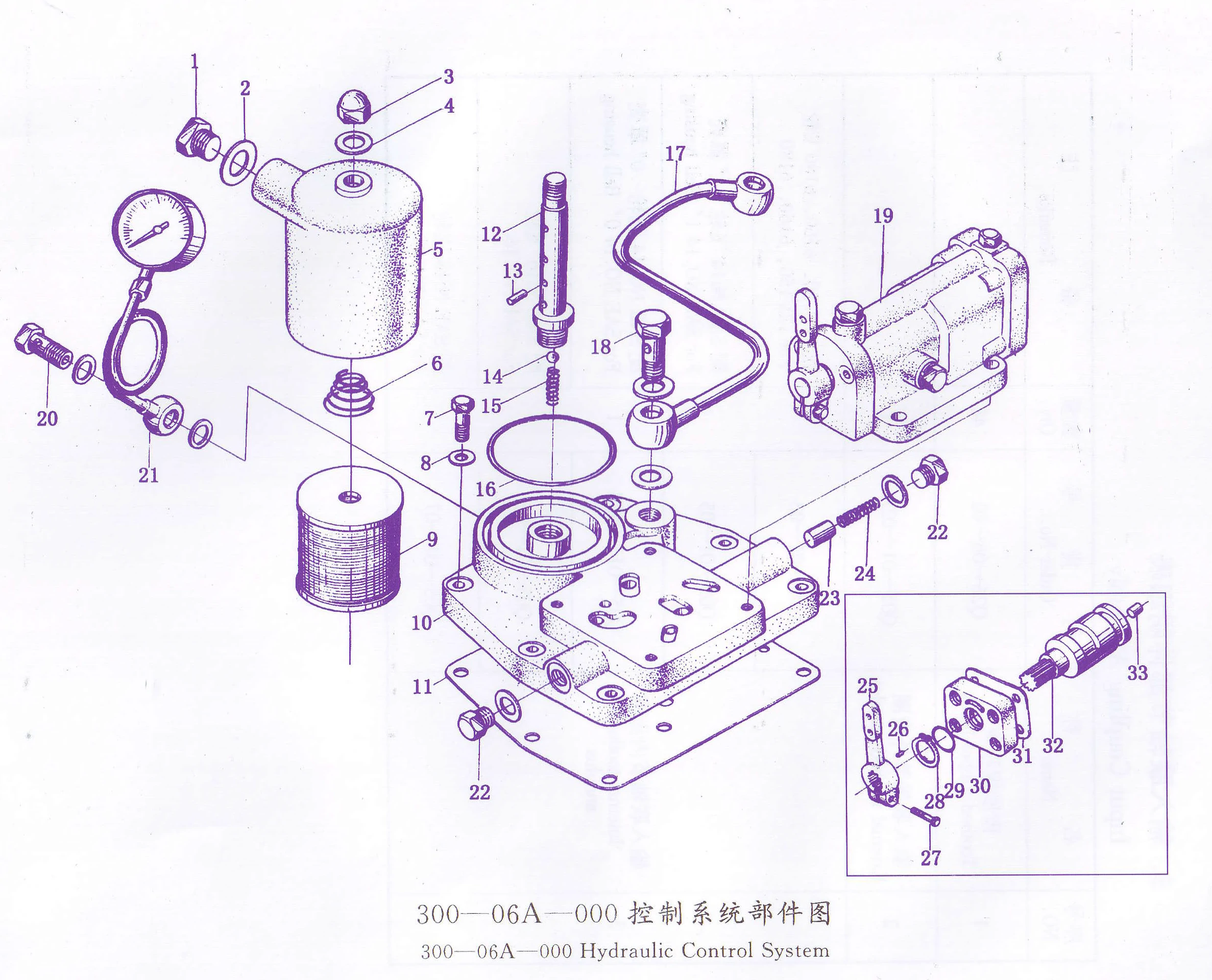

NO.	Part Name	Part No.	Qty.	Remarks
1	Plug	M22 Q21—15	1	/
2	Copper washer	22 Q20—03	5	/
3	Nut	M14×1.5 GB923—76	1	/
4	Copper washer	14 Q20—03	4	/
5	Filter case	Q21—11A	1	/
6	Cone spring	Q09—01A—02	1	/
7	Bolt	M10×30 GB21—76	6	/
8	Washer	10 GB848—76	6	/
9	Coil – type filter	ⅢF36A—12—200	1	/
10	Connecting plate	300—06A—001	1	For S300,DS300
11	Connecting plate	S300—06A—001	1	For S300,DS300
12	Gasket	300—06A—002	1	For S300,DS300
13	Gasket	S300—06A—002	1	For S300,DS300
14	Stem	Q09—01A—03	1	/
15	Pin	2.5×16 GB119—76	1	/
16	Steel ball	φ10 GB308—77	1	/
17	Spring	0.8×9×35.8 JB272—60	1	/
18	“O”ring	90×5 Q26—01	1	/
19	Inlet pipe group	300—06A—100	1	/
20	Connector	M22×1.5 Q21—18	2	/
21	Hydraulic control system	Q06—01B—00	1	/
22	Bolt	M14×1.5 Q21—19	1	listed in Q06—01B—00
23	Gauge group	Q06—01A—200	1	listed in Q06—01B—00
24	Plug	M14 Q20—01	2	/
25	Lib.valve stem	300—06A—003	1	/
26	Spring	1.2×10×35 GB2089—80	1	/
27	Lever	Q06—03—13	1	For S300,DS300
28	Pin	3jc4×8 GB119—76	1	For S300,DS300
29	Bolt	M6×15 GB30—76	1	For S300,DS300
30	Spacer	16 GB896—76	1	For S300,DS300
31	“O”ring	20×2.4 GB1235—76	1	For S300,DS300
32	Cover	S300—06A—004	1	For S300,DS300
33	Gasket	S300—06A—003	1	For S300,DS300
34	Shift valve	S300—06A—005	1	For S300,DS300
35	Plug	φ7Q21—14	2	For S300,DS300
——END——

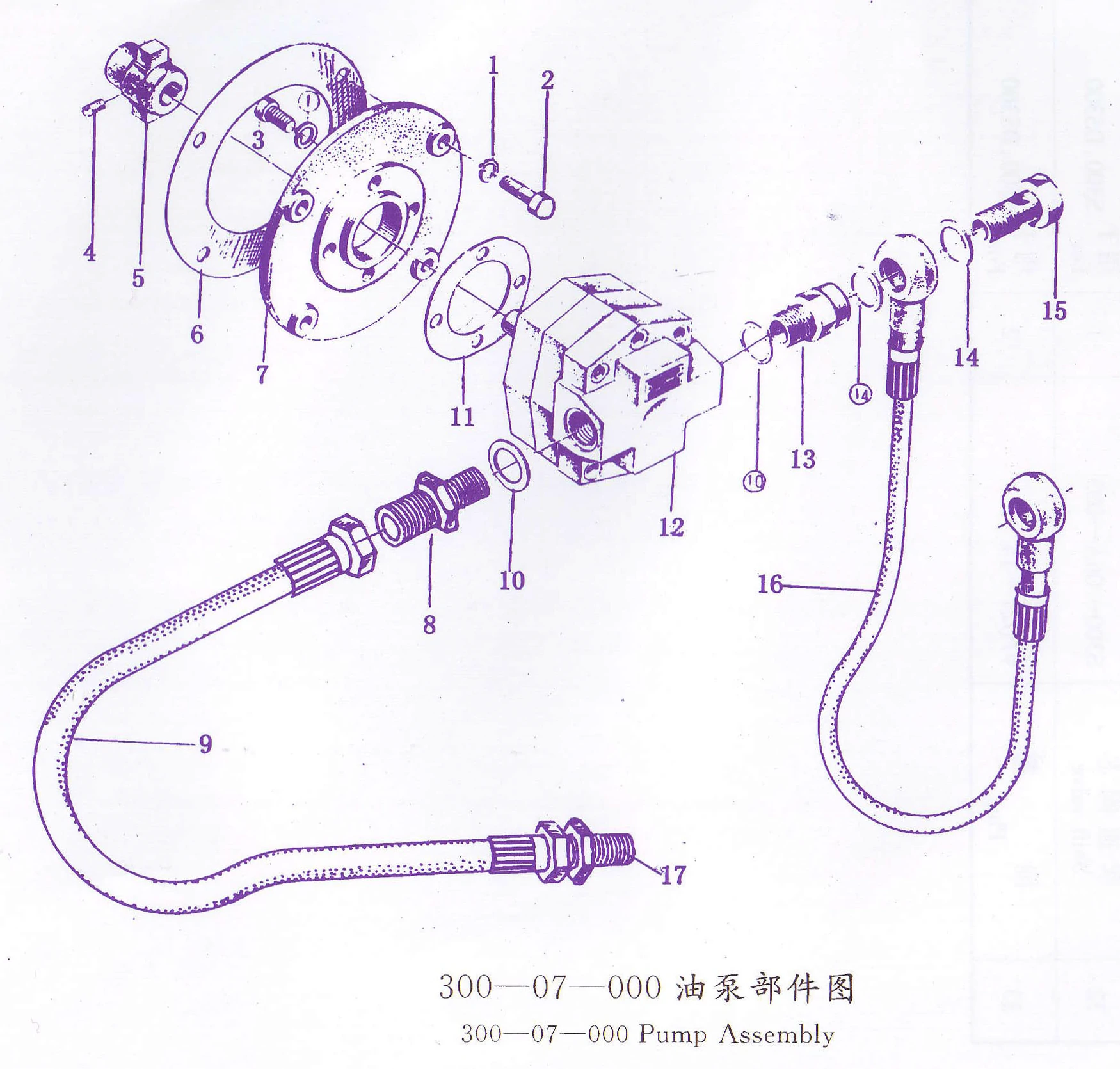

NO.	Part Name	Part No.	Qty.	Remarks
1	Spring washer	8 GB93—76	8	/
2	Bolt	M8×25 GB21—76	4	/
3	Bolt	M8×25 GB21—76	4	/
4	Screw	M6×10 GB73—76	1	/
5	Sleeve	300—07—005	1	/
6	Gasket	300—07—004	1	/
7	Connecting plate	300—07—002A	1	/
8	Connector	300—07—006A	1	/
9	Inlet pipe element	300—07—200A	1	For 300, S300
10	Inlet pipe element	D300—07—100A	1	For D300, DS300
11	Copper washer	27 Q20—03	5	/
12	Gasket	300—07—003A	1	/
13	Pump	BB—B32A	1	/
14	Pipe connector	300—07—001	1	/
15	Copper washer	22 Q20—03	4	/
16	Screw	Q21—18	2	/
17	Output pipe element	300—07—100A	1	/
18	Connector	300—04—207	1	/
——END——

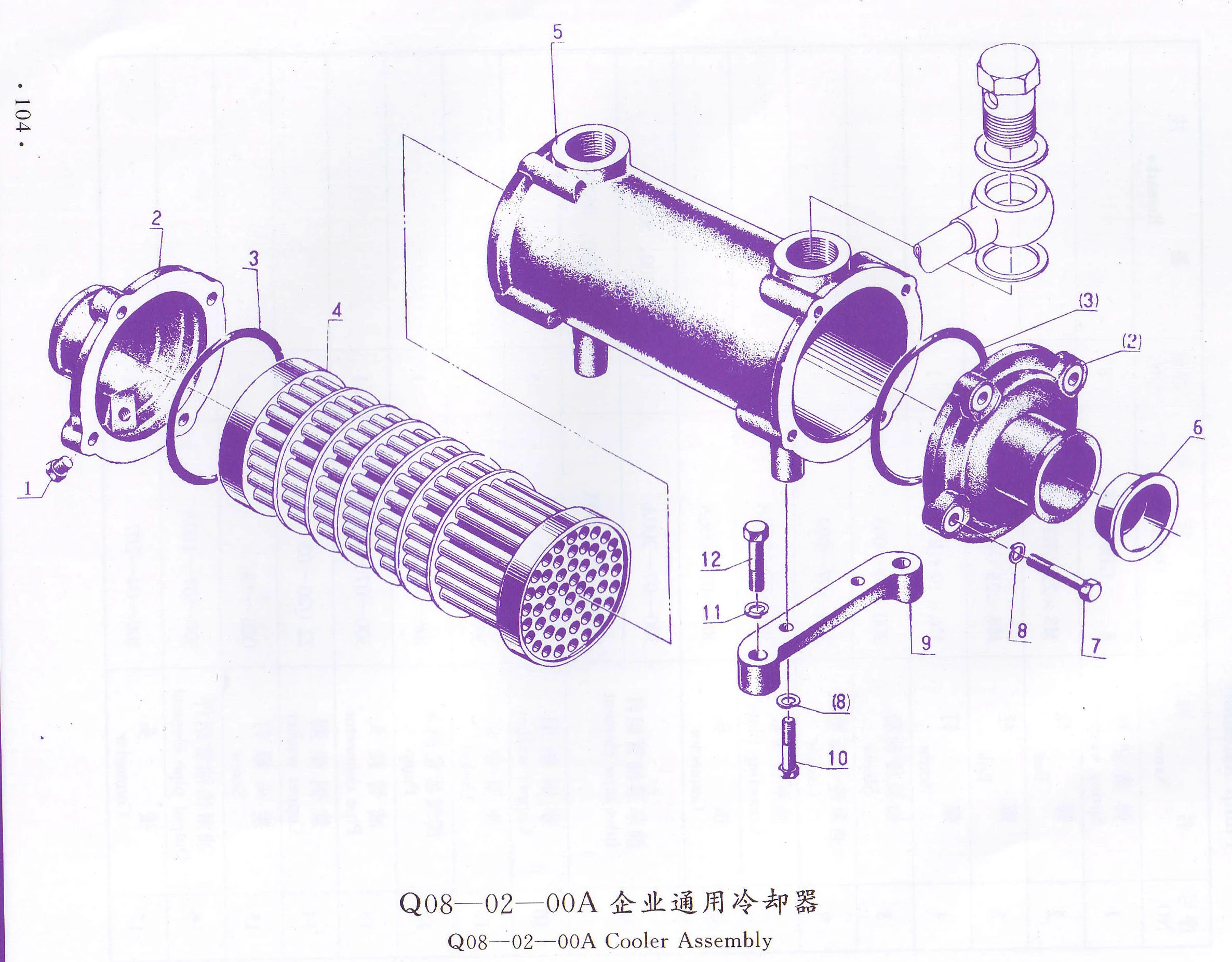

NO.	Part Name	Part No.	Qty.	Remarks
1	Plug	Q08—02—05	1	/
2	Cover	Q08—02—03A	2	/
3	“O”ring	Q08—02—02	2	/
4	Cooler core group	Q08—02—100A	1	/
5	Case	Q08—02—01	1	/
6	Cover	Q08—02—06	2	/
7	Bolt	M6×25 GB30—76	8	/
8	Washer	6 GB93—76	12	/
9	Connecting plate	Q08—02—04A	2	/
10	Bolt	M6×20 GB30—76	4	/
11	Washer	8 GB93—76	4	/
12	Bolt	M8×30 GB21—76	4	/
——END——
