The speed input range of the Advance GWC36.39 marine gearbox is 400-1900 RPM, with engine input power from 253.6 kW to 3648 kW. the reduction ratio range is 1.97-5.97 the transmission capacity range is 0.634-1.92 kW/RPM, the rated propeller thrust is 140 KN, and the input shaft is in the train Opposite to the output shaft.Advance GWC36.39 marine gearbox is composed of transmission shaft, output coupling, input coupling, oil pressure gauge, oil Filter, control system, oil pump and other important components.Advance GWC36.39 marine gearboxes provides two types of control system which are electric control and pneumatic control for customers to choose. To meet the different requirement of coupling with different engine brand and models, Advance GWC36.39 marine gearboxes available in engine flywheel sizes.All of our Advance GWC series marine gearbox can provide CCS classification certificate, some of series can provide international classifications with extra costs which mainly including French BV, British LR, American ABS, Japanese NK , Norway DNV-GL, Russia RS, South Korea KR, Italy RINA and other classification societies.
Advantages of GWC36.39 Marine Gearbox Parts
-
Gearbox novel structure, so that its use becomes very reliable. The excellent design makes the gearbox and engine arrangement more soft and smooth.
-
It can be matched with high-speed diesel engines at home and abroad, and can be arranged in vertical, horizontal and inclination according to the needs of users.
-
The gearbox have adapted to combined design, and all running parts have been carefully designed and machined to the highest standards for less wasted fuel, smooth operation which can be fitted to most engine models.
-
2-stage deceleration, the input and output are at the same center, and when the running direction is the same, it has the function of reverse clutch deceleration.
-
Professional gearbox specialists and after-sales service, spare parts directly available from stock.
Technical Specifications
| Gearbox Model: | GWC36.39 |
| Input Speed: | 400-1900 r / min |
| Power: | N/A |
| Center Distance: | N/A |
| Trans.Capacity: | 1.92-0.634 kw/r/min |
| Reduction Ratio: | 1.97-5.97 |
| Rated Thrust: | 140 kN |
| Dimension: | N/A |
| Net Weight: | 3000 kg |
| Lead Time: | 15-30 Working Days |
| Payment Terms: | T/T ,L/C |
Search by Part No. or Part Name
Click Kit Name to Check Part List
- Housing Assembly
- Input Assembly

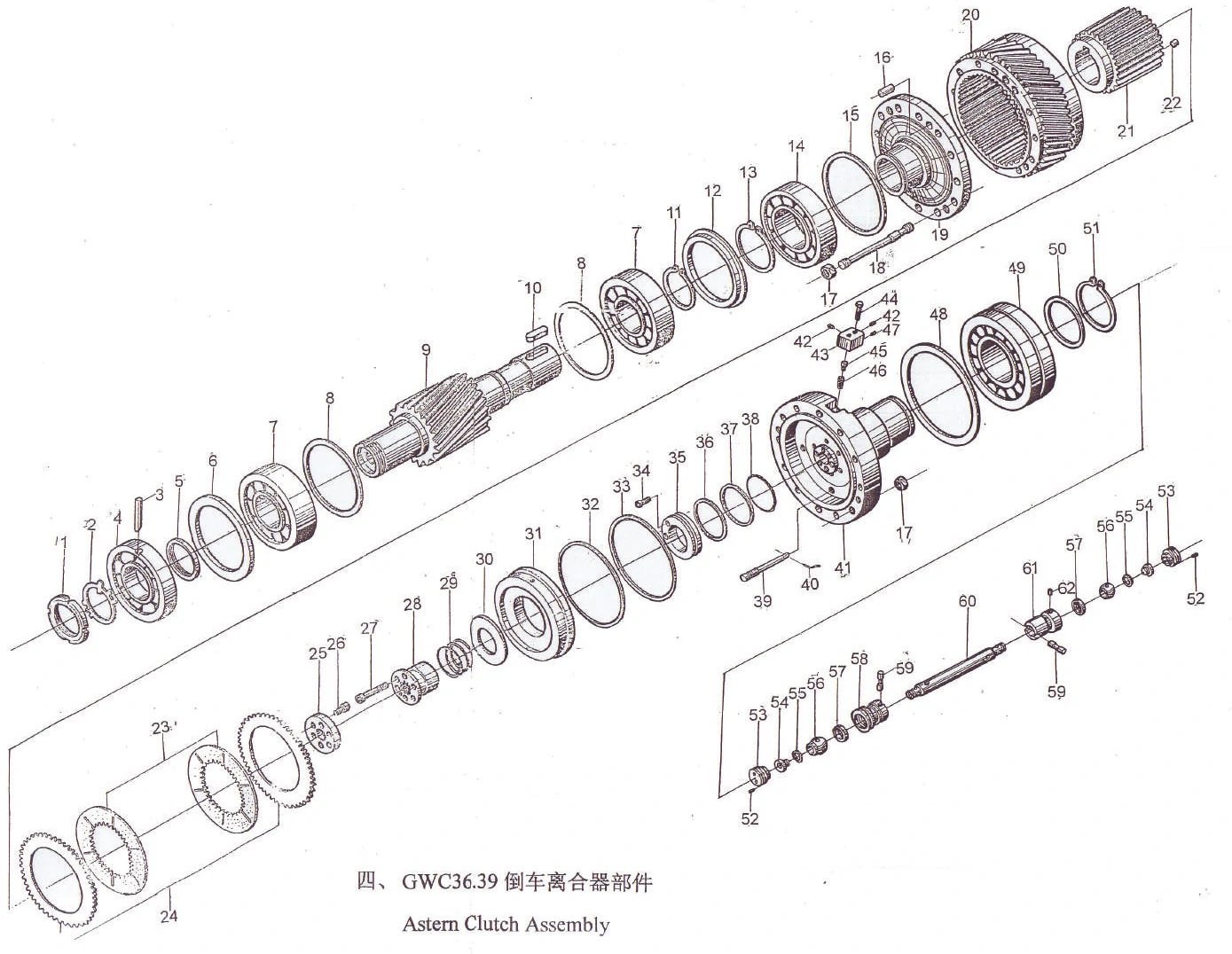

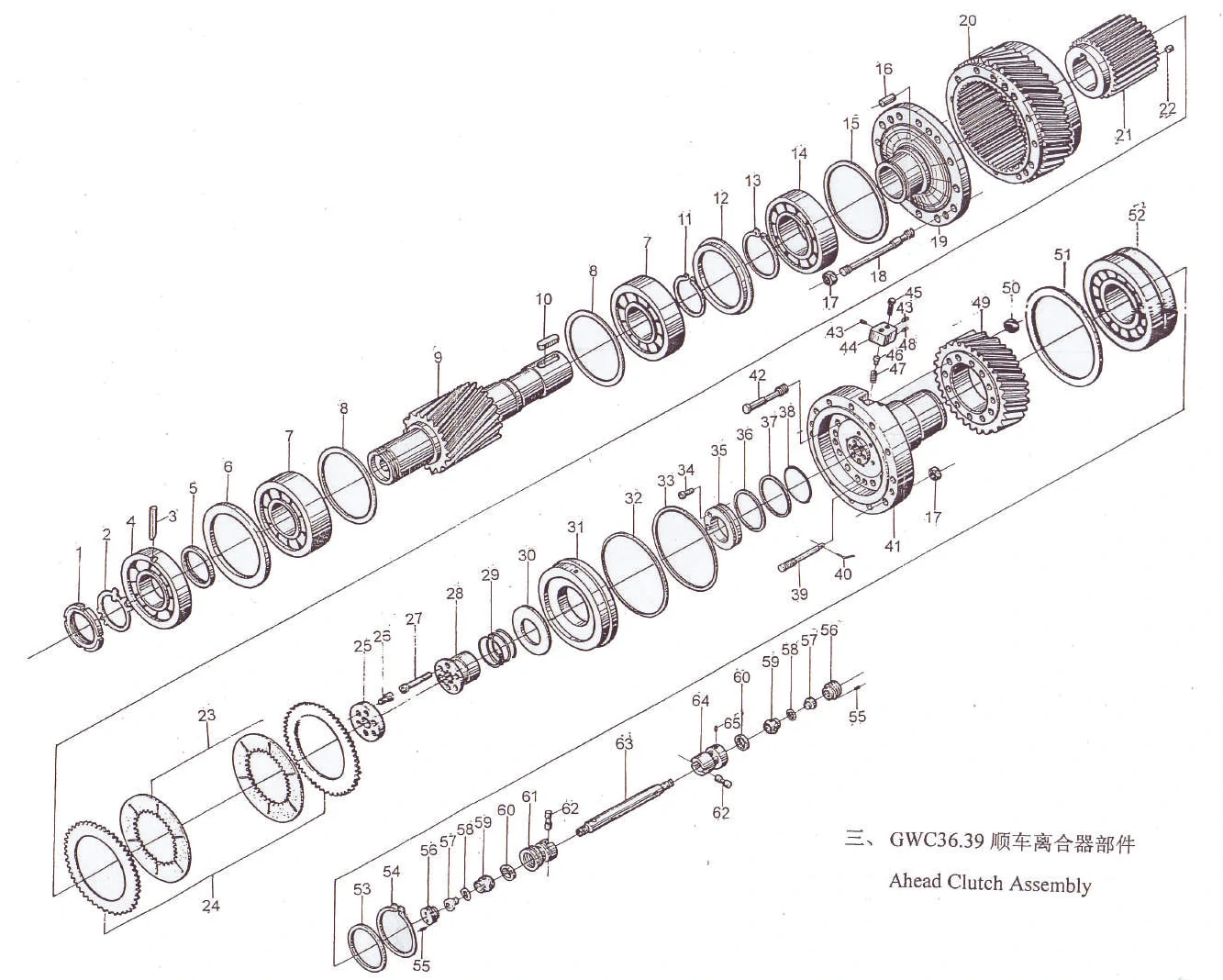

- Ahead Clutch Assembly
- Astern Clutch Assembly
- Output Assembly

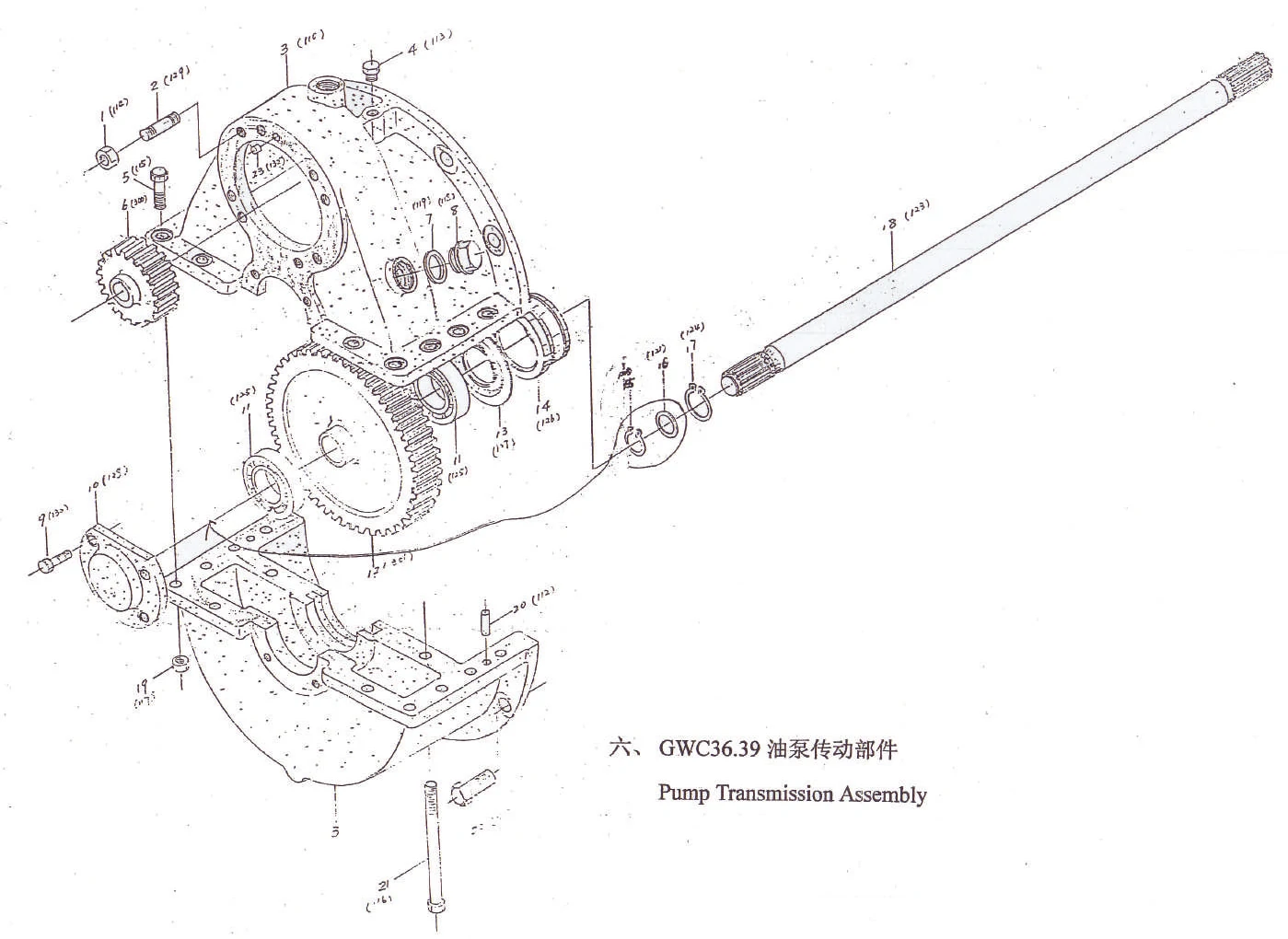

- Pump Transmission Assembly
- Pipeline Assembly
Item |
Parts Name |
Parts No. |
Qty |
Remark |
| 5 | Housing | 0/0112/0146/3 | 1 | — |
| 153 | Bolt M12×30-Q | GB21-76 | 4 | — |
| 66 | Bolt M8×25-Q | GB21-76 | 6 | — |
| 59 | Inspection window cover | 4/0454/0020/0 W | 1 | — |
| 65 | Paper Gasket | 3/0985/0032/0 W | 1 | — |
| 53 | Dipstick | 4/8053/5098/0 | 1 | — |
| 54 | Protective pipe | 4/0940/5039/0 | 1 | — |
| 8 | Pin 12×50 | GB117-76 | 2 | — |
| 10 | Bolt M20×270 | GB21-76 | 2 | — |
| 156 | Screw M10×55 | GB70-76 | 4 | — |
| 155 | Connection plate | 2/0930/0644/0 | 1 | — |
| 81 | Breather cap | Q29-06 | 1 | — |
| 82 | Copper washer 30 | Q20-03 | 1 | — |
| 61 | Bolt M8×25-Q | GB21-76 | 4 | — |
| 59 | Inspection window cover | 4/0454/0018/0 W | 1 | — |
| 60 | Paper Gasket | 3/0985/0027/0 W | 1 | — |
| 168 | Bolt M8×25-Q | GB21-76 | 4 | — |
| 93 | Rating plate | HCN-009-88 | 1 | — |
| 94 | Notched nail 3×8 | GB827-76 | 4 | — |
| 11 | Bolt M20×220 | GB21-76 | 4 | — |
| 2 | Bolt M12×55 | GB21-76 | 16 | — |
| 5 | Bolt M20×100 | GB21-76 | 4 | — |
| 7 | Bolt M20×80 | GB21-76 | 2 | — |
| 66 | Bolt M8×25-Q | GB21-76 | 6 | — |
| 64 | Inspection window cover | 3/0454/0020/0 W | 1 | — |
| 65 | Paper Gasket | 3/0985/0032/0 W | 1 | — |
| 144 | Bolt M6×16-Q | GB30-76 | 12 | — |
| 143 | Cover | 4/0438/0949/0 | 2 | — |
| 142 | Bolt M16×50 | GB21-76 | 16 | — |
| 141 | Oil feeding cover | 3/0440/0331/0 | 2 | — |
| 92 | Notched nail 3×15 | GB827-76 | 8 | — |
| 91 | HC emblem mark | HCN-011-83 | 4 | — |
| 98 | Notched nail 3×8 | GB827-76 | 2 | — |
| 97 | Rotation indicator plate | Q25-06 | 1 | — |
| 14 | Bolt M16×60-Q | GB21-76 | 4 | — |
| 17 | Bolt M16×45 | GB21-76 | 16 | — |
| 3 | Nut M12 | GB52-76 | 16 | — |
| 1 | Middle housing | 0/0112/0146/3 | 1 | — |
| 55 | Cover | 4/0438/0949/0 | 2 | — |
| 56 | Bolt M8×15-Q | GB21-76 | 8 | — |
| 46 | Wire fuse ￠2.5 | YB544-65 | 4 | — |
| 45 | Hexagon bolt with wire holes on head M16×100 | GB32-76 | 4 | — |
| 40 | Bearing bracket | 2/0470/0234/0 | 1 | — |
| 40 | Bearing bracket | 2/0470/0215/0 | 1 | — |
| 43 | Pin 16×80 | GB118-76 | 2 | — |
| 42 | Wire fuse ￠2.5 | YB544-65 | 4 | — |
| 41 | Hexagon bolt with wire holes on head M20×75 | GB32-76 | 8 | — |
| 48 | Oil shroud | 3/0941/0590/0 | 1 | — |
| 50 | Wire fuse ￠1.6 | YB544-65 | 2 | — |
| 49 | Hexagon bolt with wire holes on head M10×18-Q | GB32-76 | 4 | — |
| 47 | Pin 12×100 | GB881-76 | 2 | — |
| 47 | Oil shroud | 3/0941/0513/0 | 1 | — |
| 289 | Hexagon bolt with wire holes on head M10×18 | GB32-76 | 4 | — |
| 291 | Wire fuse ￠1.6 | YB544-65 | 2 | — |
| 291 | Pin 12×70 | GB879-76 | 2 | — |
| 291 | Pin 8×25 | GB879-76 | 2 | — |
| 26 | Sealing cover | 2/0434/0185/2 | 1 | — |
| 26 | Bolt M6×30-Q | GB21-76 | 2 | — |
| 29 | Nut M6 | GB52-76 | 2 | — |
| 27 | Bolt M16×35 | GB21-76 | 8 | — |
| 237 | Packing 9.5×9.5×630 | 1 | — | |
| 88 | Plug screw M48×2 | JB1000-77 | 1 | — |
| 88 | Washer 48 | Q20-03 | 1 | — |
| 88 | Bottom Housing | 0/0112/0146/3 | 1 | — |
| 16 | Bolt M20×120 | GB21-76 | 2 | — |
| 15 | Nut M16 | GB52-76 | 4 | — |
| 113 | Plug screw M14×1.5 | JB1000-77 | 2 | — |
| 33 | Bolt M12×40-Q | GB21-76 | 8 | — |
| 32 | Cover | 2/0438/5008/0 | 1 | — |
| 18 | Bolt M24×130 | GB21-76 | 2 | — |
| 78 | Oil filler | GW-78 | 1 | — |
| 75 | Paper Gasket | 3/0985/0032/0 W | 1 | — |
| 74 | Inspection window cover | 3/0454/5012/0 | 1 | — |
| 76 | Bolt M2×25-Q | GB21-76 | 6 | — |
| 255 | Packing 9.5×9.5×425 | 1 | — | |
| 36 | Sealing cover | 2/0434/5021/1 | 1 | — |
| 38 | Bolt M10×40 | GB21-76 | 2 | — |
| 39 | Pin 10×30 | GB879-76 | 2 | — |
| 37 | Bolt M20×40-Q | GB21-76 | 8 | — |
| 35 | Nut M106 | GB52-76 | 2 | — |
| 19 | Nut M24 | GB52-76 | 2 | — |
| 86 | Washer 48 | Q20-03 | 1 | — |
| 85 | Plug screw M48×2 | JB1000-77 | 1 | — |
| 24 | Screw M20×100 | GB79-76 | 4 | — |
| 6 | Nut M20 | GB52-76 | 6 | — |
| ——END—— | ||||
No. |
Description |
Parts No. |
Qty. |
Remarks |
| 265 | Screw M20×40 | GB70-76 | 6 | — |
| 264 | Disc | 3/0405/5052/0 | 1 | — |
| 262 | Spacer ring | 2/0402/0123/0 | 2 | — |
| 263 | Cylindrical roller bearing | 3G3053224Y | 1 | — |
| 261 | Spacer ring | 4/0400/3894/1 | 1 | — |
| 287 | Input gear Z=31 | 2/0305/5028/0 | 1 | — |
| — | Input gear Z=37 | 2/0305/5027/0 | 1 | — |
| — | Input gear Z=41 | 2/0305/5026/0 | 1 | — |
| — | Input gear Z=44 | 2/0305/5025/0 | 1 | — |
| — | Input gear Z=47 | 2/0305/5024/0 | 1 | — |
| — | Input gear Z=50 | 2/0305/5023/0 | 1 | — |
| — | Input gear Z=53 | 2/0305/5022/0 | 1 | — |
| — | Input gear Z=58 | 2/0305/5021/0 | 1 | — |
| — | Input gear Z=62 | 2/0305/5020/0 | 1 | — |
| 252 | Input shaft | 2/0230/5058/0 | 1 | — |
| 253 | Key 32×125 | GB1096-79 | 1 | — |
| 258 | Circlip for shaft 230 | Q20-04 | 2 | — |
| 257 | Cylindrical roller bearing | 3G32226EH | 1 | — |
| 256 | Circlip for shaft 130 | GB894-76 | 1 | — |
| 254 | O-ring ￠Inside 119.2×5.7 | — | 1 | — |
| 295 | Input flange | GWC36.39-295.1 | 1 | — |
| 251 | Tab washer for round nut 105 | GB858-76 | 1 | — |
| 250 | Round nut M105×2 | GB812-76 | 1 | — |
| ——END—— | ||||
Item |
Parts Name |
Parts No. |
Qty |
Remark |
| 217 | Nut M100×2 | GB812-76 | 1 | — |
| 216 | Lock Washer 100 | GB858-76 | 1 | — |
| 218 | Parallel pin | 4/0220/0554/1 | 1 | — |
| 215 | Bearing | 176320 | 1 | — |
| 214 | Spacer | 4/0400/3891/0 | 1 | — |
| 213 | Spacer | 4/0401/3475/0 | 1 | — |
| 210 | Cylindrical roller bearing | 3G32620EH | 2 | — |
| 212 | Snap ring 215 | Q20-04 | 2 | — |
| 281 | Pinion | 1/0256/5017/0 | 1 | — |
| 209 | Key 25×90 | GB1096-74 | 1 | — |
| 219 | Snap ring 120 | GB894-76 | 1 | — |
| 208 | Spacer ring | 4/0401/3474/0 | 1 | — |
| 219 | Snap ring 120 | GB894-76 | 1 | — |
| 206 | Cylindrical roller bearing | 3G32524EH | 1 | — |
| 207 | Snap ring 215 | Q20-04 | 1 | — |
| 205 | Parallel pin 12ga×40 | GB119-76 | 2 | — |
| 177 | Nut M14 | DIN6915AHV10 | 24 | — |
| 176 | Bolt | 4/0224/1093/0 | 24 | — |
| 204 | Flange for clutch housing | 2/0582/0946/1 | 1 | — |
| 178 | Clutch housing | 1/0335/5001/2 | 1 | — |
| 182 | Disc carrier | 2/0335/0161/2 | 1 | — |
| 192 | Plug ￠17 | Q21-13 | 3 | — |
| 199 | Piston | 3/0903/0079/0 | 2 | — |
| 203 | Spring 0.5×4×31 | — | 2 | — |
| 202 | Slotted set screw M5×10 | GB71-76 | 2 | — |
| 288 | Gear Z=56 | 2/0301/5037/0 | 1 | — |
| — | Gear Z=54 | 2/0301/5036/0 | 1 | — |
| — | Gear Z=52 | 2/0301/5035/0 | 1 | — |
| — | Gear Z=49 | 2/0301/5034/0 | 1 | — |
| — | Gear Z=47 | 2/0301/5033/0 | 1 | — |
| — | Gear Z=44 | 2/0301/5032/0 | 1 | — |
| — | Gear Z=40 | 2/0301/5031/0 | 1 | — |
| — | Gear Z=36 | 2/0301/5030/0 | 1 | — |
| — | Gear Z=31 | 2/0301/5029/0 | 1 | — |
| 177 | Nut M14 | GB52-76 | 12 | — |
| 173 | Adjusting ring | 4/0402/0145/0 | 1 | — |
| 172 | Bearing 22311 | 53624+Y | 1 | — |
| 171 | Spacer ring | 4/0400/3890/0 | 1 | — |
| 170 | Snap ring 120 | GB894-76 | 1 | — |
| 145.9 | Slotted set screw M3×5 | GB71-76 | 2 | — |
| 145.6 | Piston | 4/0224/1187/0 | 2 | — |
| 145.11 | Bolt M10×1 | DIN908 | 2 | — |
| 145.7 | Spacer | 4/0406/5003/0 | 2 | — |
| 145.5 | Bearing | 4/0940/1543/1 | 2 | — |
| 145.4 | Guiding ring | 4/0403/0450/1 | 2 | — |
| 145.3 | Guide ring | 3/0940/1842/0 | 1 | — |
| 145.8 | Backing pin | 4/0220/0587/0 | 2 | — |
| 145.2 | Oil Pipe | 3/0940/5056/0 | 1 | — |
| 145.1 | Guide ring | 3/0940/1840/2 | 1 | — |
| 145.1 | Pin 5ga×10 | GB119-76 | 1 | — |
| ——END—— | ||||
Item |
Parts Name |
Parts No. |
Qty |
Remark |
| 217 | Nut M100×2 | GB812-76 | 1 | — |
| 216 | Washer 100 | GB853-76 | 1 | — |
| 218 | Pin | 4/0220/0554/1 | 1 | — |
| 215 | Bearing | 176320 | 1 | — |
| 214 | Spacer | 4/0400/3891/0 | 1 | — |
| 213 | Spacer | 4/0401/3475/0 | 1 | — |
| 210 | Bearing | 3G32620EH | 2 | — |
| 212 | Supporting ring 215 | Q20-04 | 2 | — |
| 281 | Shaft pinion | 1/0256/5017/0 | 1 | — |
| 209 | Key 25×90 | GB1096-74 | 1 | — |
| 219 | Circlip for shaft 100 | GB894-76 | 1 | — |
| 208 | Spacer ring | 4/0401/3074/0 | 1 | — |
| 219 | Circlip for shaft 120 | GB894-76 | 1 | — |
| 206 | Bearing | 3G32524E | 1 | — |
| 207 | Supporting ring 215 | Q20-04 | 1 | — |
| 205 | Pin 12ga×40 | GB119-76 | 2 | — |
| 177 | Nut M14 | DIN6915AHV10 | 24 | — |
| 176 | Bolt | 4/0224/1093/0 | 24 | — |
| 204 | Flange for clutch housing | 2/0582/0946/1 | 1 | — |
| 178 | Clutch housing | 1/0335/5002/2 | 1 | — |
| 182 | Disc carrier | 2/0335/0161/2 | 1 | — |
| 192 | Plug ￠17 | Q21-13 | 3 | — |
| 180 | Inner disc | 3/0539/0051/2 | 10 | — |
| 181 | Outer disc | 3/0530/0038/1 | 11 | — |
| 194 | Retaining disc | 4/0406/0436/1 | 1 | — |
| 197 | Screw M8×25 | GB70-76 | 6 | — |
| 196 | Screw M6×30 | GB70-76 | 6 | — |
| 239 | Guide ring | 4/0400/5269/0 | 1 | — |
| 184 | X-ring 107.3×117.96×5.33 | 4347-366Y | 1 | — |
| 187 | Spacer 229.2×6.4×1.25 | S52029-447 | 1 | — |
| 249 | O-ring ￠内 100×3 | — | 1 | — |
| 279 | Astern Emergency screw | 4/0224/5053/1 | 2 | — |
| 280 | Safety wire ￠2.5 | YB544-65 | 2 | — |
| 274 | Cylinder | 1/0583/5058/1 | 1 | — |
| 276 | Bolt | 4/0224/5052/0 | 6 | — |
| 201 | Slotted set screw M6×8 | GB71-76 | 4 | — |
| 198 | Clutch drain valve | 3/0391/0118/0 | 2 | — |
| 200 | Screw M6×40 | GB21-76 | 4 | — |
| 199 | Piston | 3/0903/0079/0 | 2 | — |
| 203 | Spring 0.5×4×31 | — | 2 | — |
| 202 | Slotted set screw M5×10 | GB71-76 | 2 | — |
| 173 | Adjusting ring | 4/0402/0145/0 | 1 | — |
| 172 | Bearing 22311 | 3G53624HY | 1 | — |
| 171 | Spacer ring | 4/0400/3890/0 | 1 | — |
| 170 | Circle for shaft120 | GB894-76 | 1 | — |
| 145.9 | Slotted set screw M3×5 | GB71-76 | 2 | — |
| 145.6 | Plug screw | 4/0224/1187/0 | 2 | — |
| 145.11 | Hexagon head bolt M10×1 | DIN908 | 2 | — |
| 145.7 | Spacer | 4/0406/5003/0 | 2 | — |
| 145.5 | Bearing | 4/0940/1543/1 | 2 | — |
| 145.4 | Ring | 4/0403/0450/1 | 2 | — |
| 145.3 | Guide ring | 3/0940/1842/0 | 1 | — |
| 145.8 | Pin | 4/0220/0587/0 | 2 | — |
| 145.2 | Oil Pipe | 3/0940/5056/0 | 1 | — |
| 145.1 | Guide ring | 3/0940/1840/2 | 1 | — |
| 145.1 | Pin 5ga×10 | GB119-76 | 1 | — |
| ——END—— | ||||
Item |
Parts Name |
Parts No. |
Qty |
Remark |
| 240 | Output Shaft | 2/0230/5059/0 | 1 | — |
| 238 | “O”-ring | ￠Inside 190×17 | 1 | — |
| 235 | Snap ring 320 | Q20-04 | 1 | — |
| 236 | Bearing | 32236H | 1 | — |
| 234 | Spacer ring | 4/0400/5223/0 | 1 | — |
| 284 | Output gear Z=63 | 2/0305/5019/0 | 1 | — |
| — | Output gear Z=70 | 2/0305/5017/0 | 1 | — |
| — | Output gear Z=75 | 2/0305/5015/0 | 1 | — |
| 233 | Spacer ring | 4/0400/5224/0 | 1 | — |
| 232 | Snap ring 230 | Q20-04 | 1 | — |
| 231 | Bearing | 32232H | 1 | — |
| 223 | Bearing | 9039422 | 2 | — |
| 227 | Spring 2×10×55 | — | 6 | — |
| 221 | Disc | 3/0405/1434/0 | 1 | — |
| 222 | Screw M20×50 | GB70-76 | 6 | — |
| ——END—— | ||||
No. |
Description |
Parts No. |
Qty. |
Remarks |
| 110 | Pump input casing | GWC30.32-110-1 | 1 | — |
| 111 | Hexagon head bolt | M12×35 GB55783-86 | 8 | — |
| 112 | Taper pin | A8×30 GB117-86 | 2 | — |
| 113 | Plug screw | M14×1.5 Q20-01 | 1 | — |
| 114 | Hexagon nut | M12 GB6170-86 | 4 | — |
| 115 | Hexagon head bolt | M10×45 GB55782-86 | 11 | — |
| 116 | Hexagon head bolt | M10×110 GB55782-86 | 2 | — |
| 117 | Hexagon nut | M10 GB6170-86 | 11 | — |
| 118 | Plug screw | M33×2 Q20-01 | 1 | — |
| 119 | seal | 33 Q20-03 | 1 | — |
| 120 | Circlip for shaft | 17 GB894-86 | 1 | — |
| 121 | Washer | 17×24×1.5 DIN988 | 1 | — |
| 123 | Pump transmission Shaft | 3/0250/5004/0 | 1 | — |
| 124 | Circlip for shaft | 24 GB894-86 | 1 | — |
| 125 | Deep groove ball bearing | 6210 | 2 | — |
| 126 | Bushing | 4/0333/5005/0 | 1 | — |
| 127 | Nilos ring | 4/0985/0664/0 | 1 | — |
| 128 | Cover | 3/0438/0902/1 | 1 | — |
| 129 | Double end stud | M12×30 GB898-88 | 4 | — |
| 130 | Hexagon head bolt | M10×30 GB55783-86 | 4 | — |
| 300 | Pump gear | GWC30.32-300 | 1 | — |
| 301 | Pump gear | GWC30.32-301 | 1 | — |
| 1 | Retaining valve assembly | RK46-NW32 | 3 | Large serial number 600 |
| 2 | pipe | 50×3 YB231-70 | 5 | 521 |
| 2.1 | pipe | 42×2 YB231-70 | 5 | 523 |
| 3 | T-connector | GWC32.35-536 | 3 | 536 |
| 4 | Flange | GWC32.35-508 | 2 | 508 |
| 5 | Hexagon head bolt | M10×40 GB55783-86 | 8 | 592 |
| 6 | Pump | ZCB-B100 | 1 | 163 |
| 7 | Flange | C40×50 DIN2633 | 2 | 506 |
| 7.1 | Flange | C32×42 DIN2633 | 2 | 507 |
| 8 | Gasket | — | 2 | 513、514 |
| 9 | Hexagon head bolt | M16×55 GB55783-86 | 8 | 582 |
| 10 | Hexagon nut | M16 GB52-76 | 8 | 589 |
| 11 | Flange | B40 ND6 DIN2527 | 2 | 504 (No holes) 505 (drilling Φ50.5) |
| 12 | Gasket | — | 4 | 512 |
| 13 | Hexagon head bolt | M12×55 GB30-76 | 8 | 581 |
| 14 | Suction pipe assembly | 3/0940/1873/1 | 2 | 520 |
| 15 | Insert sprayer | 3/0940/1869/0 | 1 | 519 |
| 16 | Flange | B25 ND6 DIN2527 | 2 | 510 (drilling Φ34.5) |
| 17 | Gasket | — | 4 | 517 |
| 18 | Hexagon head bolt | M10×40 GB55783-86 | 8 | 586 |
| 19,22 | Weld male connector | Z18 JB1950-77 | 3 | 555、561 |
| 19.1 | Union tee | Z18 JB1948-77 | 1 | 567 |
| ——END—— | ||||
No. |
Description |
Parts No. |
Qty. |
Remarks |
| 20,23 | Pipe | 18×1.5 YB231-70 | 10 | 530、531 |
| 21 | Straight thread connector | Z18 JB1942-77 | 2 | 562 |
| 20.1 | Angle swivel screw | Z18 JB1953-77 | 5 | 557、560 |
| 24,26 | Angle swivel screw | Z18 JB1953-77 | 5 | 557、560 |
| 25 | Back pressure vale | RHD18 | 1 | 541 |
| 27 | Pipe | 34×2 YB231-70 | 3 | 527 |
| 28 | Weld male connector | Z10 JB1950-77 | 9 | 566 |
| 29 | Straight thread connector | Z10 JB1942-77 | 7 | 564、568 |
| 30 | Pipe | 10×1.5 YB231-70 | 1 | 533 |
| 31 | Union tee | Z10 JB1948-77 | 3 | 551、565 |
| 32 | Angle swivel screw | Z12 JB1953-77 | 9 | 563、569 |
| 33 | Insert sprayer | 3/0940/1868/0 | 1 | 518 |
| 34 | Connector | GWC-574 | 8 | 574（M10X1） |
| 35 | Straight thread connector | Z6 JB1942-77 | 3 | 571 |
| 36 | Pipe | 6×1 YB231-70 | 2 | 535 |
| 37 | Dash unit | GWC30.32-601 | 1 | 601 |
| — | Pressure gauge | YT102 | 1 | (0 4N/mm²) |
| — | Pressure gauge | YT102 | 1 | (0 0.6N/mm²) |
| — | Oil thermometer | YW102 | 1 | (0 105℃) |
| 38 | Pressure switch | YWK-50-C | 1 | 596 (0 3N/mm²) |
| 39 | Pressure switch | YWK-50-C | 1 | 597 (0 3N/mm²) |
| 40 | Pressure switch | YWK-50-C | 1 | 598(0 0.5N/mm²) |
| 41 | Copper tube | 6×1 YB447-70 | 2 | 534 |
| 42 | Union tee | Z34 JB1948-77 | 1 | 552 |
| 43 | Cooler group | YL2.2/JYL2.2 | 1 | 165 |
| 44 | Connector | GWC-573 | 2 | 573 |
| 45 | Seal | 22 Q20-03 | 8 | 577 |
| 46 | Temperature switch | JWGK-A | 1 | 599(75℃) |
| 47 | connector | GWC-576 | 2 | 576 |
| 48 | Seal | GWC-579 | 2 | 579 |
| 49 | connector | Q21-05 | 2 | 575 |
| 50 | Pipe sleeve | Q21-06 | 2 | 585 |
| 51 | Nut | Q21-07 | 8 | 584 |
| 52 | Pneumatic controller | WL4A16B/1 | 1 | 157 |
| 53 | Angle swivel screw | Z28 JB1953-77 | 1 | 556 |
| 54 | Straight thread connector | Z28 JB1942-77 | 2 | 553 |
| 55 | Filter | r 41-43 | 1 | 164 |
| 56 | Pipe | 28×2 YB231-70 | 1 | 529 |
| 57 | Weld male connector | Z28 JB1950-77 | 1 | 554 |
| 58 | Plug screw | M10×1 Q20-01 | 5 | 580 |
| 59 | 2-stage control valve | 2/1608/1010/1 | 1 | 152 |
| 60 | Adjustable T-union | GWC-558 | 2 | 558 |
| 61 | Plug | GWC-559 | 2 | 559 |
| 62 | Back pressure valve | RHZ18 | 1 | 544 |
| 63 | Backboard | GWC-590 | 1 | 590 |
| 64 | Hexagon head bolt | M12×30 GB30-76 | 4 | Belong to cooler assembly |
| 65 | Plate r | LG2.2-004 | 1 | Belong to cooler assembly |
| 66 | Gasket | LG2.2-005 | 1 | Belong to cooler assembly |
| 67 | Connector for oil thermometer | Q21-08 | 1 | 588 |
| ——END—— | ||||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
Engine Sale Manual
Installation Drawing
Installation Manual
Operation Manual
Parts Catalogue
Report & Certifcate
Tags:
