The speed input range of the Advance GWC42.45 marine gearbox is 400-1600 RPM, with engine input power from 442.4 kW to 5248 kW. the reduction ratio range is 2.00-5.93 the transmission capacity range is 1.106-3.28 kW/RPM, the rated propeller thrust is 220 KN, and the input shaft is in the train Opposite to the output shaft.
Advance GWC42.45 marine gearbox is composed of transmission shaft, output coupling, input coupling, oil pressure gauge, oil Filter, control system, oil pump and other important components.
Advance GWC42.45 marine gearboxes provides two types of control system which are electric control and pneumatic control for customers to choose. To meet the different requirement of coupling with different engine brand and models, Advance GWC42.45 marine gearboxes available in engine flywheel sizes.
All of our Advance GWC series marine gearbox can provide CCS classification certificate, some of series can provide international classifications with extra costs which mainly including French BV, British LR, American ABS, Japanese NK , Norway DNV-GL, Russia RS, South Korea KR, Italy RINA and other classification societies.
Advantages of GWC42.45 Marine Gearbox Parts
Gearbox novel structure, so that its use becomes very reliable. The excellent design makes the gearbox and engine arrangement more soft and smooth.
It can be matched with high-speed diesel engines at home and abroad, and can be arranged in vertical, horizontal and inclination according to the needs of users.
The gearbox have adapted to combined design, and all running parts have been carefully designed and machined to the highest standards for less wasted fuel, smooth operation which can be fitted to most engine models.
2-stage deceleration, the input and output are at the same center, and when the running direction is the same, it has the function of reverse clutch deceleration.
Professional gearbox specialists and after-sales service, spare parts directly available from stock.
Technical Specifications
| Gearbox Model: | GWC42.45 |
| Input Speed: | 400-1600 r / min |
| Power: | N/A |
| Center Distance: | N/A |
| Trans.Capacity: | 3.28-1.106 kw/r/min |
| Reduction Ratio: | 2.00-5.93 |
| Rated Thrust: | 220 kN |
| Dimension: | N/A |
| Net Weight: | 3980 kg |
| Lead Time: | 15-30 Working Days |
| Payment Terms: | T/T ,L/C |
Search by Part No. or Part Name
Click Kit Name to Check Part List

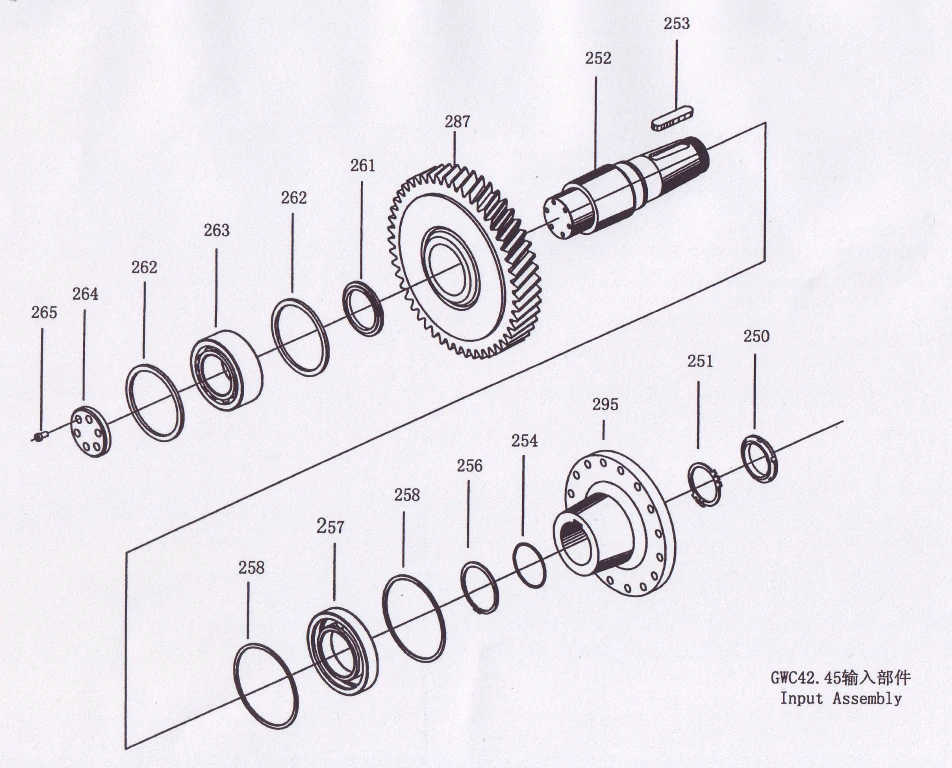

- Input Assembly

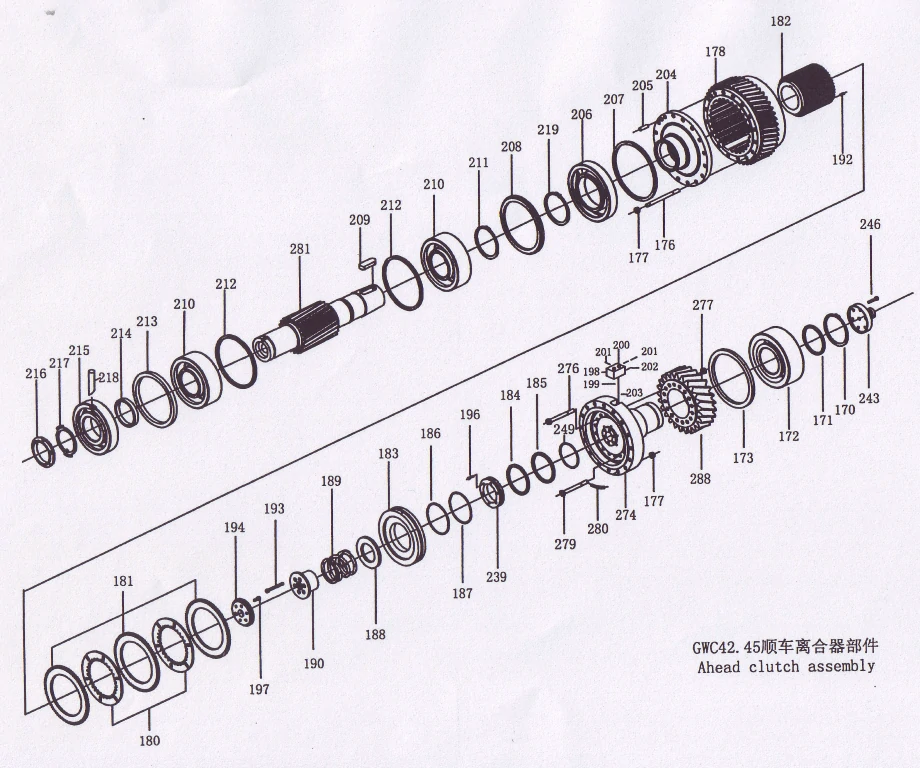

- Clutch Assembly

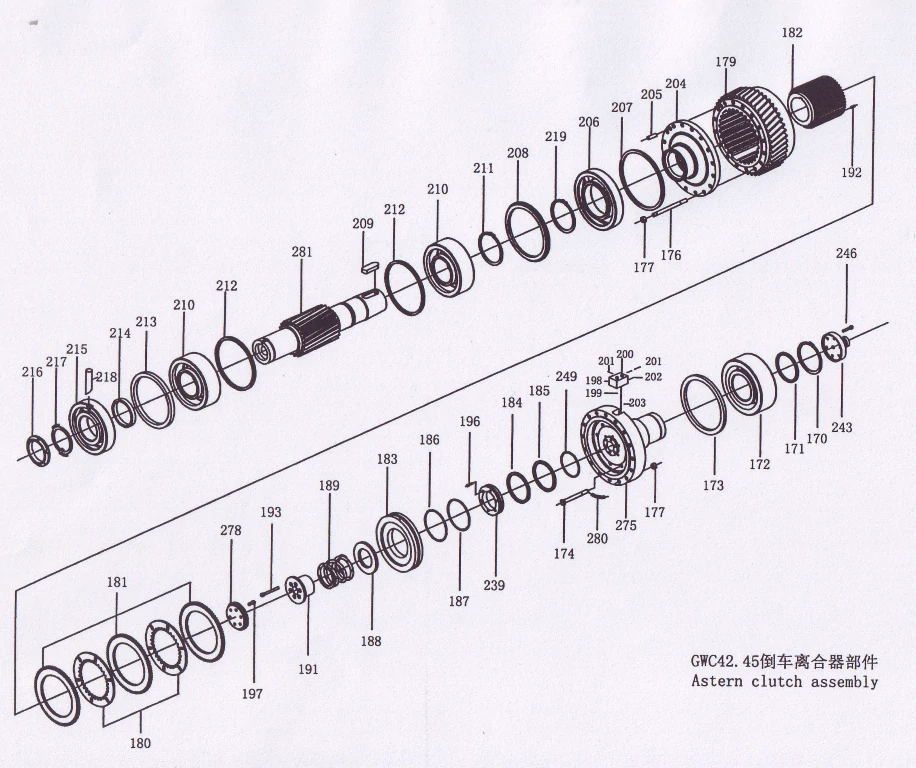

- Clutch Assembly

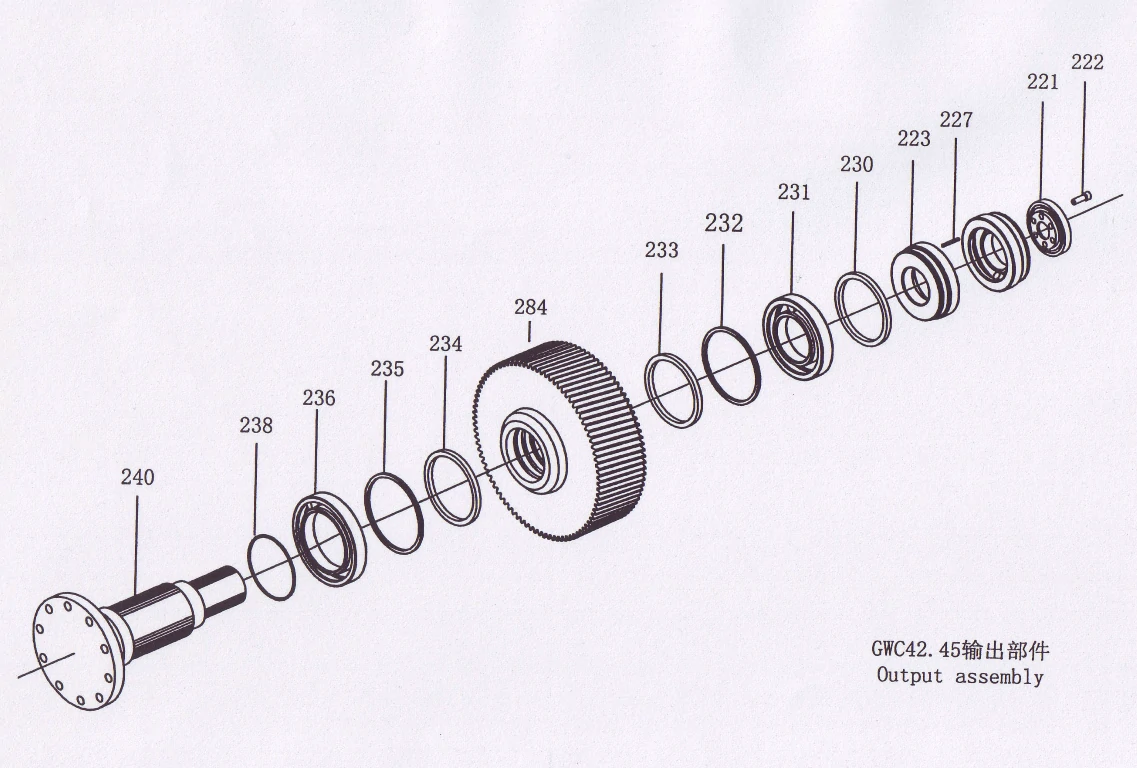

- Output Assembly
- Housing Assembly

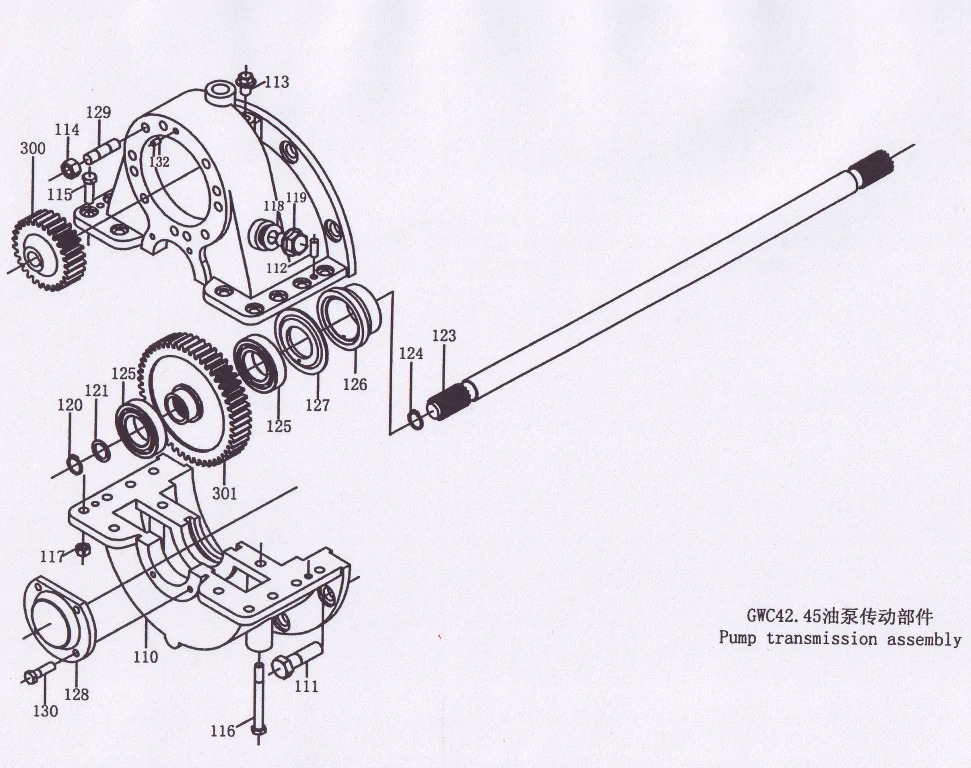

- Pump Transmission Assembly

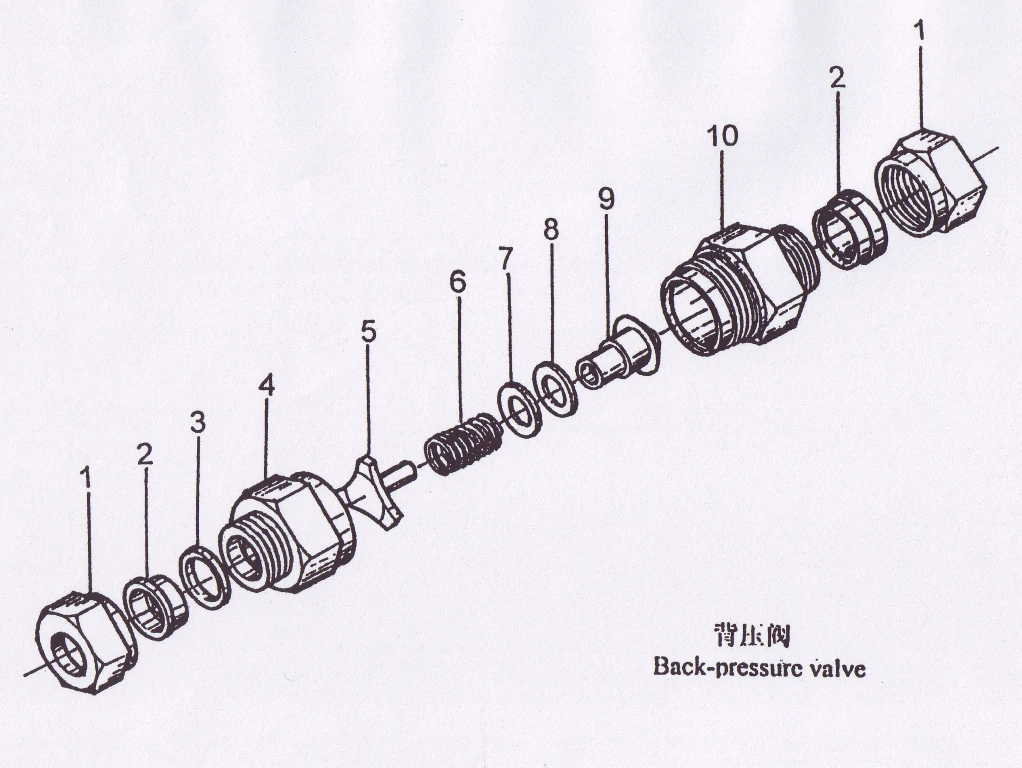

- RHZ/D18 Back-Pressure Valve

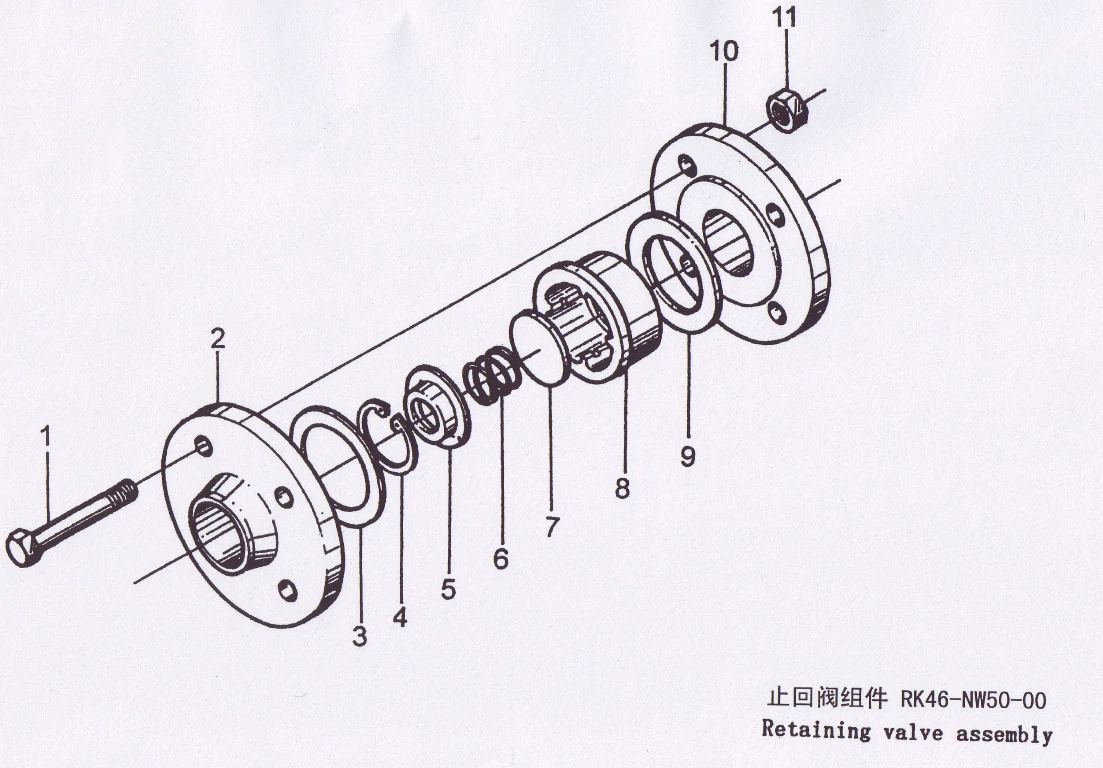

- RK46-NW50-00 Retaining Valve Assembly
- Ⅰ-Type 2-Stage Control Valve
No. | Description | Parts No. | Qty. | Remarks |
| 250 | Round nut M120*2 | GB/T12-88 | 1 | — |
| 251 | Tab washer for round nut 120 | GB/T858-88 | 1 | — |
| 252 | Input shaft | 2/0230/5108/0 | 1 | — |
| 253 | Key36*160 | GB/T1096-79 | 1 | — |
| 254 | O-ring￠Inside 139.2×5.7 | — | 1 | — |
| 256 | Circlip for shaft 160 | GB/T849.1-86 | 1 | — |
| 257 | Cylindrical roller | NU232 | 1 | 160×290×48 |
| 258 | Circlip for hole 290 | Q20-04 | 2 | — |
| 261 | Spacer ring | 4/0400/3863/0 | 1 | — |
| 262 | Spacer ring | 4/0402/0141/0 | 1 | — |
| 263 | Cylindrical roller bearing | 23228 CC/W33 | 1 | 140×250×88 |
| 264 | Disc | 4/0405/1450/0 | 1 | — |
| 265 | Screw M16*45 | GB/T70-85 | 6 | — |
| 287 | Input gear | 2/0305/5089/0 | 1 | — |
| — | Input gear z=30 | 2/0305/5088/0 | 1 | — |
| — | Input gear z=32 | 2/0305/5087/0 | 1 | — |
| — | Input gear z=34 | 2/0305/5086/0 | 1 | — |
| — | Input gear z=36 | 2/0305/5085/0 | 1 | — |
| — | Input gear z=38 | 2/0305/5084/0 | 1 | — |
| — | Input gear z=41 | 2/0305/5083/0 | 1 | — |
| — | Input gear z=44 | 2/0305/5082/0 | 1 | — |
| — | Input gear z=48 | 2/0305/5081/0 | 1 | — |
| 295 | Input flange | GWC42.45-295-1 | 1 | — |
| — | Input flange | GWC42.45-295-2 | 1 | — |
| — | Input flange | GWC42.45-295-3 | 1 | — |
| — | Input flange | GWC42.45-295-4 | 1 | — |
| — | Input flange | GWC42.45-295-5 | 1 | — |
| — | Input flange | GWC42.45-295-6 | 1 | — |
| — | Input flange | GWC42.45-295-7 | 1 | — |
| — | Input flange | GWC42.45-295-8 | 1 | — |
| — | Input flange | GWC42.45-295-9 | 1 | — |
| — | Input flange | GWC42.45-295-10 | 1 | — |
| — | Input flange | GWC42.45-295-11 | 1 | — |
| — | Input flange | GWC42.45-295-12 | 1 | — |
| — | Input flange | GWC42.45-295-13 | 1 | — |
| — | Input flange | GWC42.45-295-14 | 1 | — |
| — | Input flange | GWC42.45-295-15 | 1 | — |
| ——END—— | ||||
No. | Description | Parts No. | Qty. | Remarks |
| 170 | Circlip for shaft 140 | GB/T894.1-86 | 1 | — |
| 171 | Clutch front spacer ring | 4/0400/3839/0 | 1 | — |
| 172 | Self-aligning roller bearing | 22328 | 1 | 140×300×102 |
| 173 | Adjusting ring | 4/0402/0161/0/ | 1 | — |
| 176 | Special stud bolt | 4/0224/1090/1 | 16 | — |
| 177 | Hexagon nut M16 | DIN6915A HV10 | 32 | — |
| 178 | Right-hand clutch gear | 1/0335/0228/2 | 1 | — |
| 180 | Internal friction plate | 3/0539/0046/2 | 10 | — |
| 181 | External friction plate | 3/0530/0034/1 | 11 | — |
| 182 | Clutch gear carrier | 2/0335/0144/2 | 1 | — |
| 183 | Clutch piston | 3/0574/5004/0 | 1 | — |
| 184 | X-shaped rubber seal | 4432 | 1 | 149.9×135.9×7 |
| 185 | Supporting ring | S52029-433 | 1 | Φ Inside 141.2×6.4×1.25 |
| 186 | X-shaped rubber seal | 4451 | 1 | 292.8×278.8×7 |
| 187 | Supporting ring | S52029-451 | 1 | Φ Inside 282.2×6.4×1.25 |
| 188 | Disk | 4/0409/5004/0 | 1 | — |
| 189 | Pressure spring | 3/0991/0281/0 | 1 | — |
| 190 | Bushing | 3/0333/5008/0 | 1 | — |
| 192 | Plug – Φ7 | Q21-13 | 3 | — |
| 193 | Hexagon Socket cap head – M10×100 | GB/T70-85 | 6 | — |
| 194 | Retaining disc | 4/0406/0466/1 | 1 | — |
| 195 | O – ring – Φ Inside 136×5 | — | 1 | — |
| 196 | Hexagon Socketcap head – M6×30 | GB/T70-85 | 6 | — |
| 197 | Hexagon Socket cap head – M10×25 | GB/T70-85 | 6 | — |
| 198 | Clutch breather | 3/0931/0118/0 | 2 | — |
| 199 | Piston | 4/0903/0079/0 | 2 | — |
| 200 | Hexagon head bolt – M6×40 | GB5782-86 | 4 | — |
| 201 | Slotted set bolt – M6×8 | GB/T71-85 | 4 | — |
| 202 | Slotted set bolt – M5×10 | GB/T71-85 | 2 | — |
| 203 | Pressure spring – 0.5×4×31 | — | 2 | — |
| 204 | Flange for clutch horsing | 2/0582/0936/2 | 1 | — |
| 205 | Cylindrical pin – 16×50 | GB/T119-86 | 2 | — |
| 206 | cylindrical roller | NU234 | 1 | 170×310×52 |
| 207 | Circlip for hole 310 | Q20-04 | 1 | — |
| 208 | Clutch rear spacer ring | 4/0401/3436/0 | 1 | — |
| 209 | Key 32×100 | GB/T1096-79 | 1 | — |
| 210 | Cylindrical roller bearing | NU2326 | 2 | 130×280×93 |
| 211 | Circlip for shaft 130 | GB/T849.1-86 | 1 | — |
| 212 | Circlip for hole 280 | Q20-04 | 2 | — |
| 213 | Shaft gear outer spacer | 4/0401/3437/0 | 1 | — |
| 214 | Shaft gear inner spacer | 4/0400/3838/0 | 1 | — |
| 215 | Four-point contact ball bearing | QJ326 | 1 | 130×280×58 |
| 216 | Round nut M130×2 | GB/T812-88 | 1 | — |
| 217 | Tab washer for round nut 130 | GB/T858-88 | 1 | — |
| 218 | Holding pin | 4/0220/0554/1 | 1 | — |
| 219 | Circlip for shaft 170 | GB/T849.1-86 | 1 | — |
| 239 | Guide ring | 4/0400/5267/0 | 1 | — |
| 241 | Seal ring | 300-01-016 | 2 | — |
| 243 | Oil inlet seat | GWC42.45-02-243 | 1 | — |
| 246 | Hexagon Socket cap head M10×25 | GB/T70-85 | 6 | — |
| 249 | O – ring Φ Inside 130×3 | — | 1 | — |
| 274 | Cylinder | 1/0583/50541 | 1 | — |
| 276 | Special stud bolt | 4/0224/5050/0 | 16 | — |
| 277 | Nut M16 | GB/T6170-86 | 16 | — |
| 279 | Emergency screw | 4/0224/5049/0 | 4 | — |
| 280 | Wire Φ2.5 | YB343-94 | 2 | — |
| 281 | Pinion gear z=22 | 1/0256/0779/0 | 1 | — |
| — | Pinion gear z=28 | 1/0256/0777/0 | 1 | — |
| — | Pinion gear z=37 | 1/0256/0775/0 | 1 | — |
| 288 | Gear z=43 | 2/0301/1943/0 | 1 | — |
| — | Gear z=42 | 2/0301/1942/0 | 1 | — |
| — | Gear z=40 | 2/0301/1941/0 | 1 | — |
| — | Gear z=38 | 2/0301/1940/0 | 1 | — |
| — | Gear z=36 | 2/0301/1939/0 | 1 | — |
| — | Gear z=34 | 2/0301/1938/0 | 1 | — |
| — | Gear z=31 | 2/0301/1937/0 | 1 | — |
| — | Gear z=28 | 2/0301/1936/0 | 1 | — |
| — | Gear z=26 | 2/0301/1935/0 | 1 | — |
| 292 | Plug screw M27×2 | Q20-01 | 1 | — |
| 293 | Seal ring 27 | Q20-03A | 1 | — |
| ——END—— | ||||
No. | Description | Parts No. | Qty. | Remarks |
| 170 | Circlip for shaft 140 | GB/T894.1-86 | 1 | — |
| 171 | Clutch front spacer ring | 4/0400/3839/0 | 1 | — |
| 172 | Self-aligning roller bearing | 22328 | 1 | 140×300×102 |
| 173 | Adjusting ring | 4/0402/0161/0/ | 1 | — |
| 174 | Emergency screw | 4/0224/1068/1 | 4 | — |
| 176 | Special stud bolt | 4/0224/1090/1 | 16 | — |
| 177 | Hexagon nut M16 | DIN6915A HV10 | 32 | — |
| 179 | Clutch gear | 1/0335/0229/2 | 1 | — |
| 180 | Internal clutch gear | 3/0539/0046/2 | 10 | — |
| 181 | External clutch gear | 3/0530/0034/1 | 11 | — |
| 182 | Clutch gear carrier | 2/0335/0144/2 | 1 | — |
| 183 | Clutch piston | 3/0574/5004/0 | 1 | — |
| 184 | X – ring | 4432 | 1 | 149.9×135.9×7 |
| 185 | Supporting ring | S52029-433 | 1 | Φ Inside 141.2×6.4×1.25 |
| 186 | X – ring | 4451 | 1 | 292.8×278.8×7 |
| 187 | Supporting ring | S52029-451 | 1 | Φ Inside 282.2×6.4×1.25 |
| 188 | Disk | 4/0409/5004/0 | 1 | — |
| 189 | Pressure spring | 3/0991/0281/0 | 1 | — |
| 191 | Bushing | 3/0333/0417/0 | 1 | — |
| 192 | Plug Φ7 | Q21-13 | 3 | — |
| 193 | Hexagon Socket Cap Head M10×100 | GB/T70-85 | 6 | — |
| 195 | O – ring Φ Inside 136×5 | — | 1 | — |
| 196 | Hexagon Socketcap Head M6×30 | GB/T70-85 | 6 | — |
| 197 | Hexagon Socket Cap Head M10×25 | GB/T70-85 | 6 | — |
| 198 | Clutch Breather | 3/0931/0118/0 | 2 | — |
| 199 | Piston | 4/0903/0079/0 | 2 | — |
| 200 | Hexagon Head Bolt M6×40 | GB5782-86 | 4 | — |
| 201 | Slotted Set Bolt M6×8 | GB/T71-85 | 4 | — |
| 202 | Slotted Set Bolt M5×10 | GB/T71-85 | 2 | — |
| 203 | Pressure Spring 0.5×4×31 | — | 2 | — |
| 204 | Flange for Clutch | 2/0582/0936/2 | 1 | — |
| 205 | Cylindrical Pin 16×50 | GB/T119-86 | 2 | — |
| 206 | Cylindrical Roller | NU234 | 1 | 170×310×52 |
| 207 | Circlip for hole 310 | Q20-04 | 1 | — |
| 208 | Spacer ring | 4/0401/3436/0 | 1 | — |
| 209 | Key 32×100 | GB/T1096-79 | 1 | — |
| 210 | Cylindrical roller | NU2326 | 2 | 130×280×93 |
| 211 | Circlip for shaft 130 | GB/T849.1-86 | 1 | — |
| 212 | Circlip for hole 280 | Q20-04 | 2 | — |
| 213 | Spacer | 4/0401/3437/0 | 1 | — |
| 214 | Spacer | 4/0400/3838/0 | 1 | — |
| 215 | Four-point contact ball | QJ326 | 1 | 130×280×58 |
| 216 | Round nut M130×2 | GB/T812-88 | 1 | — |
| 217 | Tab washer for round nut 130 | GB/T858-88 | 1 | — |
| 218 | Holding pin | 4/0220/0554/1 | 1 | — |
| 219 | Circlip for shaft 170 | GB/T849.1-86 | 1 | — |
| 239 | Guide ring | 4/0400/5267/0 | 1 | — |
| 241 | Seal ring | 300-01-016 | 2 | — |
| 243 | Oil inlet seat | GWC42.45-02-243 | 1 | — |
| 246 | Hexagon Socket cap head M10×25 | GB/T70-85 | 6 | — |
| 249 | O – ring Φ Inside 130×3 | — | 1 | — |
| 275 | Cylinder | 1/0583/50541 | 1 | — |
| 278 | Disk | 4/0406/0468/1 | 1 | — |
| 280 | Wire fuse Φ2.5 | YB343-94 | 2 | — |
| 281 | Pinion gear z=22 | 1/0256/0779/0 | 1 | — |
| — | Pinion gear z=28 | 1/0256/0777/0 | 1 | — |
| — | Pinion gear z=37 | 1/0256/0775/0 | 1 | — |
| 288 | Gear z=43 | 2/0301/1943/0 | 1 | — |
| — | Gear z=42 | 2/0301/1942/0 | 1 | — |
| — | Gear z=40 | 2/0301/1941/0 | 1 | — |
| — | Gear z=38 | 2/0301/1940/0 | 1 | — |
| — | Gear z=36 | 2/0301/1939/0 | 1 | — |
| — | Gear z=34 | 2/0301/1938/0 | 1 | — |
| — | Gear z=31 | 2/0301/1937/0 | 1 | — |
| — | Gear z=28 | 2/0301/1936/0 | 1 | — |
| — | Gear z=26 | 2/0301/1935/0 | 1 | — |
| 292 | Plug screw M27×2 | Q20-01 | 1 | — |
| 293 | Seal ring 27 | Q20-03A | 1 | — |
| ——END—— | ||||
No. | Description | Parts No. | Qty. | Remarks |
| 221 | Disc | 3/0405/1432/0 | 1 | — |
| 222 | Hexagon socket cap head | GB/T70-85 | 6 | — |
| 223 | Cylindrical roller | 29430 | 2 | 150×300×90 |
| 227 | Pressure Spring | 2×10×79.5 | 6 | — |
| 230 | Spacer ring | 4/0400/3986/1 | 1 | — |
| 231 | Cylindrical roller | NU238 | 1 | 190×340×55 |
| 232 | Supporting ring 340 | Q20-04 | 1 | — |
| 233 | Spacer ring | 4/0400/3836/0 | 1 | — |
| 234 | Spacer ring | 4/0400/3835/1 | 1 | — |
| 235 | Supporting ring 360 | Q20-04 | 1 | — |
| 236 | Cylindrical roller | NU1048 | 1 | 240×360×56 |
| 238 | O – ring Φ 内 | — | 1 | 250×8 |
| 240 | Output shaft | 2/0230/3128/0 | 1 | — |
| 284 | Output gear z=88 | 2/0305/0211/0 | 1 | — |
| — | Output gear z=82 | 2/0305/0209/0 | 1 | — |
| — | Output gear z=73 | 2/0305/0207/0 | 1 | — |
| ——END—— | ||||
NO. | Description | Parts No. | Qty. | Remarks |
| 1 | Housing | 0/0112/0137/5 | 1 | — |
| 1 | Housing | 1/0112/0137/5 | 1 | — |
| 2 | Bolt M16×70 | GB/T5782-86 | 14 | — |
| 3 | Nut M16 | GB/T6170-86 | 14 | — |
| 5 | Bolt M24×190 | GB/T5782-86 | 4 | — |
| 6 | Nut M24 | GB/T6170-86 | 4 | — |
| 7 | Bolt M24×130 | GB/T5782-86 | 2 | — |
| 9 | Pin 12×50 | GB/T117-86 | 2 | — |
| 10 | Bolt M24×330 | GB/T5782-86 | 2 | — |
| 11 | Bolt M24×240 | GB/T5782-86 | 4 | — |
| 14 | Bolt M20×80 | GB/T5782-86 | 4 | — |
| 15 | Nut M20 | GB/T6170-86 | 4 | — |
| 16 | Bolt M24×150 | GB/T5782-86 | 2 | — |
| 17 | Bolt M20×60 | GB/T5783-86 | 12 | — |
| 18 | Bolt M24×240 | GB/T5782-86 | 2 | — |
| 19 | Nut M24 | GB/T6170-86 | 2 | — |
| 20 | Pin 16×80 | GB/T877-86 | 2 | — |
| 24 | Hexagon socket set screw M24×100 | GB/T79-85 | 4 | — |
| 26 | Sealing cover | 2/0434/0173/2 | 1 | — |
| 27 | Bolt M20×45 | GB/T5783-86 | 8 | — |
| 28 | Bolt M8×40 | GB/T5783-86 | 2 | — |
| 29 | Nut M8 | GB/T6170-86 | 2 | — |
| 30 | Pin 10×40 | GB/T879-86 | 2 | — |
| 32 | Cover | 2/0438/0897/1 | 1 | — |
| 33 | Bolt M20×50 | GB/T5783-86 | 8 | — |
| 35 | Nut M8 | GB/T6170-86 | 2 | — |
| 36 | Sealing cover | 2/0434/0174/3 | 1 | — |
| 37 | Bolt M20×50 | GB/T5783-86 | 8 | — |
| 38 | Bolt M8×40 | GB/T27-88 | 2 | — |
| 40 | Bearing cover | 1/0470/0211/0 | 1 | — |
| 41 | Hex. Bolt with wire M24×120 | GB/T32.1-88 | 8 | — |
| 42 | Wire fuse Φ2.5 | YB343-94 | 2 | — |
| 43 | Pin 20×130 | GB/T118-86 | 2 | — |
| 44 | Bearing cover | 2/0470/0228/0 | 1 | — |
| 45 | Hex. Bolt with wire M16×110 | GB/T32.1-88 | 3 | — |
| 46 | Wire fuse Φ2 | YB343-94 | 1 | — |
| 47 | Pin 10×120 | GB/T881-86 | 2 | — |
| 48 | Oil shroud assembly | 3/0941/0578/0 | 1 | — |
| 49 | Hex. Bolt with wire M10×15 | GB/T32.1-88 | 4 | — |
| 50 | Wire fuse Φ1.6 | YB343-94 | 2 | — |
| 53 | Dipstick assembly | 4/8053/5081/0 | 1 | — |
| 54 | Protective pipe | 4/0940/1653/0 | 1 | — |
| 59 | Inspection window | 3/0454/0018/0 | 1 | — |
| 60 | Paper gasket | 3/0985/0027/0 | 1 | — |
| 61 | Bolt M8×25 | GB/T5873-86 | 6 | — |
| 64 | Inspection window | 3/0454/0020/0 | 2 | — |
| 65 | Paper gasket | 3/0985/0032/0 | 2 | — |
| 66 | Bolt M8×25 | GB/T5873-86 | 12 | — |
| 69 | Inspection window | 3/0454/0020/0 | 1 | — |
| 70 | Paper gasket | 3/0985/0032/0 | 1 | — |
| 71 | Bolt M8×25 | GB/T5873-86 | 6 | — |
| 74 | Inspection window | 3/0454/0545/0 | 1 | — |
| 75 | Paper gasket | 3/0985/0032/0 | 1 | — |
| 76 | Bolt M8×25 | GB/T5873-86 | 6 | — |
| 78 | Oil filler assembly | GWC-78-000 | 1 | — |
| 81 | Breather cap | Q29-06 | 1 | — |
| 82 | Washer 30 | Q20-03A | 1 | — |
| 85 | Plug screw M48×2 | JB1000-77 | 3 | — |
| 86 | Washer 48 | Q20-03A | 3 | — |
| 91 | HC emblem mark | 100 HCN011-83 | 4 | — |
| 92 | Notched nai 3×10 | GB/T827-86 | 8 | — |
| 93 | Rating plate | HCN009-88 | 1 | — |
| 94 | Notched nai 3×8 | GB/T827-86 | 4 | — |
| 97 | Rotation indicator | Q25-06 | 1 | — |
| 98 | Notched nail 3×8 | GB/T827-86 | 2 | — |
| 113 | Plug screw M14×1.5 | Q20-01 | 1 | — |
| 141 | Oil feeding cover | GWC42.45-05-141 | 2 | — |
| 142 | Bolt M20×55 | GB/T5783-86 | 16 | — |
| 143 | Oil-in sleeve | GWC42.45-05-143 | 2 | — |
| 144 | Cover plate | GWC42.45-05-144 | 2 | — |
| 145 | Bolt M8×35 | GB/T5783-86 | 12 | — |
| 153 | Bolt M12×30 | GB/T5783-86 | 4 | — |
| 155 | Connecting plate | 2/0930/0644/1 | 1 | — |
| 156 | Hex. socket cap head M10×55 | GB/T70-85 | 4 | — |
| 168 | Bolt M16×25 | GB/T5783-86 | 4 | — |
| 237 | Packing | 15.9×15.9×855 | 1 | — |
| 255 | Packing | 9.5×9.5×490 | 1 | — |
| 289 | Hex. Bolt with wire hole on M10×15 | GB/T32.1-88 | 4 | — |
| 290 | Oil shroud assembly | 2/0941/5042/0 | 1 | — |
| 291 | Wire fuse Φ1.6 | YB343-94 | 2 | — |
| ——END—— | ||||
NO. | Description | Parts No. | Qty. | Remarks |
| 110 | Pump input casing | 1/0442/0516/1 | 1 | — |
| 111 | Bolt M20×40 | GB5783-86 | 8 | — |
| 112 | Tapered pin 10×30 | GB/T117-86 | 2 | — |
| 113 | Screw plug M14×1.5 | Q20-01 | 1 | — |
| 114 | Nut M16 | GB/T6170-86 | 4 | — |
| 115 | Bolt M20×40 | GB5783-86 | 10 | — |
| 116 | Bolt M20×40 | GB5783-86 | 2 | — |
| 117 | Nut M24 | GB/T6170-86 | 10 | — |
| 118 | Screw plug M14×1.5 | Q20-01 | 1 | — |
| 119 | Seal ring 33 | Q20-03A | 1 | — |
| 120 | Circlip for shaft 25 | GB894.1-86 | 1 | — |
| 121 | Washer 35×25×2 | DIN988 | 1 | — |
| 123 | Pump transmission | 3/0250/5006/1 | 1 | — |
| 124 | Circlip for shaft 34 | GB894.1-86 | 1 | — |
| 125 | Deep groove ball bearing | 6210 | 2 | 50*90*20 |
| 126 | Sleeve | 4/0333/0472/0/ | 1 | — |
| 127 | Nilos-ring | 4/0985/0664/0 | 1 | — |
| 128 | Cover plate | 3/0438/0902/1 | 1 | — |
| 129 | Stud bolt M24×250 | GB898-88 | 4 | — |
| 130 | Bolt M24×250 | GB5783-86 | 4 | — |
| 132 | Plug Φ7 | Q21-13 | 1 | — |
| 300 | Pump gear z=19 | 3/0301/5203/0 | 1 | — |
| — | Pump gear z=24 | 3/0301/2379/0 | 1 | — |
| — | Pump gear z=28 | 3/0301/2377/0 | 1 | — |
| — | Pump gear z=29 | 3/0301/2246/0 | 1 | — |
| — | Pump gear z=31 | 3/0301/5111/0 | 1 | — |
| 301 | Pump gear z=59 | 2/0301/5240/0 | 1 | — |
| — | Pump gear z=54 | 2/0301/5122/0 | 1 | — |
| — | Pump gear z=50 | 2/0301/5152/0 | 1 | — |
| — | Pump gear z=49 | 2/0301/5158/0 | 1 | — |
| — | Pump gear z=47 | 2/0301/5112/0 | 1 | — |
| ——END—— | ||||
No. | Description | Parts No. | Qty. | Remarks |
| 1 | Nut Z18 | JB1981-77 | 1/2 | 1 |
| 2 | Cover 18Ⅱ | JB1987-77 | 1/2 | 2 |
| 3 | Washer 18 | JB1002-77 | 1 | 10 |
| 4 | Valve cover | RHZ/D18-07 | 1 | 9 |
| 5 | Guide pole | RHZ/D18-06 | 1 | 8 |
| 6 | Pressure spring | RHZ/D18-05B | 1 | 7 |
| 7 | Washer | RHZ/D18-03 | 1 | 5 |
| 8 | Rubber band | RHZ/D18-02 | 1 | 4 |
| 9 | Valve pole | RHZ/D18-04 | 1 | 6 |
| 10 | Valve body | RHZ/D18-01 | 1 | 3 |
| ——END—— | ||||
No. | Description | Parts No. | Qty. | Remarks |
| 1 | Bolt M16×100 | GB21-76 | 4 | 7 |
| 2 | Flange | RK46-NW50-06 | 1 | 8 |
| 3 | Gasket | RK46-NW50-01 | 1 | 1 |
| 4 | Circlip 60 | GB893-76 | 1 | 6 |
| 5 | Spring disc | RK46-NW50-03 | 1 | 3 |
| 6 | Retaining valve spring 3.2×35×33 | RK46-NW50-05 | 1 | 5 |
| 7 | Valve | RK46-NW50-04 | 1 | 4 |
| 8 | Retaining valve | RK46-NW50-02 | 1 | 2 |
| 9 | Washer | RK46-NW50-07 | 1 | 11 |
| 10 | Flange C50×60 | DIN2633 | 1 | 10 |
| 11 | Nut M16 | GB51-76 | 1 | 9 |
| ——END—— | ||||
No. | Description | Parts No. | Qty. | Remarks |
| 1 | Bolt M10×65 | GB30-76 | 4 | 19 |
| 2 | Front valve | 3/0901/0046/0 | 1 | 2 |
| 3 | Setting screw M6×8 | GB71-76 | 4 | 21 |
| 4 | Pin 5×24 | GB119-76 | 1 | 22 |
| 5 | Washer | Q20-03A | 3 | 28 |
| 6 | Screw plug M14×1.5 | Q20-01 | 3 | 20 |
| 7 | Guide valve | 4/0903/0052/0 | 1 | 12 |
| 8 | Screw plug | 4/0903/0053/0 | 1 | 13 |
| 9 | Valve | 4/0901/0040/1 | 1 | 10 |
| 10 | Screw thread piece M6×9 | LSN60239 | 1 | 24 |
| 11 | Mix screw | 4/0224/1031/3 | 1 | 11 |
| 12 | O-ring 85×3 | — | 1 | 27 |
| 13 | Spacer | 4/0401/3589/2 | 1 | 8 |
| 14 | Piston | 4/0903/0075/0 | 1 | 4 |
| 15 | Inter pressure spring 4.5×16×232 | 4/0991/0294/1 | 1 | 6 |
| 16 | Out pressure spring 8×30.5×232 | 4/0991/0293/1 | 1 | 5 |
| 17 | Piston | 4/0903/0076/0 | 1 | 3 |
| 18 | Plug screw M10×15×2 | LSN624 | 1 | 23 |
| 19 | Valve body | 1/0901/0053/0 | 1 | 1 |
| 20 | Bolt M16×45 | GB30-76 | 8 | 17 |
| 21 | Flange cover | 4/0583/2027/0 | 2 | 9 |
| 22 | O-ring 90×4 | — | 2 | 26 |
| 23 | O-ring 62×2 | — | 1 | 25 |
| 24 | Cover | 3/0439/0043/0 | 1 | 7 |
| 25 | Bolt M10×35 | GB30-76 | 4 | 18 |
| 26 | Spring 0.8×10×30 | DIN2098 | 1 | 15 |
| ——END—— | ||||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
Engine Sale Manual
Installation Drawing
Installation Manual
Operation Manual
Parts Catalogue
Report & Certifcate
Tags:
![](/wp-content/uploads/2021/08/WhatApp-Icon.png"){kind=icon}
