Advance HC600A Marine Gearbox Parts

Oct 30, 2022 | 600 Series, 600 Over 1000kW | 0 comments

The speed input range of the Advance HC600A marine gearbox is 1000-2100 RPM, with engine input power is 1029 kW. the center distance is 320 mm, the reduction ratio range is 2.0-3.89, the transmission capacity range is 0.49 kW/RPM, the rated propeller thrust is 90 KN, and the input shaft is in the train Opposite to the output shaft.

Advance HC600A marine gearbox is composed of transmission shaft, output coupling, input coupling, oil pressure gauge, oil Filter, control system, oil pump and other important components.

Advance HC600A marine gearboxes provides three types of control system which are push-pull flexible shaft, electric control and pneumatic control for customers to choose. To meet the different requirement of coupling with different engine brand and models, Advance HC600A marine gearboxes provide different SAE size coupling and housing including SAE 00 0 1 Without, flywheel SAE 21 18 16 14 is available……

All of our Advance 600 series marine gearbox can provide CCS classification certificate, some of series can provide international classifications with extra costs which mainly including French BV, British LR, American ABS, Japanese NK , Norway DNV-GL, Russia RS, South Korea KR, Italy RINA and other classification societies.

Advantages Of Advance HC600A Marine Gearbox Parts

  • Advanced design and sophisticated manufacturing to adapt to various harsh working conditions! High-strength parts, strong ability to work under heavy loads.

  • Cylinder block and cylinder head adopt integrated design. The occurrence of engine water leakage and oil leakage is prevented, and the parts are about 40% less than other similar engines. The failure rate is greatly reduced.

  • Using forged steel camshaft and crankshaft, high-strength cylinder block design, multiple parts cast on the cylinder block, high rigidity, high pressure resistance, good reliability, and longer service life.

  • The cylinder bore adopts a platform mesh honing design. The perfect geometric structure effectively prevents oil leakage, and the use of advanced technology such as new piston ring components and gasket crimping and molding reduces oil loss.

  • The five key systems of the electronically controlled engine are all developed by DCEC, and have been applied and verified in different fields around the world to ensure the excellent economy and reliability of the product.

  • By optimizing the control strategy and combining with the actual operating conditions of the equipment, the fuel economy can be further improved.

Technical Specifications

Gearbox Model: HC600A
Input Speed: 1000-2100 r / min
Power: 1029 kW@ 2100 RPM
Center Distance: 320 mm
Trans.Capacity: 0.49 kW / rpm
Reduction Ratio: 2.0 2.48 3.00 3.58 3.89
Rated Thrust: 90 kN
Dimension: 745 mm * 1214 mm * 1126 mm
Net Weight: 1300 kg
Lead Time: 15-30 Working Days
Payment Terms: T/T ,L/C

Coming soon



Search by Part No. or Part Name



Click Kit Name to Check Part List

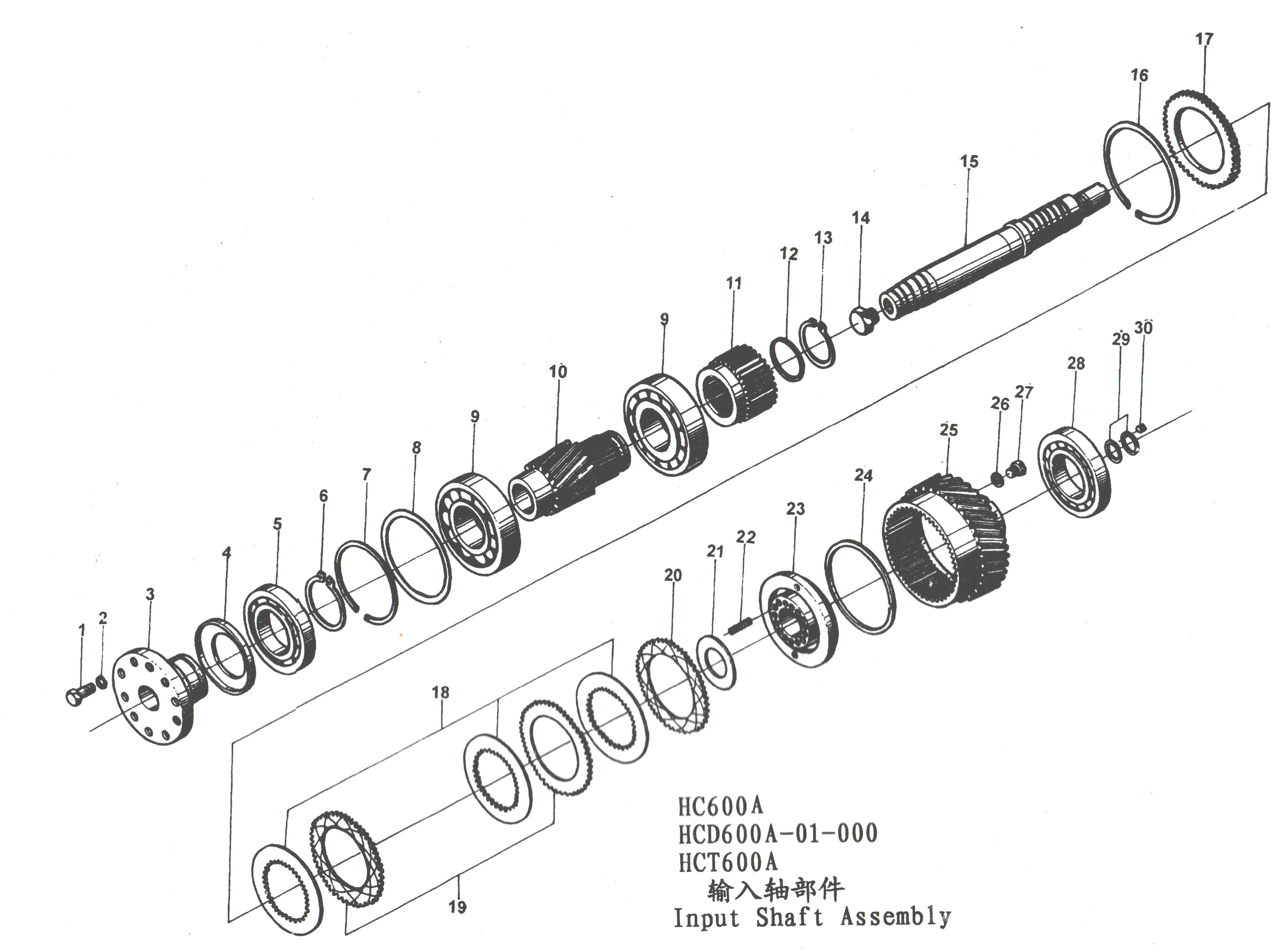

No.

Part Name

Part No.

Qty.

Remarks

1 Bolt M20×55GB5783 – 86 10 /
2 Washer 20GB93 – 87 10 /
3 Input Coupling HC600A – 01 – 001 1 /
4 Splashing Pan HC600 – 01 – 002 1 /
5 Bearing 6224 GB/T276 – 94 1 /
6 Snap Ring 120 GB894.1 – 86 1 /
7 Holding Ring HC600 – 01 – 011 1 /
8 Trimmer HC600 – 04 – 022 1-3 Spec. φ216×φ239
9 Bearing 30322 GB/T297 – 94 2 7322E Old Type
10 Pinion HC600 – 01 – 003/29 1 For HC600A i = 2
11 Pinion HC600 – 01 – 003/25 1 For HC600A i = 2.5
12 Pinion HC600 – 01 – 003/22 1 HC600A i = 3 For HCD600A i = 4.18
13 Pinion HC600 – 01 – 003/19 1 HC600A i = 3.5 For HCD600A i = 5 For HCT600A i = 7, 8
14 Pinion HC600 – 01 – 003/18 1 HCD600A i = 5.44 For HCT600A i = 7.5, 8.66
16 Clutch Bracket HC600 – 01 – 005 1 /
17 Spacer HC600 – 01 – 014 1 /
18 Snap Ring 100 GB894.1 – 86 1 /
19 Bolt Plug HC600 – 01 – 016 1 /
20 Input Shaft HC600 – 01 – 004 1 /
21 Snap Ring HC600 – 01 – 006 1 /
22 Thrust Plate HC600 – 01 – 007 1 /
23 Internal Disc MB450 – 01 – 014 9 /
24 External Disc MB450 – 01 – 013 8 /
25 Single – face Ex. Disc HC600 – 01 – 018 1 /
26 Spring Carrier HC600A – 01 – 007 1 /
27 Spring HC600A – 01 – 009A 16 /
28 Piston HC600A – 01 – 006A 1 /
29 Piston Ring HC600 – 01 – 009 1 /
30 Right – hand Transmission Gear HC600A – 01 – 005 1 /
31 Copper Washer 14 Q20 – 03 3 /
32 Bolt M14×20GB5783 – 86 3 /
33 Bearing NJ224E GB/T283 – 94 1 /
34 Sealing Ring HC600 – 01 – 013 2 /
35 Nut HC600 – 01 – 017 1 /
——END——

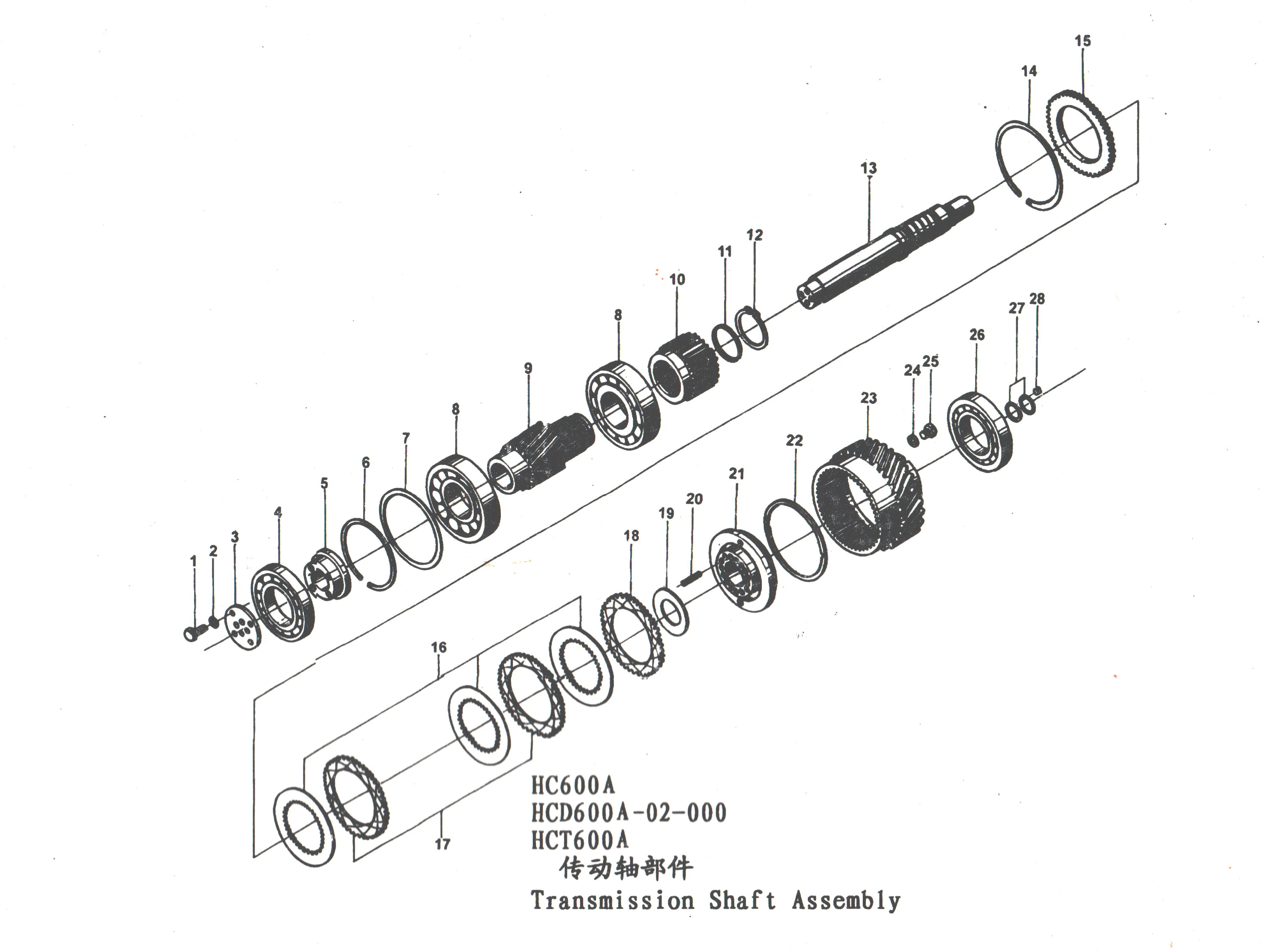

No.

Part Name

Part No.

Qty.

Remarks

1 Bolt M12×40GB5783 – 86 8 /
2 Washer 12GB93 – 87 8 /
3 Shaft End Pressure Plate HC600A – 02 – 001 1 /
4 Bearing 6224 GB/T276 – 94 1 /
5 Bearing Bracket HC600A – 02 – 003 1 /
6 Snap Ring HC600 – 01 – 011 1 /
7 Adjusting Ring HC600 – 04 – 022 0-3 Spec. φ216×φ239
8 Bearing 30322 GB/T297 – 94 2 7322E Old Type
9 Pinion HC600 – 01 – 003/29 1 For HC600A i = 2
10 Pinion HC600 – 01 – 003/25 1 For HC600A i = 2.5
11 Pinion HC600 – 01 – 003/22 1 HC600A i = 3 For HCD600A i = 4.18
12 Pinion HC600 – 01 – 003/19 1 HC600A i = 3.5 For HCD600A i = 5 For HCT600A i = 7, 8
13 Pinion HC600 – 01 – 003/18 1 ” HCD600A i = 5.44 For HCT600A i = 7.5, 8.66″
14 Clutch Bracket HC600 – 01 – 005 1 /
15 Spacer HC600 – 01 – 014 1 /
16 Snap Ring 100 GB894.1 – 86 1 /
17 Transmission Shaft HC600A – 02 – 004 1 /
18 Snap Ring HC600 – 01 – 006 1 /
19 Thrust Plate HC600 – 01 – 007 1 /
20 Internal Disc MB450 – 01 – 014 9 /
21 External Disc MB450 – 01 – 013 8 /
22 Single – face Ex. Disc HC600 – 01 – 018 1 /
23 Spring Carrier HC600A – 01 – 007 1 /
24 Spring HC600A – 01 – 009A 16 /
25 Piston HC600A – 01 – 006A 1 /
26 Piston Ring HC600 – 01 – 009 1 /
27 Left – hand Transmission Gear HC600A – 02 – 005 1 /
28 Copper Washer Q20 – 03 3 /
29 Bolt M14×20GB5783 – 86 3 /
30 Bearing NJ224E GB/T283 – 94 1 /
31 Sealing Ring HC600 – 01 – 013 2 /
32 Nut HC600 – 01 – 017 1 /
——END——

No.

Part Name

Part No.

Qty.

Remarks

1 Bearing NJ2224 GB/T283 – 94 1 /
2 Driven Gear HC600 – 03 – 102/58 1 i = 2:1
3 Output Shaft HC600 – 03 – 101 1 /
4 Spacer HC600 – 03 – 001 1 /
5 Bearing 32228 GB/T297 – 94 2 /
6 Output Coupling HC600 – 03 – 002 1 /
7 O – ring φ128×5.3 GB3452.1 – 92 1 /
8 Plate MB450 – 03 – 002 1 /
9 Lock Plate MB450 – 03 – 006 1 /
10 Bolt M24×45 GB5783 – 86 3 /
——END——

No.

Part Name

Part No.

Qty.

Remarks

1 Copper Washer 33 Q20 – 03 2 /
2 Adapter Connector T300 – 04 – 019 2 /
3 Filter Suction Pipe HC600 – 04 – 600 1 /
4 Pump Suction Pipe HC600 – 04 – 500 1 /
5 Adapter Connector HC600 – 04 – 037 2 /
6 Copper Washer 27 Q20 – 03 2 /
7 Cooler Inlet Pipe HC600 – 04 – 300 1 /
8 Cooler Outlet Pipe HCT600 – 04 – 400A 1 /
9 Connecting Screw M14×1.5 Q21 – 19 1 /
10 Copper Washer 14 Q20 – 03 2 /
11 Pressure Gauge Q06 – 01A – 200 1 /
12 Hydraulic Control Elements Q06 – 01A – 00 1 /
13 Cooler Q08 – 04 – 000 1 /
——END——

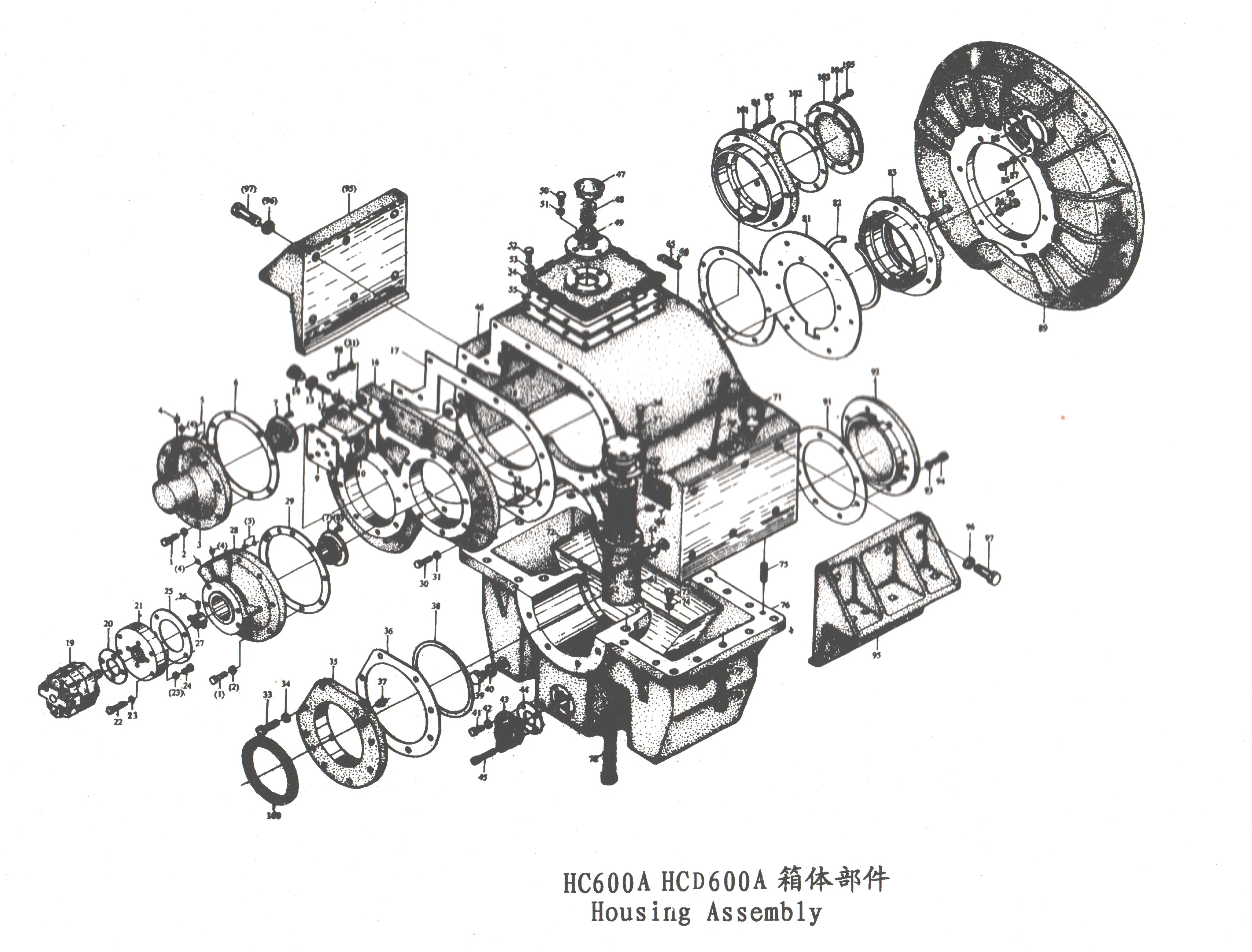

No.

Part Name

Part No.

Qty.

Remarks

1 Bolt M12×45 GB5783 – 86 16 /
2 Washer 12 GB93 – 87 16 /
3 Rear End Cover HC600A – 04 – 003 1 /
4 Plug φ10 Q21 – 38 4 /
5 O – ring 16×2.4 GB1235 – 76 4 /
6 Gasket HC600 – 04 – 028 1 /
7 Distribute Bush HC600 – 04 – 029 2 /
8 Screw M6×14 GB68 – 85 6 /
9 Upper Gasket HC600 – 04 – 002 1 /
10 Inlet Board HC600 – 04 – 004 1 Use When Manual Controlling
11 Inlet Board HC600 – 04 – 004X1 1 Use astern as ahead
12 Inlet Board HCD600 – 04 – 004 1 Use When Electromagnetic Controlling
13 Lubrication Valve HC600 – 04 – 033 1 /
14 Spring 1.4×10×35 GB2089 – 80 1 /
15 Copper Washer 20 Q20 – 03 1 /
16 Bolt HC600 – 04 – 034 1 /
17 Lower Gasket HC600 – 04 – 003 1 /
18 Rear Housing Cover HC600A – 04 – 103 1 upply as a group with upper and lower housings
19 Gasket HC600 – 04 – 024 1 /
20 Sprayer Group HC600A – 04 – 200 1 /
21 Oil Pump BB – B63A – 2 1 /
22 Oil Pump Gasket HC600 – 04 – 007 1 /
23 Connecting Plate HC600 – 04 – 032 1 /
24 Bolt M8×50 GB5783 – 86 4 /
25 Washer 8 GB93 – 87 8 /
26 Bolt M8×25 GB5783 – 86 4 /
27 Gasket HC600 – 04 – 031 1 /
28 Screw M6×10 GB73 – 85 1 /
29 Pump Coupling HC600 – 04 – 030 1 /
30 Rear End Cover HC600A – 04 – 002 1 /
31 Gasket HC600 – 04 – 027 1 /
32 Bolt M12×45 GB5783 – 86 13 /
33 Washer 12 GB93 – 87 14 /
34 Pin B16×50 GB118 – 86 2 /
35 Bolt M16×60 GB5782 – 86 8 /
36 Washer 16 GB93 – 87 8 /
37 Rear End Cover HC600 – 04 – 020 1 /
38 Gasket HC600 – 04 – 021 1 /
39 Oil Cup M10×1 GB1152 – 79 1 /
40 Regulating Plate HC600 – 04 – 022 1-2 Spec. φ226×φ249
41 Drain Plug M22 Q21 – 15 1 /
42 Copper Washer 22 Q20 – 03 1 /
43 Bolt M8×25 GB5783 – 86 2 /
44 Washer 8 GB93 – 87 2 /
45 Suction Pipe Flange T300 – 04 – 016 1 /
46 Filter Gasket 300 – 04 – 204 1 /
47 Hexigon Screw M8×60 GB70 – 85 2 /
48 Upper Housing HC600A – 04 – 101 1 Supply as a group with lower housing and rear housing
49 Breather Cover MB450 – 04 – 501 1 /
50 Breather Stem MB450 – 04 – 503 2 /
51 Breather Carrier MB450 – 04 – 502 1 /
52 Bolt M8×30 GB5783 – 86 4 /
53 Washer 8 GB93 – 87 4 /
54 Bolt M8×25 GB5783 – 86 12 /
55 Washer 8 GB93 – 87 12 /
56 Cover Plate HC600 – 04 – 005 1 /
57 Gasket HC600 – 04 – 006 1 /
58 Bolt M8×25 GB5783 – 86 4 /
59 Washer 8 GB93 – 87 4 /
60 Strainer Cover T300 – 04 – 022 1 /
61 Gasket MB270 – 04 – 302A 1 /
62 Filter WU – 100×180 – J 1 /
63 Filter Case T300 – 04 – 021 1 /
64 Bolt M12×70 GB5782 – 86 2 /
65 Washer 12 GB93 – 87 2 /
66 Spacer Block HCT600 – 04 – 010 2 /
67 Steering Plate Q25 – 06 1 /
68 Rivet 2×6 GB827 – 86 6 /
69 Straight Pin 3×20 GB119 – 86 1 /
70 Dipstick Handle 135 – 04 – 601 1 /
71 O – ring 16×2.4 GB1235 – 76 1 /
72 Dipstick MB320 – 04 – 201 1 /
73 Eye Screw M24 GB825 – 88 1 /
74 Splash Cover HC600 – 04 – 010 1 /
75 Bolt M10×20 GB5783 – 86 4 /
76 Washer 10 GB93 – 87 4 /
77 Pin B16×50 GB118 – 86 2 /
78 Lower Housing HC600 – 04 – 102 1 Supply as a group with upper housing and rear housing
79 Washer 24 GB93 – 87 4 /
80 Bolt M24×180 GB5782 – 86 4 /
81 Washer 20 GB93 – 87 18 /
82 Bolt M20×75 GB5782 – 86 18 /
83 Case Gasket HC600 – 04 – 018 1 /
84 Holding Ring HC600 – 01 – 011 1 /
85 Front Cover HC600A – 01 – 002 1 /
86 Washer 12 GB93 – 87 21 /
87 Bolt M12×55 GB5783 – 86 8 /
88 Screw M6×12 GB67 – 76 2 /
89 Washer 6 GB93 – 87 2 /
90 Cover Plate 1601 – 0018 1 /
91 Front Plate HC600A – 04 – 004 1 Used without bell housing
92 Front Plate HCD600A – 04 – 002 1 Used without bell housing
93 Bell Housing (0#) HC600A – 04 – 001X₁ 1 For SAE 16″/18″ flywheel
94 Bell Housing (1d) HC600A – 04 – 001X₂ 1 /
95 Bell Housing (00#) HC600A – 04 – 001X₃ 1 For SAE 16″/18″ flywheel
96 Bolt M12×55 GB5783 – 86 13 /
97 Front Cover Gasket HC600 – 04 – 012 1 /
98 Front Cover HC600 – 04 – 011 1 /
99 Washer 12 GB93 – 87 8 /
100 Bolt M12×35 GB5783 – 86 8 /
101 Supporter HC600 – 04 – 009 2 /
102 Washer 24 GB93 – 87 12 /
103 Bolt M24×65 GB5783 – 86 12 /
104 Bolt M12×55 GB70 – 85 1 /
105 Pin HC600 – 04 – 001 1 /
106 Cased Seal PD170×200×16 JB2600 – 80 2 /
107 Front End Cover HC600A – 02 – 002 1 /
108 Front Cover Gasket HCT500A – 04 – 011 1 /
109 Front Cover Plate HCT600A – 04 – 010 1 /
110 Washer 6GB93 – 87 8 /
111 Bolt M6×20GB5783 – 86 8 /
112 Nameplate 100×100Q25 – 13 1 /
——END——

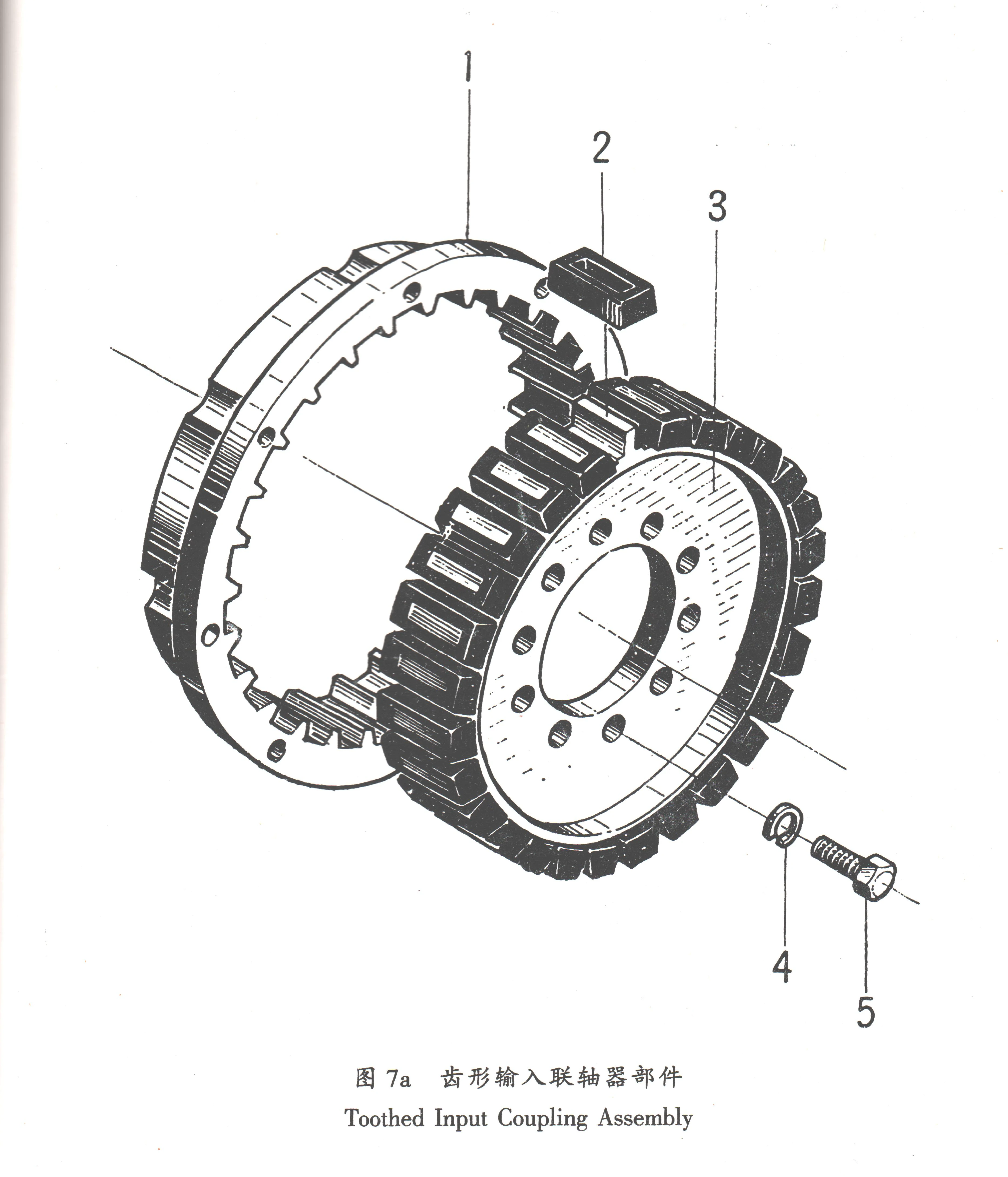

No.

Part Name

Part No.

Qty.

Remarks

1 Internal Toothed Ring Q05 – 17 – 02 1 For SAEJ620d16 flywheel
2 Internal Toothed Ring Q05 – 17 – 02X₁ 1 For SAEJ620d18 flywheel
3 Internal Toothed Ring Q05 – 17 – 02X₂ 1 For SAEJ620d21 flywheel
4 Internal Toothed Ring Q05 – 17 – 02X₃ 1 For national 8170 engine etc.
5 Toothed Rubber Block Q25 – 06 – 04 28 /
6 External Toothed Ring Q05 – 17 – 01 1 /
7 Washer 20GB93 – 87 10 /
8 Bolt M20×45 GB5783 – 86 10 /
——END——

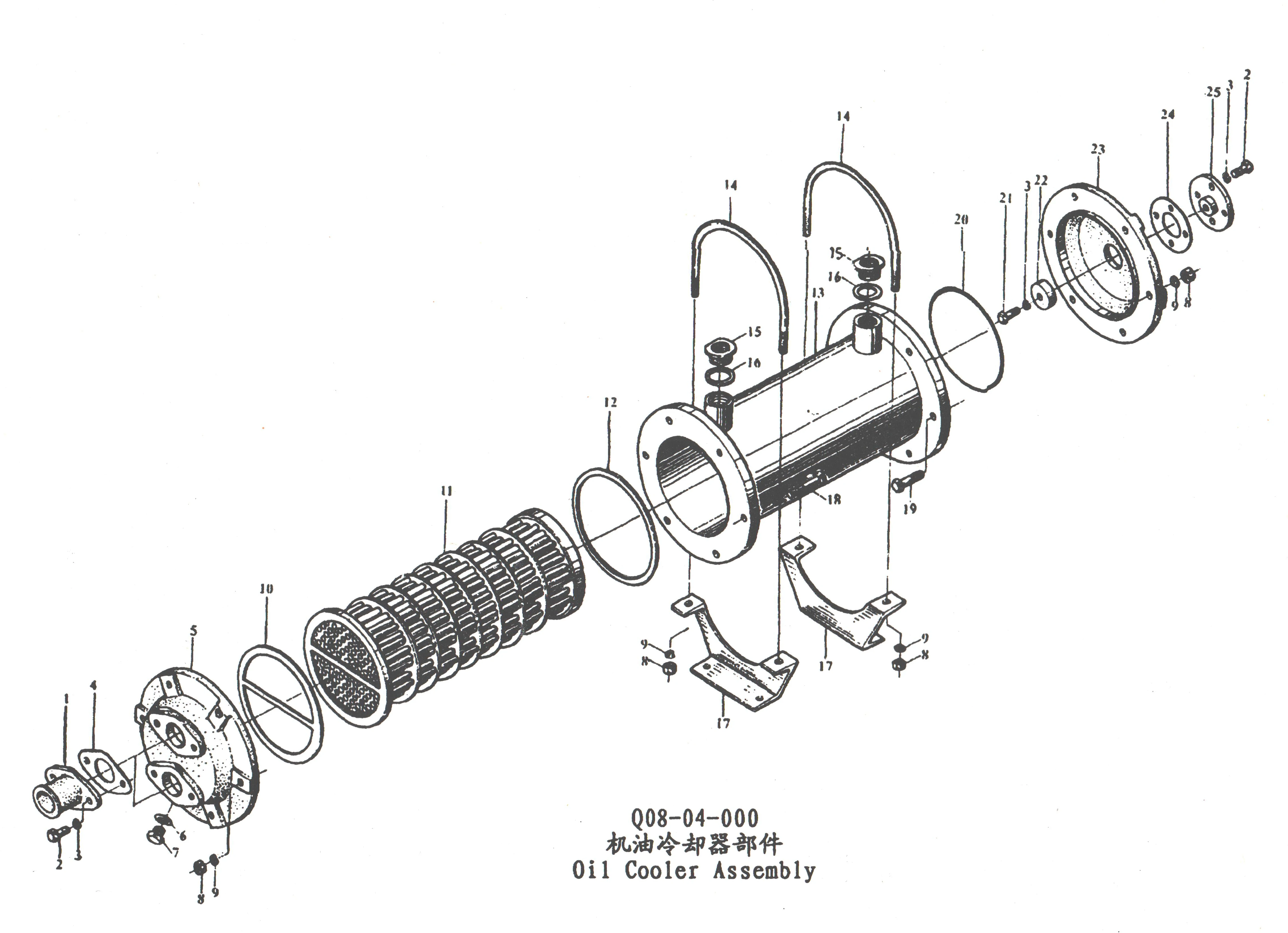

No.

Part No.

Part Name

Qty.

Remarks

1 Q08 – 04 – 11 Inlet and Outlet Joint 2 /
2 GB5782 – 86 M8x20 Bolt 8 /
3 GB93 – 87 Washer 8 9 /
4 Q08 – 04 – 10 Gasket 2 /
5 Q08 – 04 – 01 Front Cover 1 /
6 Q20 – 23 Copper Washer 14 1 /
7 Q20 – 01 M14x1.5 Plug 1 /
8 GB6170 – 86 M10 Nut 16 /
9 GB93 – 87 Washer 10 16 /
10 Q08 – 04 – 02 Gasket 1 /
11 Q08 – 04 – 100 Cooler Assembly 1 /
12 Q08 – 04 – 03 Gasket 1 /
13 Q08 – 04 – 200 Case Assembly 1 /
14 Q08 – 04 – 09 Holddown Bolt 2 /
15 Q08 – 04 – 12 Coupling Sleeve 2 /
16 Q20 – 03 Copper Washer 27 2 /
17 Q08 – 04 – 08 Supporter 2 /
18 GB5782 – 86 M10x55 Bolt 6 /
19 GB5782 – 86 M10x50 Bolt 6 /
20 GB3452.1 – 82 “O” – ring 14.5×7 1 /
21 GB5782.1 – 86 M8x25 Bolt 1 /
22 Q08 – 04 – 07 Spelter 1 /
23 Q08 – 04 – 04 Rear Cover 1 /
24 Q08 – 04 – 05 Bottom Plate 1 /
25 Q08 – 04 – 06 Cover 1 /
——END——

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.

The picture of Sale Manual showing the accessories and scopes of supply.

Engine Sale Manual

The picture of Installation Drawing showing the accessories and scopes of supply.

Installation Drawing

The picture of Installation Manual showing the accessories and scopes of supply.

Installation Manual

The picture of Operation Manual showing the accessories and scopes of supply.

Operation Manual

The picture of Engine Parts Catalogue showing the accessories and scopes of supply.

Parts Catalogue

The picture of Test Report and Certifcate showing the accessories and scopes of supply.

Report & Certifcate

Tags:

Global Activity

WhatsApp Online logo

Online Service


Sales Manager-Mrs.Wendy Fu

Sales Director-Mr.Jasper Lee

Parts Service-PartMac

Technical Service

Contact EMAC Now!

Pin It on Pinterest
