Advance HCT600A Marine Gearbox Parts

Oct 28, 2022 | 600 Series, 600 500-1000kW | 0 comments

← Advance HCT600A/1 Marine Gearbox Advance HCD600A Marine Gearbox Parts →

The speed input range of the Advance HCT600A marine gearbox is 1000-2100 RPM, with engine input power from 611.1 kW to 945 kW. the center distance is 415 mm, the reduction ratio range is 6.06-9.35, the transmission capacity range is 0.291-0.45 kW/RPM, the rated propeller thrust is 90 KN, and the input shaft is in the train Opposite to the output shaft.

Advance HCT600A marine gearbox is composed of transmission shaft, output coupling, input coupling, oil pressure gauge, oil Filter, control system, oil pump and other important components.

Advance HCT600A marine gearboxes provides three types of control system which are push-pull flexible shaft, electric control and pneumatic control for customers to choose. To meet the different requirement of coupling with different engine brand and models, Advance HCT600A marine gearboxes provide different SAE size coupling and housing including SAE 00 0 1 Without, flywheel SAE 21 18 16 14 is available……

All of our Advance 600 series marine gearbox can provide CCS classification certificate, some of series can provide international classifications with extra costs which mainly including French BV, British LR, American ABS, Japanese NK , Norway DNV-GL, Russia RS, South Korea KR, Italy RINA and other classification societies.

Advantages Of Advance HCT600A Marine Gearbox Parts

Advanced design and sophisticated manufacturing to adapt to various harsh working conditions! High-strength parts, strong ability to work under heavy loads.
Cylinder block and cylinder head adopt integrated design. The occurrence of engine water leakage and oil leakage is prevented, and the parts are about 40% less than other similar engines. The failure rate is greatly reduced.
Using forged steel camshaft and crankshaft, high-strength cylinder block design, multiple parts cast on the cylinder block, high rigidity, high pressure resistance, good reliability, and longer service life.
The cylinder bore adopts a platform mesh honing design. The perfect geometric structure effectively prevents oil leakage, and the use of advanced technology such as new piston ring components and gasket crimping and molding reduces oil loss.
The five key systems of the electronically controlled engine are all developed by DCEC, and have been applied and verified in different fields around the world to ensure the excellent economy and reliability of the product.
By optimizing the control strategy and combining with the actual operating conditions of the equipment, the fuel economy can be further improved.

Technical Specifications

Gearbox Model:	HCT600A
Input Speed:	1000-2100 r / min
Power:	611.1-945 kW@ 2100 RPM
Center Distance:	415 mm
Trans.Capacity:	0.291-0.45 kW / rpm
Reduction Ratio:	6.06-9.35
Rated Thrust:	90 kN
Dimension:	921 mm * 1214 mm * 1271 mm
Net Weight:	1650 kg
Lead Time:	15-30 Working Days
Payment Terms:	T/T ,L/C

Coming soon

Browser not compatible.

Search by Part No. or Part Name

Click Kit Name to Check Part List

No.	Part Name	Part No.	Qty.	Remarks
1	Bolt	M20×55GB5783 – 86	10	/
2	Washer	20GB93 – 87	10	/
3	Input Coupling	HC600A – 01 – 001	1	/
4	Splashing Pan	HC600 – 01 – 002	1	/
5	Bearing	6224 GB/T276 – 94	1	/
6	Snap Ring	120 GB894.1 – 86	1	/
7	Holding Ring	HC600 – 01 – 011	1	/
8	Trimmer	HC600 – 04 – 022	1-3	Spec. φ216×φ239
9	Bearing	30322 GB/T297 – 94	2	7322E Old Type
10	Pinion	HC600 – 01 – 003/21	1	HCD600A i = 4.43 For HCT600A i = 6
11	Pinion	HC600 – 01 – 003/20	1	HCD600A i = 4.7 For HCT600A i = 6.5
12	Pinion	HC600 – 01 – 003/19	1	HC600A i = 3.5 For HCD600A i = 5 For HCT600A i = 7, 8
13	Pinion	HC600 – 01 – 003/18	1	HCD600A i = 5.44 For HCT600A i = 7.5, 8.66
14	Pinion	HC600 – 01 – 003/17	1	HCD600A i = 5.71 For HCT600A i = 9.35
15	Clutch Bracket	HC600 – 01 – 005	1	/
16	Spacer	HC600 – 01 – 014	1	/
17	Snap Ring	100 GB894.1 – 86	1	/
18	Bolt Plug	HC600 – 01 – 016	1	/
19	Input Shaft	HC600 – 01 – 004	1	/
20	Snap Ring	HC600 – 01 – 006	1	/
21	Thrust Plate	HC600 – 01 – 007	1	/
22	Internal Disc	MB450 – 01 – 014	9	/
23	External Disc	MB450 – 01 – 013	8	/
24	Single – face Ex. Disc	HC600 – 01 – 018	1	/
25	Spring Carrier	HC600A – 01 – 007	1	/
26	Spring	HC600A – 01 – 009A	16	/
27	Piston	HC600A – 01 – 006A	1	/
28	Piston Ring	HC600 – 01 – 009	1	/
29	Right – hand Transmission Gear	HC600A – 01 – 005	1	/
30	Copper Washer	14 Q20 – 03	3	/
31	Bolt	M14×20GB5783 – 86	3	/
32	Bearing	NJ224E GB/T283 – 94	1	/
33	Sealing Ring	HC600 – 01 – 013	2	/
34	Nut	HC600 – 01 – 017	1	/
——END——

No.	Part Name	Part No.	Qty.	Remarks
1	Bolt	M12×40GB5783 – 86	8	/
2	Washer	12GB93 – 87	8	/
3	Shaft End Pressure Plate	HC600A – 02 – 001	1	/
4	Bearing	6224 GB/T276 – 94	1	/
5	Bearing Bracket	HC600A – 02 – 003	1	/
6	Snap Ring	HC600 – 01 – 011	1	/
7	Adjusting Ring	HC600 – 04 – 022	0-3	Spec. φ216×φ239
8	Bearing	30322 GB/T297 – 94	2	7322E Old Type
9	Pinion	HC600 – 01 – 003/21	1	HCD600A i = 4.43 For HCT600A i = 6
10	Pinion	HC600 – 01 – 003/20	1	HCD600A i = 4.7 For HCT600A i = 6.5
11	Pinion	HC600 – 01 – 003/19	1	HC600A i = 3.5 For HCD600A i = 5 For HCT600A i = 7, 8
12	Pinion	HC600 – 01 – 003/18	1	HCD600A i = 5.44 For HCT600A i = 7.5, 8.66
13	Pinion	HC600 – 01 – 003/17	1	HCD600A i = 5.71 For HCT600A i = 9.35
14	Clutch Bracket	HC600 – 01 – 005	1	/
15	Spacer	HC600 – 01 – 014	1	/
16	Snap Ring	100 GB894.1 – 86	1	/
17	Transmission Shaft	HC600A – 02 – 004	1	/
18	Snap Ring	HC600 – 01 – 006	1	/
19	Thrust Plate	HC600 – 01 – 007	1	/
20	Internal Disc	MB450 – 01 – 014	9	/
21	External Disc	MB450 – 01 – 013	8	/
22	Single – face Ex. Disc	HC600 – 01 – 018	1	/
23	Spring Carrier	HC600A – 01 – 007	1	/
24	Spring	HC600A – 01 – 009A	16	/
25	Piston	HC600A – 01 – 006A	1	/
26	Piston Ring	HC600 – 01 – 009	1	/
27	Left – hand Transmission Gear	HC600A – 02 – 005	1	/
28	Copper Washer	Q20 – 03	3	/
29	Bolt	M14×20GB5783 – 86	3	/
30	Bearing	NJ224E GB/T283 – 94	1	/
31	Sealing Ring	HC600 – 01 – 013	2	/
32	Nut	HC600 – 01 – 017	1	/
——END——

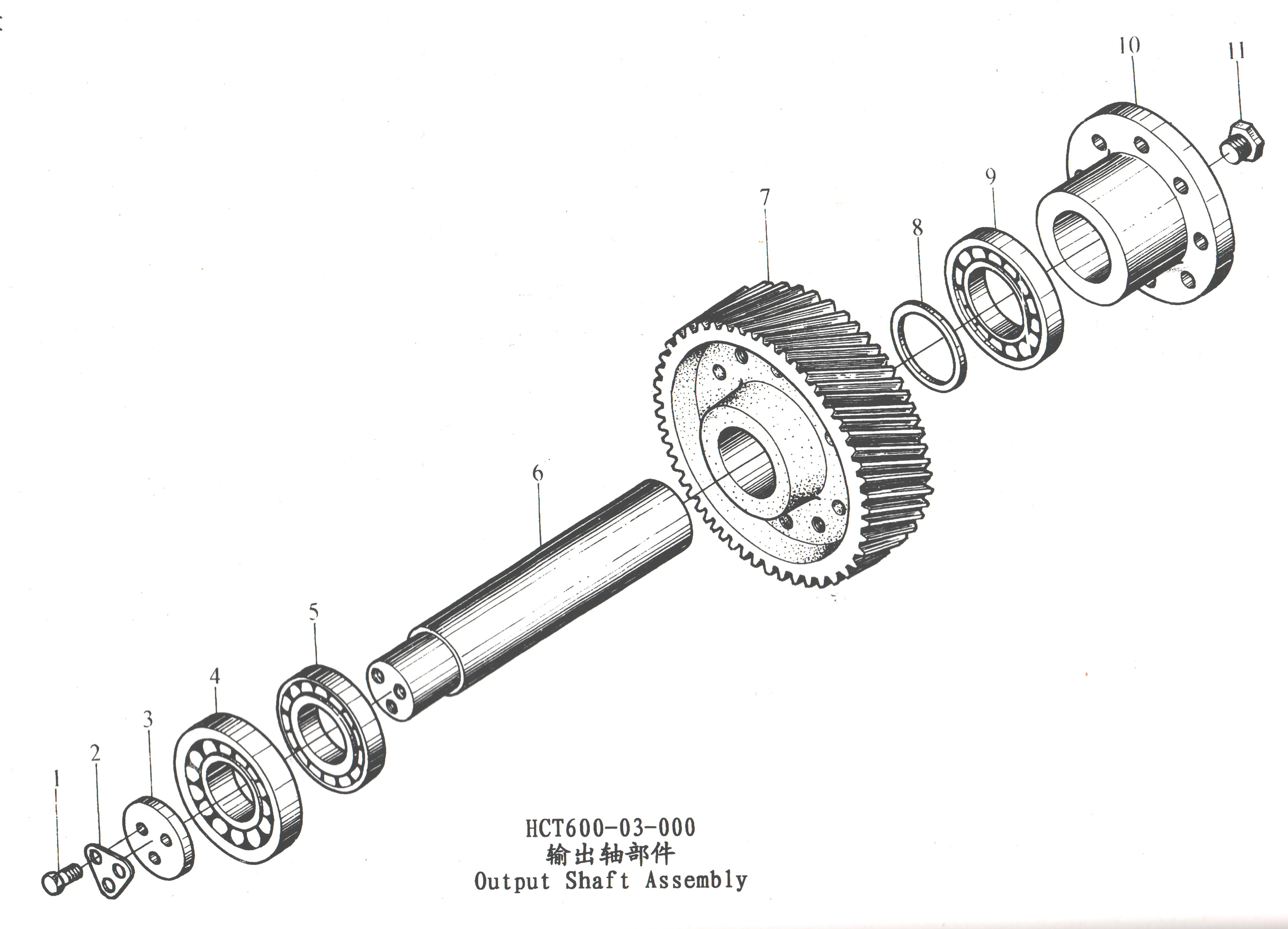

No.	Part Name	Part No.	Qty.	Remarks
1	Bolt	M24×55 GB5783 – 86	3	/
2	Lock Plate	HCT600 – 03 – 001	1	/
3	Baffle	HCT600 – 03 – 002	1	/
4	Bearing	31324 GB/T297 – 94	1	/
5	Bearing	32224 GB/T297 – 94	1	/
6	Output Shaft	HCT600 – 03 – 101	1	/
7	Output Shaft Gear	HCT600 – 03 – 102/53	1	For i = 6,6.5,7,7.5
8	Output Shaft Gear	HCT600 – 03 – 102/55	1	For i = 8,8.66,9.35
9	Spacer	HCT600 – 03 – 003	1	/
10	Bearing	NJ2228 GB/T283 – 94	1	/
11	Output Coupling	HCT600 – 03 – 004	1	/
12	Bolt Plug	HC600 – 01 – 016	1	/
——END——

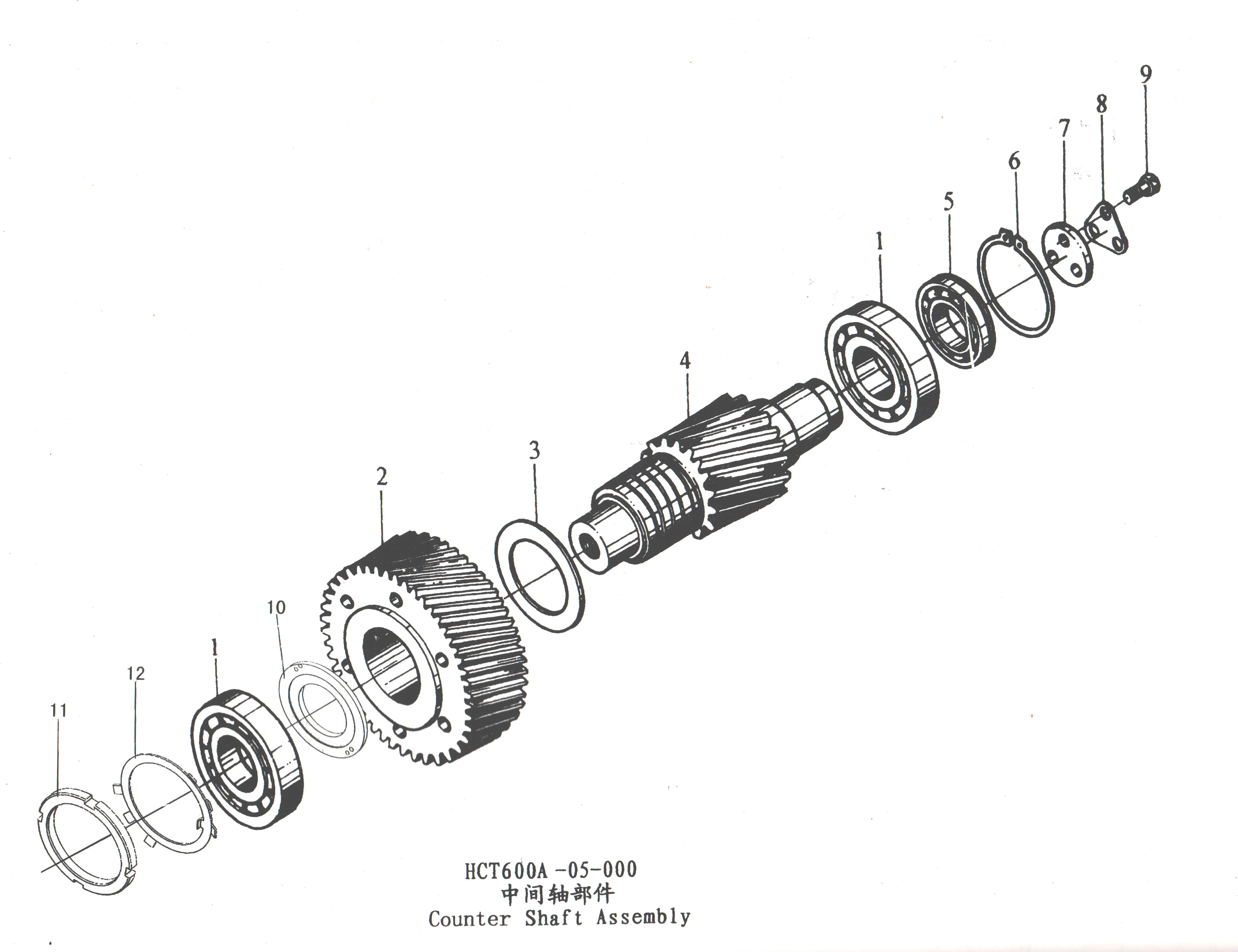

No.	Part Name	Part No.	Qty.	Remarks
1	Bearing	NJ2320E GB/T283 – 94	2	/
2	Counter Shaft Gear	HCT600 – 05 – 002/48	1	i = 6
3	Counter Shaft Gear	HCT600 – 05 – 002/49	1	i = 6.5
4	Counter Shaft Gear	HCT600 – 05 – 002/50	1	i = 7, 8
5	Counter Shaft Gear	HCT600 – 05 – 002/51	1	i = 7.5, 8.66
6	Counter Shaft Gear	HCT600 – 05 – 002/52	1	i = 9.35
7	Washer	HCT400A – 03 – 006	1	/
8	Gear Shaft	HCT600A – 05 – 001/18	1	i = 8, 8.66, 9.35
9	Gear Shaft	HCT600A – 05 – 001/20	1	i = 6, 6.5, 7, 7.5
10	Bearing	6218N GB/T277 – 94	1	/
14	Bolt	M14×45 GB 5783 – 86	3	/
15	Spacex	HCT600A – 05 – 004	1	/
16	Nut	M100×2 GB810 – 88	1	/
17	Washer	100 GB858 – 88	1	/
——END——

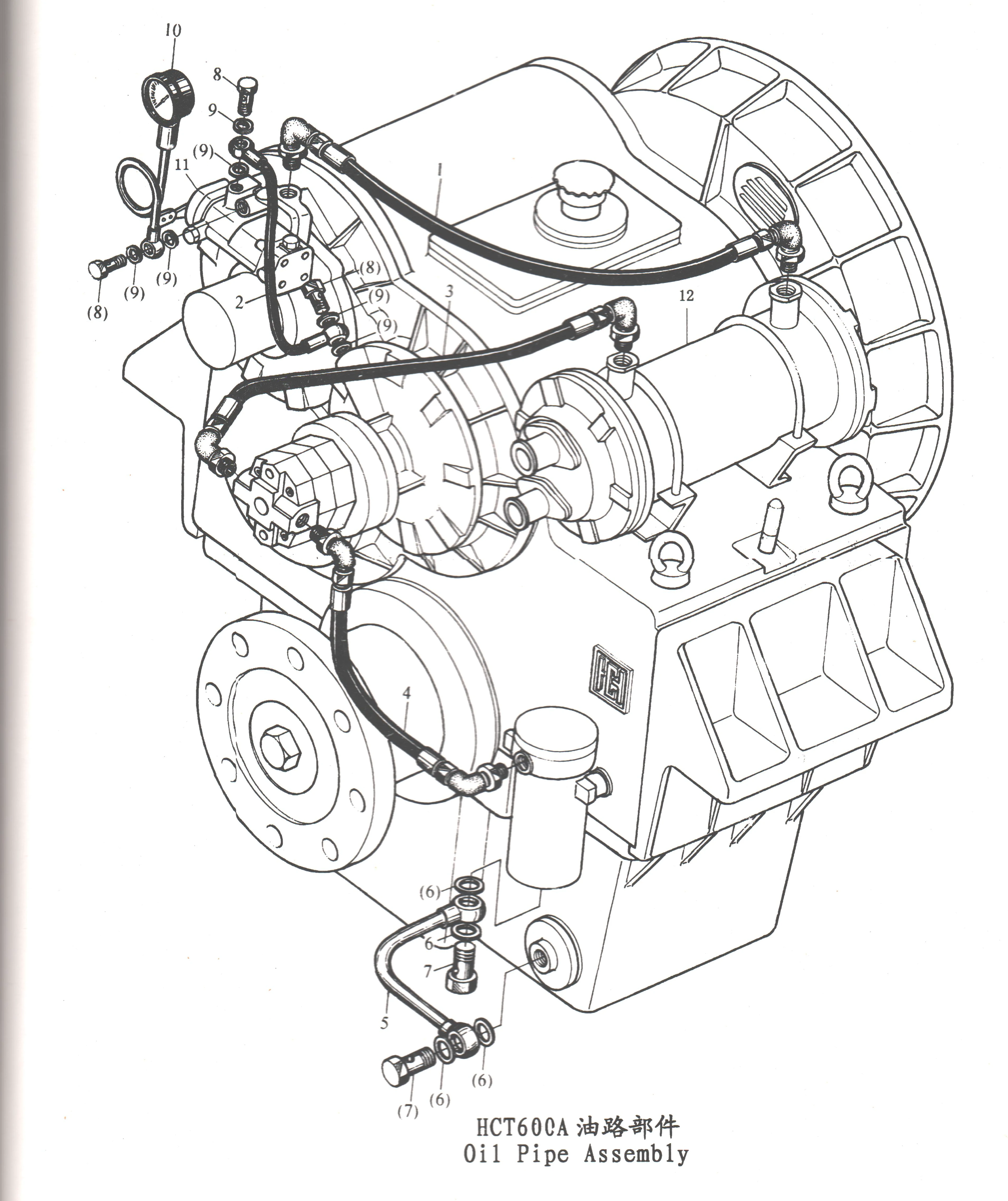

No.	Part Name	Part No.	Qty.	Remarks
1	Cooler Outlet Pipe	HCT600 – 04 – 400A	1	/
2	Working Oil Pipe	125 – 00 – 100	1	/
3	Cooler Inlet Pipe	HC600 – 04 – 300	1	/
4	Pump Suction Pipe	HCD600 – 04 – 500	1	/
5	Filter Suction Pipe	HCT600 – 04 – 700	1	/
6	Copper Washer	33 Q20 – 03	4	/
7	Connecting Screw	M33x2 Q21 – 31	2	/
8	Connecting Screw	M14x1.5 Q21 – 19	3	/
9	Copper Washer	14 Q20 – 03	6	/
10	Pressure Gauge Group	Q06 – 01A – 200	1	/
11	Hydraulic Control Elements	Q06 – 01A – 00	1	/
12	Cooler	Q08 – 04 – 000	1	/
——END——

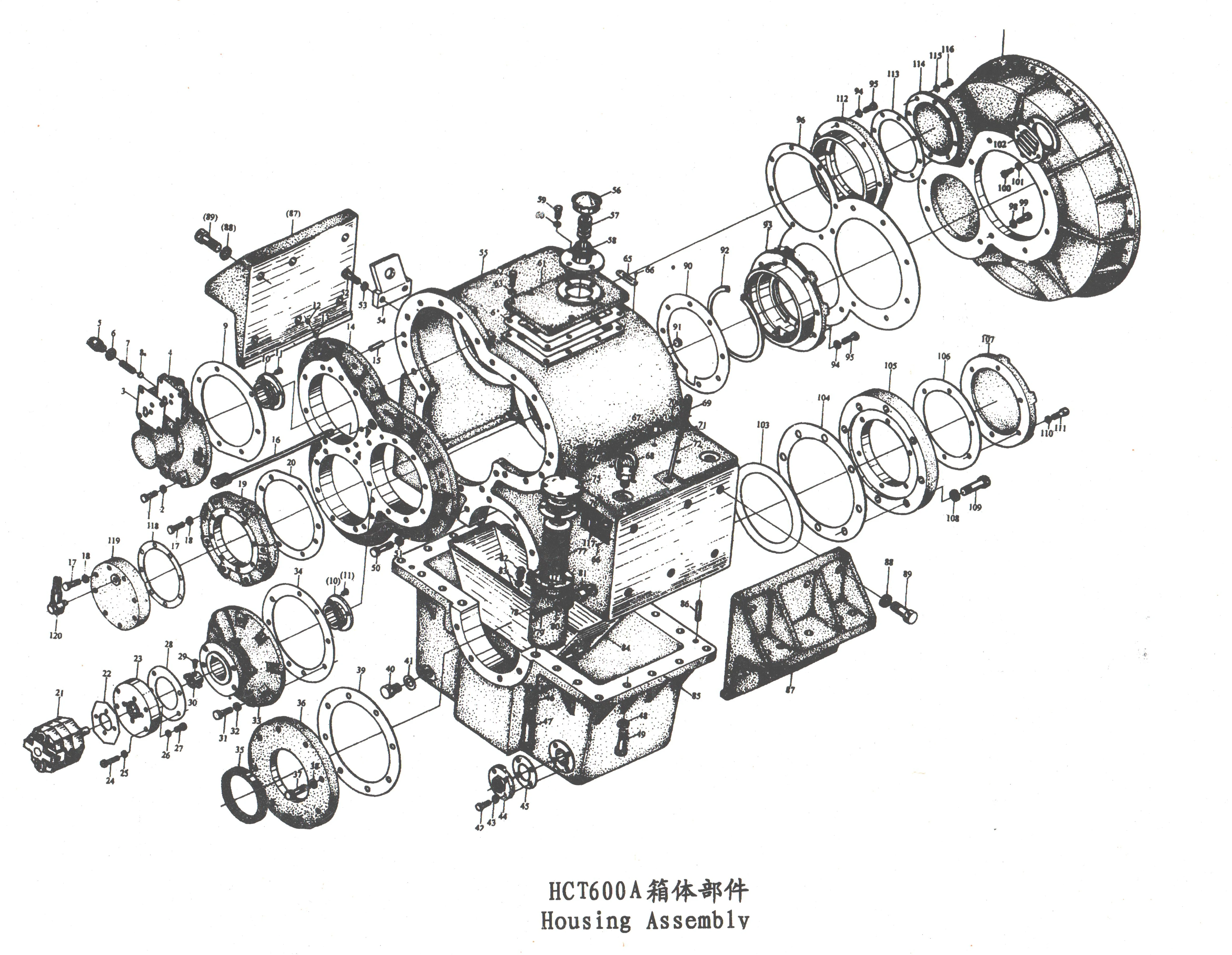

No.	Part Name	Part No.	Qty.	Remarks
1	Bolt	M12×40 GB5783 – 86	8	/
2	Washer	12 GB93 – 87	8	/
3	Gasket	Q06 – 01A – 12	1	/
4	Rear End Cover	HCT600A – 04 – 002	1	/
5	Nut	HCT600 – 04 – 006	1	/
6	Washer	22 Q20 – 03	1	/
7	Spring	1.2×12×64 GB2089 – 80	1	/
8	Steel Ball	φ13 GB308 – 89	1	/
9	Gasket	HCT600 – 04 – 005	1	/
10	Distribute Bush	HC600 – 04 – 029	2	/
11	Screw	M6×14 GB68 – 85	6	/
12	Plug	φ10 Q21 – 43	1	/
13	Orifice Plug	HCT600 – 04 – 024	1	/
14	Rear Housing	HCT600A – 04 – 102	1	Supply as a group with upper housing and lower housing
15	Pin	B16×50 GB118 – 86	2	/
16	Sprayer Group	HCT600A – 04 – 300	1	/
17	Bolt	M12×70 GB5783 – 86	16	/
18	Washer	12 GB93 – 87	16	/
19	Rear End Cover	HCT600A – 04 – 001	1	/
20	Gasket	HCT600 – 04 – 002	1	/
21	Oil Pump	BB – B63A – 2	1	/
22	Gasket	HC600 – 04 – 036	1	/
23	Connecting Board	HC600 – 04 – 032	1	/
24	Bolt	M8×50 GB5783 – 86	4	/
25	Washer	8 GB93 – 87	4	/
26	Washer	8 GB93 – 87	4	/
27	Bolt	M8×25 GB5783 – 86	4	/
28	Gasket	HC600 – 04 – 031	1	/
29	Screw	M6×10 GB73 – 85	1	/
30	Pump Coupling	HC600 – 04 – 030	1	/
31	Bolt	M12×40 GB5783 – 86	8	/
32	Washer	12 GB93 – 87	8	/
33	Rear End Cover	HCT600A – 04 – 007	1	/
34	Gasket	HCT600 – 04 – 022	1	/
35	Cased Seal	PD140×170×16 JB2600 – 80	1	/
36	Rear End Cover	HCT600 – 04 – 008	1	/
37	Bolt	M14x50 GB5783 – 86	8	/
38	Washer	14 GB93 – 87	8	/
39	Gasket	HCT600 – 04 – 009	1	/
40	Drain Plug	M22x1.5 Q21 – 15	1	/
41	Copper Washer	22 Q20 – 03	1	/
42	Bolt	M8x25 GB5783 – 86	4	/
43	Washer	8 GB93 – 87	4	/
44	Flange	HCT600 – 04 – 026	1	/
45	Gasket	300 – 04 – 204	1	/
46	Washer	24 GB93 – 87	4	/
47	Bolt	M24x170 GB5782 – 86	2	/
47	Bolt	M24x140 GB5782 – 86	2	/
48	Washer	20 GB93 – 87	18	/
49	Bolt	M20x65 GB5783 – 86	18	/
50	Stud	M14x40 GB899 – 88	22	/
51	Nut	M14 GB6170 – 86	22	/
52	Washer	14 GB93 – 87	23	/
53	Bolt	M16x40 GB5783 – 86	2	/
54	Washer	16 GB93 – 87	2	/
55	Eye Ring	HCT600 – 04 – 003	1	/
56	Upper Housing	HCT600A – 04 – 101	1	Supply as a group with lower and rear housings
57	Breather Cover	MB450 – 04 – 501	1	/
58	Breather Stem	MB450 – 04 – 503	1	/
59	Breather Carrier	MB450 – 04 – 502	1	/
60	Bolt	M8x20 GB5783 – 86	4	/
61	Washer	8 GB93 – 87	4	/
62	Cover Plate	HCT600 – 4 – 019	1	/
63	Bolt	M8x30 GB5783 – 86	8	/
64	Washer	8 GB93 – 87	8	/
65	Gasket	HCT600 – 04 – 020	1	/
66	Steering Plate	Q25 – 06	1	/
67	Rivet	2×6 GB827 – 86	6	/
68	Spacer Block	HCT600 – 04 – 007	4	/
69	Eye Screw	M24 GB825 – 88	2	/
70	Dipstick Handle	135 – 04 – 601	1	/
71	Straight Pin	3×20 GB119 – 86	1	/
72	O – ring	16×2.4 GB1235 – 76	1	/
73	Dipstick	HCT600 – 04 – 201	1	/
74	Bolt	M8x25 GB5783 – 86	4	/
75	Washer	8 GB93 – 87	4	/
76	Filter Cover	T300 – 04 – 202	/
77	Gasket	MB270 – 04 – 302A	1	/
78	Filter	WU – 100×180 – J	1	/
79	Filter Case	T300 – 04 – 201	1	/
80	Bolt	M12x70 GB5782 – 86	2	/
81	Washer	12 GB93 – 87	2	/
82	Spacer Block	T300 – 04 – 020	2	/
83	Bolt	M10x20 GB5783 – 86	4	/
84	Washer	10 GB93 – 87	4	/
85	Splash Cover	HCT600 – 04 – 025	1	/
86	Lower Housing	HCT600 – 04 – 103	1	Supply as a group with upper and rear housing
87	Pin	B16x50 GB118 – 86	2	/
88	Supporter	HC600 – 04 – 009	2	/
89	Washer	24 GB93 – 87	12	/
90	Bolt	M24x60 GB5783 – 86	12	/
91	Gasket	HC600 – 04 – 016	1	/
92	Seal Plug	HCT600 – 04 – 023	1	/
93	Holding Ring	HC600 – 01 – 011	1	/
94	Front Cover	HC600 – 04 – 014	1	/
95	Washer	12 GB93 – 87	8	/
96	Bolt	M12x45 GB5783 – 86	8	/
97	Gasket	HCT600A – 04 – 005	1	/
98	Bell Housing (1d)	HCT600A – 04 – 003X₁	1	/
99	Bell Housing (00#)	HCT600A – 04 – 003X₂	1	/
100	Bell Housing (0#)	HCT600A – 04 – 003X₃	1	/
101	Bell Housing (00#)	HCT600A – 04 – 003X₄	1	/
102	Bell Housing (0#)	HCT600A – 04 – 003X₅	1	/
103	Front Cover	HCT600A – 04 – 004	1	Use When No Bell Housing
104	Washer	12 GB93 – 87	16	/
105	Bolt	M12x45 GB5783 – 86	16	/
106	Screw	M6x12 GB67 – 85	2	/
107	Washer	6 GB93 – 87	2	/
108	Cover Plate	1601 – 0018	1	/
109	Regulating Plate	HCT600 – 04 – 012	0 – 3	Spec. φ220xφ259
110	Gasket	HCT600 – 04 – 013	1	/
111	Front Press Plate	HCT600 – 04 – 011	1	/
112	Gasket	HCT600 – 04 – 015	1	/
113	Front End Cover	HCT600 – 04 – 014	1	/
114	Washer	20 GB93 – 87	8	/
115	Bolt	M20x75 GB5783 – 86	8	/
116	Washer	10 GB93 – 87	8	/
117	Screw	M10x30 GB70 – 85	8	/
118	Front End Cover	HC600A – 02 – 002	1	/
119	Front Cover Gasket	HCT600A – 04 – 011	1	/
120	Front Cover Plate	HCT600A – 04 – 010	1	/
121	Washer	6 GB93 – 87	8	/
122	Bolt	M6×20 GB5783 – 86	8	/
123	Nameplate	100×100Q25 – 13	1	/
124	Rear Cover Gasket	HCT600A – 04 – 009	1	/
125	Rear Cover Plate	HCT600A – 04 – 008	1	/
126	Sprayer Group	HCT600A – 04 – 400	1	/
——END——

Item	Part Name	Part No.	Qty.	Remarks
1	Internal Toothed Ring	Q05 – 17X₁ – 02	1	/
2	External Toothed Ring	Q05 – 17X₁ – 01	1	/
3	Washer	20GB93 – 76	10	/
4	Bolt	M20×45GB5783 – 86	10	/
5	Toothed Rubber Block	Q26 – 06 – 03	48	/
——END——

No.	Part No.	Part Name	Qty.	Remarks
1	Q08 – 04 – 11	Inlet and Outlet Joint	2	/
2	GB5782 – 86	M8x20 Bolt	8	/
3	GB93 – 87	Washer 8	9	/
4	Q08 – 04 – 10	Gasket	2	/
5	Q08 – 04 – 01	Front Cover	1	/
6	Q20 – 23	Copper Washer 14	1	/
7	Q20 – 01	M14x1.5 Plug	1	/
8	GB6170 – 86	M10 Nut	16	/
9	GB93 – 87	Washer 10	16	/
10	Q08 – 04 – 02	Gasket	1	/
11	Q08 – 04 – 100	Cooler Assembly	1	/
12	Q08 – 04 – 03	Gasket	1	/
13	Q08 – 04 – 200	Case Assembly	1	/
14	Q08 – 04 – 09	Holddown Bolt	2	/
15	Q08 – 04 – 12	Coupling Sleeve	2	/
16	Q20 – 03	Copper Washer 27	2	/
17	Q08 – 04 – 08	Supporter	2	/
18	GB5782 – 86	M10x55 Bolt	6	/
19	GB5782 – 86	M10x50 Bolt	6	/
20	GB3452.1 – 82	“O” – ring 14.5×7	1	/
21	GB5782.1 – 86	M8x25 Bolt	1	/
22	Q08 – 04 – 07	Spelter	1	/
23	Q08 – 04 – 04	Rear Cover	1	/
24	Q08 – 04 – 05	Bottom Plate	1	/
25	Q08 – 04 – 06	Cover	1	/
——END——
