Advance HCD600A Marine Gearbox Parts

Oct 29, 2022 | 600 Series, 600 Over 1000kW | 0 comments

← Advance HCT600A Marine Gearbox Parts Advance HC600A Marine Gearbox Parts →

The speed input range of the Advance HCD600A marine gearbox is 1000-2100 RPM, with engine input power from 903 kW to 1029 kW. the center distance is 415 mm, the reduction ratio range is 4.18-5.71, the transmission capacity range is 0.43-0.49 kW/RPM, the rated propeller thrust is 90 KN, and the input shaft is in the train Opposite to the output shaft.
Advance HCD600A marine gearbox is composed of transmission shaft, output coupling, input coupling, oil pressure gauge, oil Filter, control system, oil pump and other important components.
Advance HCD600A marine gearboxes provides three types of control system which are push-pull flexible shaft, electric control and pneumatic control for customers to choose. To meet the different requirement of coupling with different engine brand and models, Advance HCD600A marine gearboxes provide different SAE size coupling and housing including SAE 00 0 1 Without, flywheel SAE 21 18 16 14 is available……
All of our Advance 600 series marine gearbox can provide CCS classification certificate, some of series can provide international classifications with extra costs which mainly including French BV, British LR, American ABS, Japanese NK , Norway DNV-GL, Russia RS, South Korea KR, Italy RINA and other classification societies.

Advantages Of Advance HCD600A Marine Gearbox Parts

Advanced design and sophisticated manufacturing to adapt to various harsh working conditions! High-strength parts, strong ability to work under heavy loads.
Cylinder block and cylinder head adopt integrated design. The occurrence of engine water leakage and oil leakage is prevented, and the parts are about 40% less than other similar engines. The failure rate is greatly reduced.
Using forged steel camshaft and crankshaft, high-strength cylinder block design, multiple parts cast on the cylinder block, high rigidity, high pressure resistance, good reliability, and longer service life.
The cylinder bore adopts a platform mesh honing design. The perfect geometric structure effectively prevents oil leakage, and the use of advanced technology such as new piston ring components and gasket crimping and molding reduces oil loss.
The five key systems of the electronically controlled engine are all developed by DCEC, and have been applied and verified in different fields around the world to ensure the excellent economy and reliability of the product.
By optimizing the control strategy and combining with the actual operating conditions of the equipment, the fuel economy can be further improved.

Technical Specifications

Gearbox Model:	HCD600A
Input Speed:	1000-2100 r / min
Power:	903-1029 kW@ 2100 RPM
Center Distance:	415 mm
Trans.Capacity:	0.43-0.49 kW / rpm
Reduction Ratio:	4.18-5.71
Rated Thrust:	90 kN
Dimension:	745 mm * 1214 mm * 1271 mm
Net Weight:	1550 kg
Lead Time:	15-30 Working Days
Payment Terms:	T/T ,L/C

Coming soon

Browser not compatible.

Search by Part No. or Part Name

Click Kit Name to Check Part List

No.	Part Name	Part No.	Qty.	Remarks
1	Bolt	M20×55GB5783 – 86	10	/
2	Washer	20GB93 – 87	10	/
3	Input Coupling	HC600A – 01 – 001	1	/
4	Splashing Pan	HC600 – 01 – 002	1	/
5	Bearing	6224 GB/T276 – 94	1	/
6	Snap Ring	120 GB894.1 – 86	1	/
7	Holding Ring	HC600 – 01 – 011	1	/
8	Trimmer	HC600 – 04 – 022	1-3	Spec. φ216×φ239
9	Bearing	30322 GB/T297 – 94	2	7322E Old Type
10	Pinion	HC600 – 01 – 003/22	1	HC600A i = 3 For HCD600A i = 4.18
11	Pinion	HC600 – 01 – 003/21	1	HCD600A i = 4.43 For HCT600A i = 6
12	Pinion	HC600 – 01 – 003/20	1	HCD600A i = 4.7 For HCT600A i = 6.5
13	Pinion	HC600 – 01 – 003/19	1	HC600A i = 3.5 For HCD600A i = 5 For HCT600A i = 7, 8
14	Pinion	HC600 – 01 – 003/18	1	HCD600A i = 5.44 For HCT600A i = 7.5, 8.66
15	Pinion	HC600 – 01 – 003/17	1	“HCD600A i = 5.71 For HCT600A i = 9.35”
16	Clutch Bracket	HC600 – 01 – 005	1	/
17	Spacer	HC600 – 01 – 014	1	/
18	Snap Ring	100 GB894.1 – 86	1	/
19	Bolt Plug	HC600 – 01 – 016	1	/
20	Input Shaft	HC600 – 01 – 004	1	/
21	Snap Ring	HC600 – 01 – 006	1	/
22	Thrust Plate	HC600 – 01 – 007	1	/
23	Internal Disc	MB450 – 01 – 014	9	/
24	External Disc	MB450 – 01 – 013	8	/
25	Single – face Ex. Disc	HC600 – 01 – 018	1	/
26	Spring Carrier	HC600A – 01 – 007	1	/
27	Spring	HC600A – 01 – 009A	16	/
28	Piston	HC600A – 01 – 006A	1	/
29	Piston Ring	HC600 – 01 – 009	1	/
30	Right – hand Transmission Gear	HC600A – 01 – 005	1	/
31	Copper Washer	14 Q20 – 03	3	/
32	Bolt	M14×20GB5783 – 86	3	/
33	Bearing	NJ224E GB/T283 – 94	1	/
34	Sealing Ring	HC600 – 01 – 013	2	/
35	Nut	HC600 – 01 – 017	1	/
——END——

No.	Part Name	Part No.	Qty.	Remarks
1	Bolt	M12×40GB5783 – 86	8	/
2	Washer	12GB93 – 87	8	/
3	Shaft End Pressure Plate	HC600A – 02 – 001	1	/
4	Bearing	6224 GB/T276 – 94	1	/
5	Bearing Bracket	HC600A – 02 – 003	1	/
6	Snap Ring	HC600 – 01 – 011	1	/
7	Adjusting Ring	HC600 – 04 – 022	0-3	Spec. φ216×φ239
8	Bearing	30322 GB/T297 – 94	2	7322E Old Type
9	Pinion	HC600 – 01 – 003/22	1	HC600A i = 3 For HCD600A i = 4.18
10	Pinion	HC600 – 01 – 003/21	1	HCD600A i = 4.43 For HCT600A i = 6
11	Pinion	HC600 – 01 – 003/20	1	HCD600A i = 4.7 For HCT600A i = 6.5
12	Pinion	HC600 – 01 – 003/19	1	HC600A i = 3.5 For HCD600A i = 5 For HCT600A i = 7, 8
13	Pinion	HC600 – 01 – 003/18	1	HCD600A i = 5.44 For HCT600A i = 7.5, 8.66
14	Pinion	HC600 – 01 – 003/17	1	HCD600A i = 5.71 For HCT600A i = 9.35
15	Clutch Bracket	HC600 – 01 – 005	1	/
16	Spacer	HC600 – 01 – 014	1	/
17	Snap Ring	100 GB894.1 – 86	1	/
18	Transmission Shaft	HC600A – 02 – 004	1	/
19	Snap Ring	HC600 – 01 – 006	1	/
20	Thrust Plate	HC600 – 01 – 007	1	/
21	Internal Disc	MB450 – 01 – 014	9	/
22	External Disc	MB450 – 01 – 013	8	/
23	Single – face Ex. Disc	HC600 – 01 – 018	1	/
24	Spring Carrier	HC600A – 01 – 007	1	/
25	Spring	HC600A – 01 – 009A	16	/
26	Piston	HC600A – 01 – 006A	1	/
27	Piston Ring	HC600 – 01 – 009	1	/
28	Left – hand Transmission Gear	HC600A – 02 – 005	1	/
29	Copper Washer	Q20 – 03	3	/
30	Bolt	M14×20GB5783 – 86	3	/
31	Bearing	NJ224E GB/T283 – 94	1	/
32	Sealing Ring	HC600 – 01 – 013	2	/
33	Nut	HC600 – 01 – 017	1	/
——END——

No.	Part Name	Part No.	Qty.	Remarks
1	Bearing	NJ2224 GB/T283 – 94	1	/
2	Driven Gear	HC600 – 03 – 102/58	1	i = 2:1
3	Driven Gear	HC600 – 03 – 102/62	1	i = 2.5:1
4	Driven Gear	HC600 – 03 – 102/66	1	i = 3:1
5	Driven Gear	HC600 – 03 – 102/68	1	i = 3.5:1
6	Driven Gear	HC600 – 03 – 102/70	1	i = 4:1
7	Driven Gear	HCD600 – 03 – 102/92	1	i = 4.18:1
8	Driven Gear	HCD600 – 03 – 102/93	1	i = 4.43:1
9	Driven Gear	HCD600 – 03 – 102/94	1	i = 4.7:1
10	Driven Gear	HCD600 – 03 – 102/95	1	i = 5.0:1
11	Driven Gear	HCD600 – 03 – 102/98	1	i = 5.44:1
12	Driven Gear	HCD600 – 03 – 102/97	1	i = 5.71:1
13	Output Shaft	HC600 – 03 – 101	1	/
14	Spacer	HC600 – 03 – 001	1	/
15	Bearing	32228 GB/T297 – 94	2	/
16	Output Coupling	HC600 – 03 – 002	1	/
17	O – ring	φ128×5.3 GB3452.1 – 92	1	/
18	Plate	MB450 – 03 – 002	1	/
19	Lock Plate	MB450 – 03 – 006	1	/
20	Bolt	M24×45 GB5783 – 86	3	/
——END——

No.	Part Name	Part No.	Qty.	Remarks
1	Bearing	NJ2224 GB/T283 – 94	1	/
2	Driven Gear	HC600 – 03 – 102/58	1	i = 2:1
3	Driven Gear	HC600 – 03 – 102/62	1	i = 2.5:1
4	Driven Gear	HC600 – 03 – 102/66	1	i = 3:1
5	Driven Gear	HC600 – 03 – 102/68	1	i = 3.5:1
6	Driven Gear	HC600 – 03 – 102/70	1	i = 4:1
7	Driven Gear	HCD600 – 03 – 102/92	1	i = 4.18:1
8	Driven Gear	HCD600 – 03 – 102/93	1	i = 4.43:1
9	Driven Gear	HCD600 – 03 – 102/94	1	i = 4.7:1
10	Driven Gear	HCD600 – 03 – 102/95	1	i = 5.0:1
11	Driven Gear	HCD600 – 03 – 102/98	1	i = 5.44:1
12	Driven Gear	HCD600 – 03 – 102/97	1	i = 5.71:1
13	Output Shaft	HC600 – 03 – 101	1	/
14	Spacer	HC600 – 03 – 001	1	/
15	Bearing	32228 GB/T297 – 94	2	/
16	Output Coupling	HC600 – 03 – 002	1	/
17	O – ring	φ128×5.3 GB3452.1 – 92	1	/
18	Plate	MB450 – 03 – 002	1	/
19	Lock Plate	MB450 – 03 – 006	1	/
20	Bolt	M24×45 GB5783 – 86	3	/
——END——

No.	Part Name	Part No.	Qty.	Remarks
1	Bolt	M12×45 GB5783 – 86	16	/
2	Washer	12 GB93 – 87	16	/
3	Rear End Cover	HC600A – 04 – 003	1	/
4	Plug	φ10 Q21 – 38	4	/
5	O – ring	16×2.4 GB1235 – 76	4	/
6	Gasket	HC600 – 04 – 028	1	/
7	Distribute Bush	HC600 – 04 – 029	2	/
8	Screw	M6×14 GB68 – 85	6	/
9	Upper Gasket	HC600 – 04 – 002	1	/
10	Inlet Board	HC600 – 04 – 004	1	Use When Manual Controlling
11	Inlet Board	HC600 – 04 – 004X1	1	Use astern as ahead
12	Inlet Board	HCD600 – 04 – 004	1	Use When Electromagnetic Controlling
13	Lubrication Valve	HC600 – 04 – 033	1	/
14	Spring	1.4×10×35 GB2089 – 80	1	/
15	Copper Washer	20 Q20 – 03	1	/
16	Bolt	HC600 – 04 – 034	1	/
17	Lower Gasket	HC600 – 04 – 003	1	/
18	Rear Housing Cover	HCD600A – 04 – 103	1	upply as a group with upper and lower housings
19	Gasket	HCD600 – 04 – 024	1	/
20	Sprayer Group	HC600A – 04 – 200	1	/
21	Oil Pump	BB – B63A – 2	1	/
22	Oil Pump Gasket	HC600 – 04 – 007	1	/
23	Connecting Plate	HC600 – 04 – 032	1	/
24	Bolt	M8×50 GB5783 – 86	4	/
25	Washer	8 GB93 – 87	8	/
26	Bolt	M8×25 GB5783 – 86	4	/
27	Gasket	HC600 – 04 – 031	1	/
28	Screw	M6×10 GB73 – 85	1	/
29	Pump Coupling	HC600 – 04 – 030	1	/
30	Rear End Cover	HC600A – 04 – 002	1	/
31	Gasket	HC600 – 04 – 027	1	/
32	Bolt	M12×45 GB5783 – 86	13	/
33	Washer	12 GB93 – 87	14	/
34	Pin	B16×50 GB118 – 86	2	/
35	Bolt	M16×60 GB5782 – 86	8	/
36	Washer	16 GB93 – 87	8	/
37	Rear End Cover	HCD600 – 04 – 020	1	/
38	Gasket	HCD600 – 04 – 021	1	/
39	Oil Cup	M10×1 GB1152 – 79	1	/
40	Regulating Plate	HC600 – 04 – 022	1-2	Spec. φ226×φ249
41	Drain Plug	M22 Q21 – 15	1	/
42	Copper Washer	22 Q20 – 03	1	/
43	Bolt	M8×25 GB5783 – 86	2	/
44	Washer	8 GB93 – 87	2	/
45	Suction Pipe Flange	T300 – 04 – 016	1	/
46	Filter Gasket	300 – 04 – 204	1	/
47	Hexigon Screw	M8×60 GB70 – 85	2	/
48	Upper Housing	HCD600A – 04 – 101	1	Supply as a group with lower housing and rear housing
49	Breather Cover	MB450 – 04 – 501	1	/
50	Breather Stem	MB450 – 04 – 503	2	/
51	Breather Carrier	MB450 – 04 – 502	1	/
52	Bolt	M8×30 GB5783 – 86	4	/
53	Washer	8 GB93 – 87	4	/
54	Bolt	M8×25 GB5783 – 86	12	/
55	Washer	8 GB93 – 87	12	/
56	Cover Plate	HC600 – 04 – 005	1	/
57	Gasket	HC600 – 04 – 006	1	/
58	Bolt	M8×25 GB5783 – 86	4	/
59	Washer	8 GB93 – 87	4	/
60	Strainer Cover	T300 – 04 – 022	1	/
61	Gasket	MB270 – 04 – 302A	1	/
62	Filter	WU – 100×180 – J	1	/
63	Filter Case	T300 – 04 – 021	1	/
64	Bolt	M12×70 GB5782 – 86	2	/
65	Washer	12 GB93 – 87	2	/
66	Spacer Block	HCT600 – 04 – 010	2	/
67	Steering Plate	Q25 – 06	1	/
68	Rivet	2×6 GB827 – 86	6	/
69	Straight Pin	3×20 GB119 – 86	1	/
70	Dipstick Handle	135 – 04 – 601	1	/
71	O – ring	16×2.4 GB1235 – 76	1	/
72	Dipstick	HCD320 – 04 – 201	1	/
73	Eye Screw	M24 GB825 – 88	1	/
74	Splash Cover	HCD600 – 04 – 010	1	/
75	Bolt	M10×20 GB5783 – 86	4	/
76	Washer	10 GB93 – 87	4	/
77	Pin	B16×50 GB118 – 86	2	/
78	Lower Housing	HCD600 – 04 – 102	1	Supply as a group with upper housing and rear housing
79	Washer	24 GB93 – 87	4	/
80	Bolt	M24×180 GB5782 – 86	4	/
81	Washer	20 GB93 – 87	18	/
82	Bolt	M20×75 GB5782 – 86	18	/
83	Case Gasket	HCD600 – 04 – 018	1	/
84	Holding Ring	HC600 – 01 – 011	1	/
85	Front Cover	HC600A – 01 – 002	1	/
86	Washer	12 GB93 – 87	21	/
87	Bolt	M12×55 GB5783 – 86	8	/
88	Screw	M6×12 GB67 – 76	2	/
89	Washer	6 GB93 – 87	2	/
90	Cover Plate	1601 – 0018	1	/
91	Bell Housing (00#)	HCD600A – 04 – 001X₅	1	For SAE 21″ flywheel
92	Bell Housing (0#)	HCD600A – 04 – 001X₁	1	For SAE 16″/18″ flywheel
93	Bell Housing (1d)	HCD600A – 04 – 001X₂	1	/
94	Bell Housing (00#)	HCD600A – 04 – 001X₃	1	For SAE 16″/18″ flywheel
95	Bell Housing (0#)	HCD600A – 04 – 001X₄	1	For SAE 14″ flywheel
96	Bell Housing (00#)	HCD600A – 04 – 001X₅	1	For SAE 21″ flywheel
97	Front Cover Gasket	HC600 – 04 – 012	1	/
98	Front Cover	HC600 – 04 – 011	1	/
99	Washer	12 GB93 – 87	8	/
100	Bolt	M12×35 GB5783 – 86	8	/
101	Supporter	HC600 – 04 – 009	2	/
102	Washer	24 GB93 – 87	12	/
103	Bolt	M24×65 GB5783 – 86	12	/
104	Bolt	M12×55 GB70 – 85	1	/
105	Pin	HC600 – 04 – 001	1	/
106	Cased Seal	PD170×200×16 JB2600 – 80	2	/
107	Front End Cover	HC600A – 02 – 002	1	/
108	Front Cover Gasket	HCT500A – 04 – 011	1	/
109	Front Cover Plate	HCT600A – 04 – 010	1	/
110	Washer	6GB93 – 87	8	/
111	Bolt	M6×20GB5783 – 86	8	/
112	Nameplate	100×100Q25 – 13	1	/
——END——

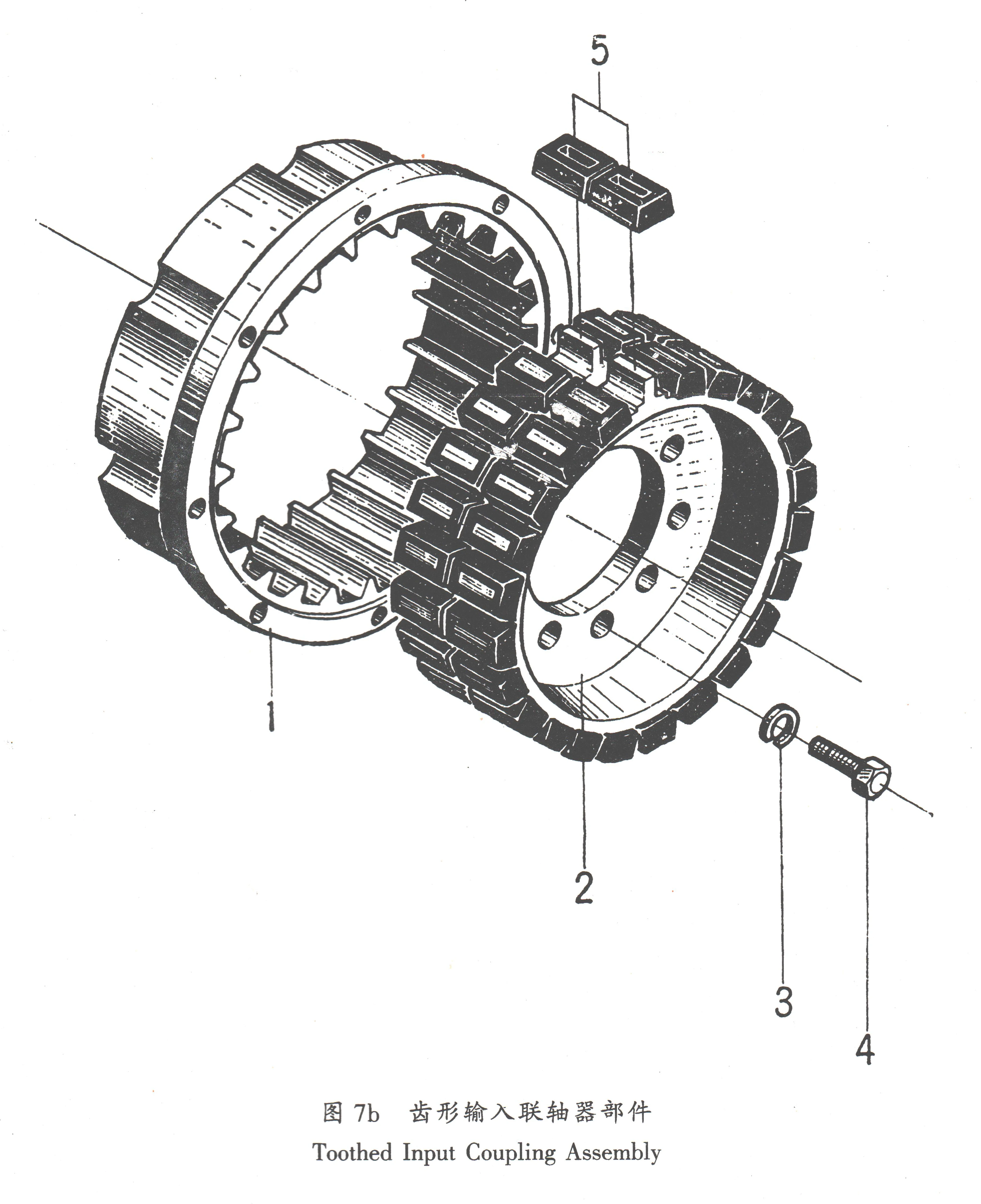

No.	Part Name	Part No.	Qty.	Remarks
1	Internal Toothed Ring	Q05 – 17X₁ – 02	1	/
2	External Toothed Ring	Q05 – 17X₁ – 01	1	/
3	Washer	20GB93 – 76	10	/
4	Bolt	M20×45GB5783 – 86	10	/
5	Toothed Rubber Block	Q26 – 06 – 03	48	/
——END——

No.	Part No.	Part Name	Qty.	Remarks
1	Q08 – 04 – 11	Inlet and Outlet Joint	2	/
2	GB5782 – 86	M8x20 Bolt	8	/
3	GB93 – 87	Washer 8	9	/
4	Q08 – 04 – 10	Gasket	2	/
5	Q08 – 04 – 01	Front Cover	1	/
6	Q20 – 23	Copper Washer 14	1	/
7	Q20 – 01	M14x1.5 Plug	1	/
8	GB6170 – 86	M10 Nut	16	/
9	GB93 – 87	Washer 10	16	/
10	Q08 – 04 – 02	Gasket	1	/
11	Q08 – 04 – 100	Cooler Assembly	1	/
12	Q08 – 04 – 03	Gasket	1	/
13	Q08 – 04 – 200	Case Assembly	1	/
14	Q08 – 04 – 09	Holddown Bolt	2	/
15	Q08 – 04 – 12	Coupling Sleeve	2	/
16	Q20 – 03	Copper Washer 27	2	/
17	Q08 – 04 – 08	Supporter	2	/
18	GB5782 – 86	M10x55 Bolt	6	/
19	GB5782 – 86	M10x50 Bolt	6	/
20	GB3452.1 – 82	“O” – ring 14.5×7	1	/
21	GB5782.1 – 86	M8x25 Bolt	1	/
22	Q08 – 04 – 07	Spelter	1	/
23	Q08 – 04 – 04	Rear Cover	1	/
24	Q08 – 04 – 05	Bottom Plate	1	/
25	Q08 – 04 – 06	Cover	1	/
——END——
