The speed input range of the Advance MA100 marine gearbox is 1500-3000 RPM, with engine input power from 12.6 kW to 18.9 kW. the center distance is 100 mm, the reduction ratio range is 1.60-3.88, the transmission capacity range is 0.006-0.09 kW/RPM, the rated propeller thrust is 3 KN, and the input shaft is in the train Opposite to the output shaft.

Advance MA100 marine gearbox is composed of transmission shaft, output coupling, input coupling, oil pressure gauge, oil Filter, control system, oil pump and other important components.

Advance MA100 marine gearboxes provides of control system which are push-pull flexible shaft, To meet the different requirement of coupling with different engine brand and models, Advance MA100 marine gearboxes provide different SAE size coupling and housing including SAE 3 4 5, flywheel SAE 11.5 10 7.5 is available……

All of our Advance MA series marine gearbox can provide CCS classification certificate, some of series can provide international classifications with extra costs which mainly including French BV, British LR, American ABS, Japanese NK , Norway DNV-GL, Russia RS, South Korea KR, Italy RINA and other classification societies.

Advantages Of Advance MA100 Marine Gearbox Parts

It has the functions of reversing, clutching, and deceleration, and can be matched with various marine diesel engines with equivalent torque to form a unit. Applicable to all kinds of medium and small ships.
The gearbox has a compact structure and can be controlled by a variety of control methods. The operation is light and sensitive, and it can be operated from a distance, which is convenient for driving and machine integration.
The advanced design makes the connection of the gearbox very soft, easy to maintain, more durable, and has the characteristics of large transmission power, small size and light weight.
The toothed elastic input coupling and connection cover can be matched with various flywheels and flywheel shells to connect with the host, easy installation and beautiful appearance
With excellent deceleration effect and strong bearing propeller thrust
Professional gearbox specialists and after-sales service, spare parts directly available from stock.

Technical Specifications

Gearbox Model:	MA100
Input Speed:	1500 – 3000 RPM
Power:	58.8 kW @ 2000 RPM
Center Distance:	100 mm
Trans.Capacity:	0.009 0.007 0.006 kW / RPM
Reduction Ratio:	1.6 2 2.55 3.11 3.59 3.88
Rated Thrust:	3 kN
Dimension:	236 mm * 390 mm * 420 mm
Net Weight:	75 kg
Lead Time:	15-30 Working Days
Payment Terms:	T/T ,L/C

This is a commemorative picture of the EMAC event.

Browser not compatible.

Search by Part No. or Part Name

Click Kit Name to Check Part List

No.	Part Name	Part No.	Qty.	Remarks
1	Plug	100 – 01 – 008	1	/
2	Internal toothed ring	Q05 – 10 – 03	1	/
3	Internal toothed ring	Q05 – 10 – 04	1	/
4	Internal toothed ring	Q05 – 10 – 05	1	/
5	External toothed ring	Q05 – 10 – 01	1	/
6	Rubber transmission plate assembly	100 – 06 – 000X1	1	/
7	Toothed rubber block	Q26 – 06 – 01	10	/
8	Input flange	100 – 01 – 002A	1	/
9	Oil seal	SPD 45×62×8 HG 4 – 692 – 67	1	/
10	Front cover	100 – 01 – 001A	1	/
11	Bearing	108GB276 – 82	2	/
12	Snap ring (for shaft)	35GB894 – 76	1	/
13	Snap ring (for shaft)	40GB894 – 76	1	/
14	Snap ring (for hole)	68GB893 – 76	1	/
15	Washer	8GB93 – 76	8	/
16	Bolt	M8×25GB21 – 76	8	/
17	Stop ring for bearing	80GB305 – 82	2	/
18	Bearing	50307GB277 – 82	1	/
19	Pinion	100 – 01 – 201/1.5	1	/
20	Pinion	100 – 01 – 201/2	1	/
21	Pinion	100 – 01 – 201/2.5	1	/
22	Pinion	100 – 01 – 201/3	1	/
23	Pinion	100 – 01 – 201/3.5	1	/
24	Pinion	100 – 01 – 201/4	1	/
25	Spacer	100 – 01 – 203	1	/
26	Bearing	110GB276 – 82	1	/
27	Snap ring (for shaft)	50GB894 – 76	1	/
28	Clutch bracket	100 – 01 – 202	1	/
29	Snap ring (for hole)	90GB893 – 76	1	/
30	Thrust plate	100 – 01 – 003	1	/
31	External disc	100 – 01 – 009	6	/
32	Internal disc	100 – 01 – 010	5	/
33	Snap ring (for shaft)	26GB894 – 76	1	/
34	Snap ring	100 – 01 – 011	1	/
35	Return spring	100 – 01 – 007	1	/
36	Piston	100 – 01 – 005	1	/
37	Piston ring	100 – 01 – 004	1	/
38	Screw	M8×10GB77 – 76	2	/
39	Transmission gear	100 – 01 – 012	1	/
40	Bearing	50110GB277 – 82	1	/
41	Snap ring (for shaft)	50GB894 – 76	1	/
42	Input shaft	100 – 01 – 0101	1	/
43	Dividing oil plug	100 – 01 – 0103	1	/
44	Seal ring	100 – 01 – 0006	2	/
45	Copper washer	100 – 01 – 0104	1	/
——END——

No.	Part Name	Part No.	Qty.	Remarks
1	Bearing	100 – 02 – 002	1	/
2	Dished spring	100 – 02 – 003	1	/
3	Bearing housing	100 – 02 – 001	1	/
4	Snap ring (for shaft)	35GB894 – 76	1	/
5	Stop ring for bearing	80GB305 – 82	2	/
6	Bearing	50307GB277 – 82	1	/
7	Pinion	100 – 01 – 201/1.5	1	for ratio 1.5 Z=30
8	Pinion	100 – 01 – 201/2	1	for ratio 2 Z=26
9	Pinion	100 – 01 – 201/2.5	1	for ratio 2.5 Z=22
10	Pinion	100 – 01 – 201/3	1	for ratio 3 Z=19
11	Pinion	100 – 01 – 201/3.5	1	for ratio 3.5 Z=17
12	Pinion	100 – 01 – 201/4	1	for ratio 4 Z=16
13	Spacer	100 – 01 – 203	1	/
14	Bearing	110GB276 – 82	1	/
15	Snap ring (for shaft)	50GB894 – 76	1	/
16	Clutch bracket	100 – 01 – 202	1	/
17	Snap ring (for hole)	90GB893 – 76	1	/
18	Trust plate	100 – 01 – 003	1	/
19	External disc	100 – 01 – 009	6	/
20	Internal disc	100 – 01 – 010	5	/
21	Screw	M8x10GB77 – 76	2	/
22	Snap ring (for shaft)	26GB894 – 76	1	/
23	Spacer	100 – 01 – 011	1	/
24	Return spring	100 – 01 – 007	1	/
25	Piston	100 – 01 – 005	1	/
26	Piston ring	100 – 01 – 004	1	/
27	Transmission gear	100 – 02 – 0102	1	/
28	Bearing	50110GB277 – 82	1	/
29	Snap ring (for shaft)	50GB894 – 76	1	/
30	Transmission shaft	100 – 02 – 0101	1	/
31	Dividing oil plug	100 – 01 – 0103	1	/
32	Seal ring	100 – 01 – 0006	2	/
33	Copper washer	100 – 01 – 0104	1	/
34	Coupling for oil pump	100 – 02 – 005	1	/
35	Oil pump bracket	100 – 02 – 004	1	/
36	Oil pump gasket	125 – 04 – 016	1	/
37	Oil pump	BB – B6D	1	/
38	Oil pipe assembly	Q06 – 01A – 200	1	/
39	Connector	14×1.5 Q21 – 19	6	/
40	Connector	14×1.5 Q21 – 20	1	/
41	Copper washer	14Q20 – 03	16	/
42	Lubricating pipe	100 – 00 – 200	1	/
——END——

No.	Part Name	Part No.	Qty.	Remarks
1	Nut	M33x1.5GB812 – 76	1	/
2	Lock washer	33GB858 – 76	1	/
3	Stop ring for bearing	80GB305 – 82	1	/
4	Bearing	50307GB277 – 82	1	/
5	Spacer	100 – 01 – 203	1	/
6	Driven gear	100 – 03 – 002/1.5	1	for ratio 1.5 Z=48
7	Driven gear	100 – 03 – 002/2	1	for ratio 2 Z=52
8	Driven gear	100 – 03 – 002/2.5	1	for ratio 2.5 Z=56
9	Driven gear	100 – 03 – 002/3	1	for ratio 3 Z=59
10	Driven gear	100 – 03 – 002/3.5	1	for ratio 3.5 Z=61
11	Driven gear	100 – 03 – 002/4	1	for ratio 4 Z=62
12	Stop ring for bearing	40GB305 – 82	1	/
13	Snap ring (for shaft)	50GB894 – 76	1	/
14	Bearing	2108GB283 – 81	1	/
15	Oil seal	SD45x68x12	1	/
16	Key	12x35GB1096 – 79	1	/
17	Nut	M10GB52 – 76	6	/
18	Spring washer	10GB93 – 76	6	/
19	Output shaft	100 – 03 – 001	1	/
20	Companion – coupling	100 – 03 – 003X1	1	/
21	Bolt	M10x40GB27 – 76	6	/
——END——

No.	Part Name	Part No.	Qty.	Remarks
1	Front cover	100 – 04 – 011	1	for no bell housing
2	Bell housing	100 – 04 – 011X1 100 – 04 – 011X2 100 – 04 – 011X	1	SAE No3 SAE No5 SAE No4 According to order selection
3	Cover	0601A – 0018	1	/
4	Spring washer	6GB93 – 76	2	/
5	Screw	M6x10GB67 – 76	2	/
6	Dipstick	100 – 04 – 240	1	/
7	Supporter	100 – 04 – 013	2	/
8	Rivet	2x4GB827 – 76	4	/
9	Name plate	Q25 – 01 – 01	1	/
10	Housing	100 – 04 – 100	1	/
11	Washer	B8GB97 – 76	12	/
12	Bolt	M8x50GB30 – 76	16	/
13	Gasket	100 – 04 – 004	1	/
14	Gasket	100 – 04 – 005A	1	/
15	Plug	φ7Q21 – 25	2	/
16	Gasket	100 – 04 – 007	1	/
17	End cover	100 – 04 – 006 100 – 04 – 006X1	1	for P. T. O
18	Plug	Q06 – 03 – 15	2	/
19	Spring washer	8GB93 – 76	36	/
20	Bolt	M8x35GB30 – 76	2	/
21	Bolt	M8x25GB30 – 76	27	/
22	Gasket	100 – 04 – 008A	1	/
23	Bolt	M8x12GB30 – 76	6	/
24	Pin	8x25GB118 – 76	2	/
25	Side cover	100 – 04 – 003	1	/
26	Gasket	100 – 04 – 001	1	/
27	Bolt	M10x25GB30 – 76	6	/
28	Spring washer	10GB93 – 76	6	/
29	Bottom cover	100 – 04 – 014Bx	1	Flat type with X, optional, for i<3:1
30	Bottom cover	100 – 04 – 014B	1	/
31	Gasket	100 – 04 – 009	1	/
32	Screw	M625GB75 – 76	1	/
33	Nut	M6GB52 – 76	1	/
34	Copper washer	22Q20 – 03	1	/
35	Drain plug	Q21 – 15	1	/
36	Shroud	125 – 04 – 006	1	/
37	Washer	100 – 04 – 010	1	/
38	Shim	100 – 04 – 015	0 – 2	/
39	Gasket	100 – 04 – 012	1	for no bell housing
40	Gasket	100 – 04 – 012X1	1	/
41	Welding assembly of filter	100 – 05 – 105	1	4 parts welded into one as integral
42	Welding assembly of filter	100 – 05 – 101	1	/
43	Welding assembly of filter	100 – 05 – 102	1	/
44	Welding assembly of filter	125-04-301	1	/
45	Copper washer	Q21 – 03	2	/
46	Suction pipe	125 – 04 – 302	1	/
47	Connector	Q21 – 19	1	/
——END——

No.	Part Name	Part No.	Qty.	Remarks
1	Handle	Q06 – 03 – 13	1	/
2	Pipe connector	100 – 00 – 003	1	/
3	Bolt	Q21 – 19	1	/
4	Copper washer	14Q20 – 03	1	/
5	Bolt	M6x15GB30 – 76	1	/
6	Front cover	Q06 – 03 – 05	1	/
7	Gasket	Q06 – 03 – 06	1	/
8	Valve body	Q06 – 03 – 01	1	/
9	Spring seat	Q06 – 03 – 14	1	/
10	Spring	0.8x6x20 JB272 – 60	1	/
11	Steel ball	6GB308 – 77	1	/
12	Plug	φ7Q21 – 14	2	/
13	Plug	Q06 – 03 – 15	4	/
14	Pin	4x10GB879 – 76	1	/
15	Shifting valve	Q06 – 03 – 02	1	/
16	Control valve	Q06 – 03 – 12	1	/
17	Overflow valve	Q06 – 03 – 10	2	/
18	Spring	Q06 – 03 – 11	1	/
19	Spring	Q06 – 03 – 09	1	/
20	Washer	B8GB97 – 76	0 – 2	/
21	Delay valve	Q06 – 03 – 08	1	/
22	Rear cover	Q06 – 03 – 03	1	/
23	Bolt	M6x12GB70 – 76	12	/
24	Nut	M6GB54 – 76	1	/
25	Bolt	M6x15GB30 – 76	1	/
26	Gasket	Q06 – 03 – 04	1	/
27	Spring	0.5x7x50 JB272 – 60	1	/
28	Steel ball	8GB308 – 77	1	/
29	Valve seat	Q06 – 03 – 07	1	/
——END——

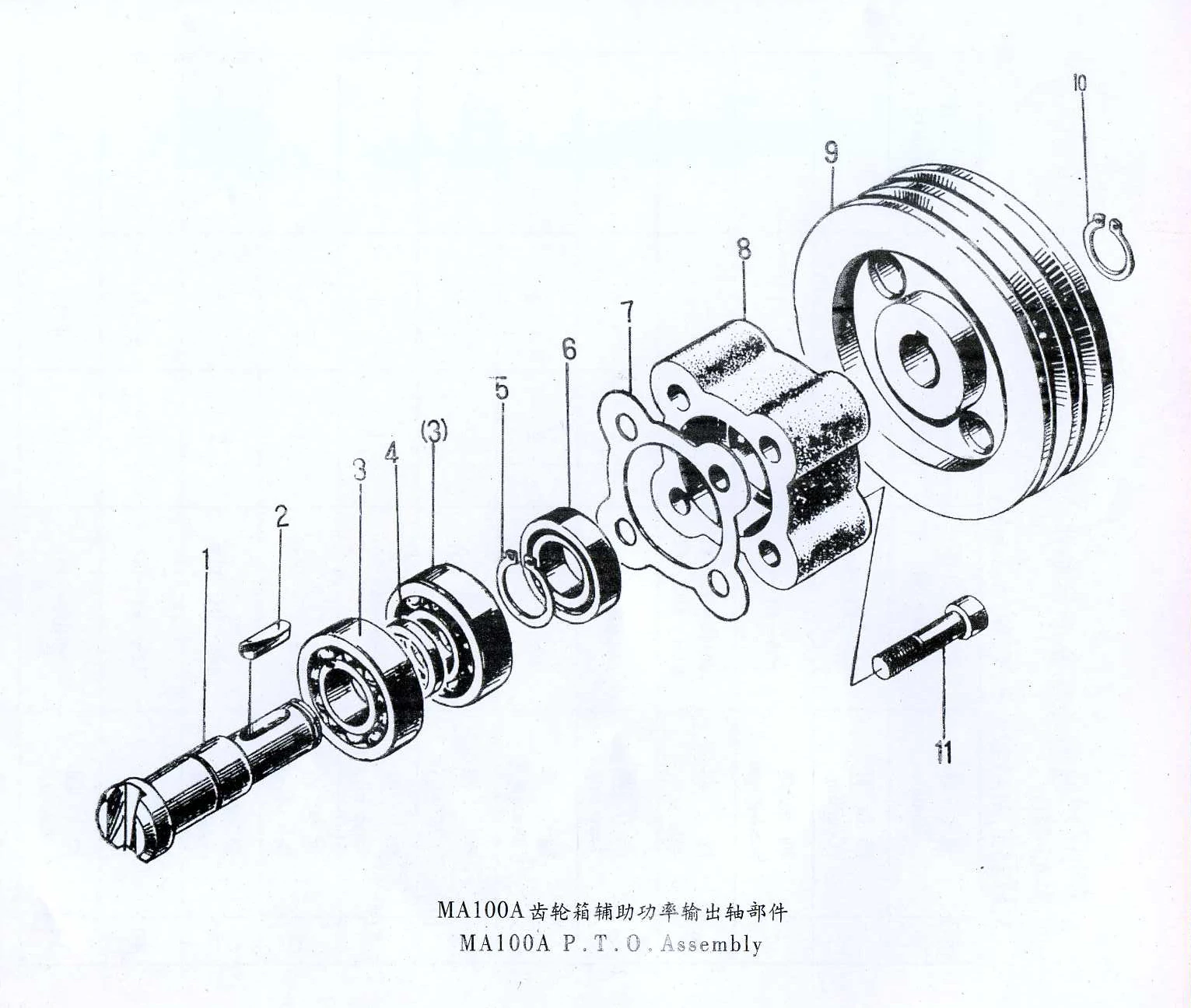

No.	Part Name	Part No.	Qty.	Remarks
1	Output Shaft	100 – F1 – 002	1	/
2	Key	5x20GB1096 – 79	1	/
3	Bearing	104GB276 – 82	2	/
4	Spacer	100 – F1 – 005	1	/
5	Spring ring	20GB894 – 76	1	/
6	Oil seal	PG20x35x10	1	/
7	Gasket	100 – F1 – 004	1	/
8	Bearing seat	100 – F1 – 001	1	/
9	Belt wheel	100 – F1 – 003	1	/
10	Snap ring	18GB894 – 76	1	/
11	Bolt	M8x45GB70 – 76	4	/
——END——

No.	Part Name	Part No.	Qty.	Remarks
1	Connector screw	Q21 – 19	2	/
2	Washer	22Q20 – 03	4	/
3	Flange	Q08 – 03 – 06	2	/
4	Washer	8GB93 – 76	4	/
5	Bolt	M8×20GB30 – 76	4	/
6	End cover	Q08 – 03 – 01	2	/
7	“O” ring	Q08 – 03 – 02	2	/
8	Cooling tube assembly	Q08 – 03 – 100	1	/
9	Connecting plate	Q08 – 03 – 04	1	/
10	Bolt	M6 25GB30 – 76	4	/
11	Washer	6GB93 – 76	8	/
12	Housing	Q08 – 03 – 03	1	/
13	Bolt	M6×40GB900 – 76	8	/
——END——
